Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Resolution :
320x240
Supply Voltage :
3.3V
Product Name :
320x240 LCD TFT And IPS LCD Display 3.5 Inch With Touch Module
Color :
Color
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Operating Temperature :
-20°C to 70°C
Viewing Angle :
All
Interface :
54Pin, 24 BIT RGB
Display Type :
3.5Inch TFT LCD Display
Model Number :
KWH035ST50-C01
MOQ :
1 piece
Dimensions :
77.00mm x 64.25mm x 4.50mm
Place of Origin :
China
Touch Screen :
With capacitive touch panel
Controller Ic :
HX8238D
Payment Terms :
T/T, L/C, Credit card, Cash
Display Size :
3.5-inch
Packaging Details :
Tray + Inner Box + Carton
Description

320x240 LCD TFT And IPS LCD Display 3.5 Inch With Touch Module

Capacitive 320x240 3.5 Inch LCD Display TFT IPS LCD Touch Screen Module

Product Name 320x240 LCD TFT And IPS LCD Display 3.5 Inch With Touch Module
LCD Size 3.5 Inch TFT LCD Display Module
Display Mode IPS
Resolution 320x240
Outline Dimension (mm) 77.00x64.25x4.50
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction All
Interface 24 Bit RGB Interface, 54 Pin
Driver IC HX8238D
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 20mA 19.2V
Touch Screen With Capacitive Touch Panel

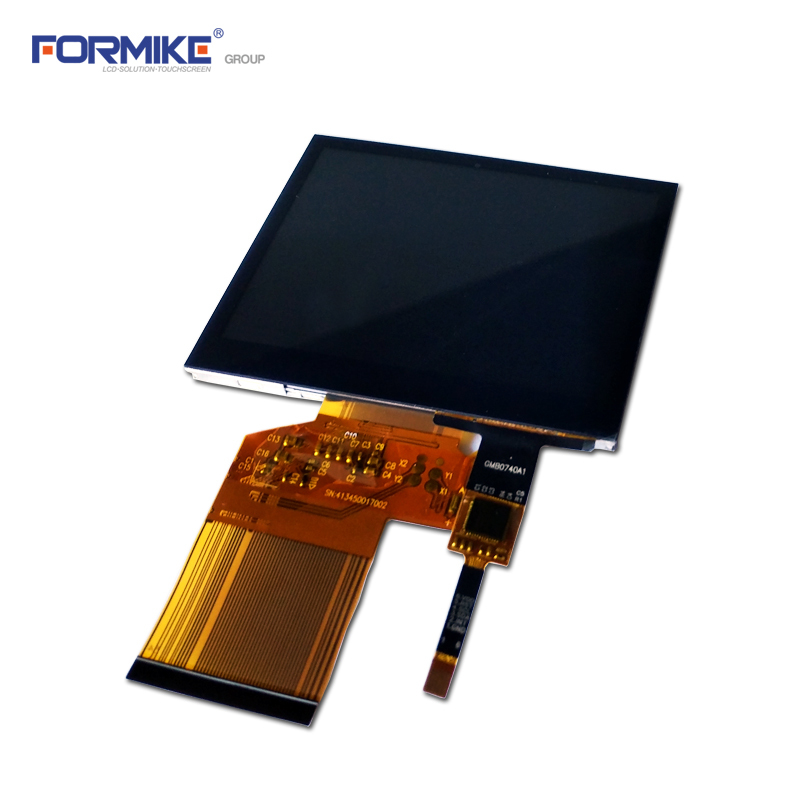

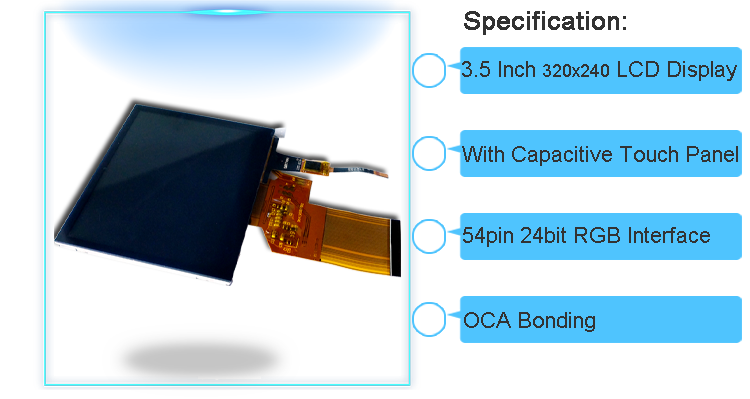

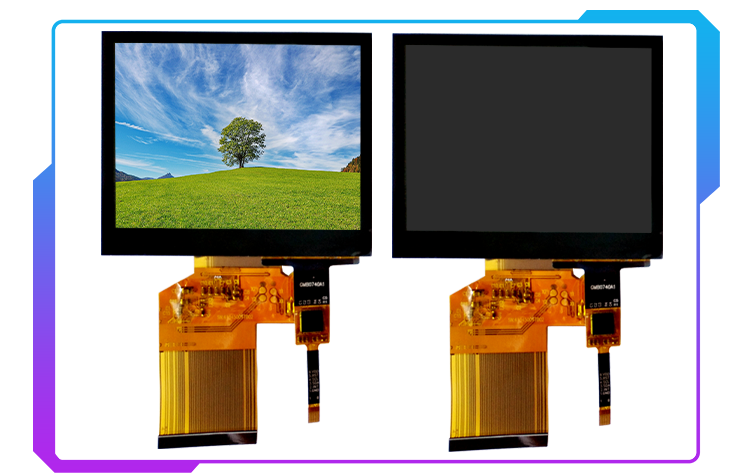

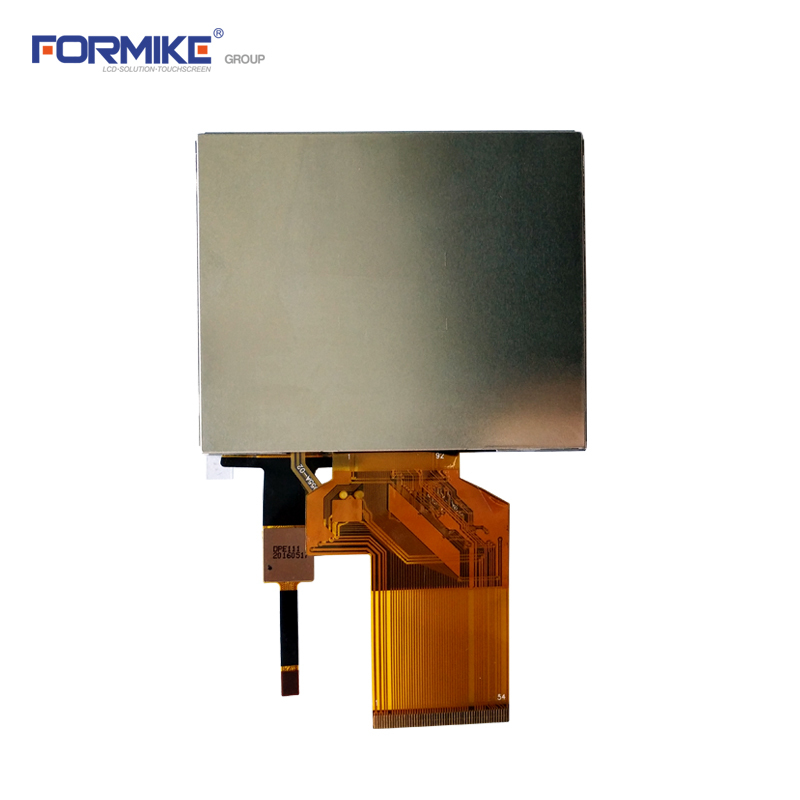

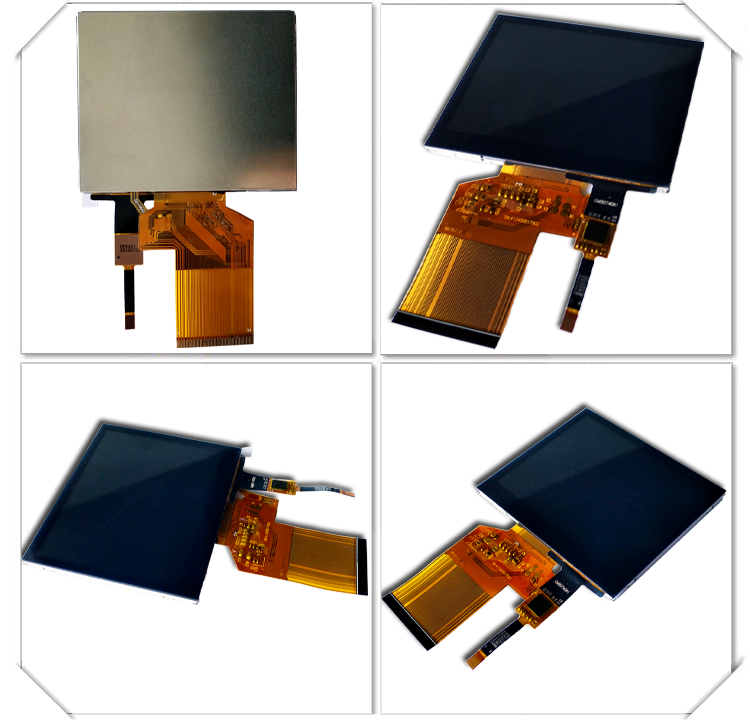

* KWH035ST50-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.

* It is 320x240 resolution IPS TFT LCD module.

* High brightness, Full viewing angle, Touch screen and display screen the same size, beautiful and versatile, OCA bonding.

* 3.5 Inch TFT LCD Module, 350cd/m2, 320*240 resolution, 24 Bit RGB interface, widely used in industry, security, car audio and video, medical, rearview mirror, industrial control equipment, smart home, video doorbell, Building elevator advertising, SIP phones, medical equipment, serial port display modules, handheld PDAs, game consoles, Internet of Things, home appliances and other fields.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
