320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
Specifications
Viewing Angle :
12 O'Clock
Display Size :
3.5inch
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
320x240 TFT LCD Display 3.5 Touchscreen With HX8238D Controller
Dimensions :
76.90mm x 63.90mm x 4.55mm
Payment Terms :
T/T, L/C, Credit card, Cash
Interface :
54Pin, 24 BIT RGB
Packaging Details :
Tray + Inner Box + Carton
Touch Screen :
With capacitive touch panel
Supply Voltage :
3.3V
Brand Name :
Formike
Place of Origin :
China
Resolution :
320 * 240
Supply Ability :
5000000000 pieces/year
Color :
Color
Controller Ic :
HX8238D
Display Type :
3.5 Inch LCD Screen
MOQ :
1 piece
Model Number :
KWH035ST18-C01
Operating Temperature :
-20°C to 70°C
Description

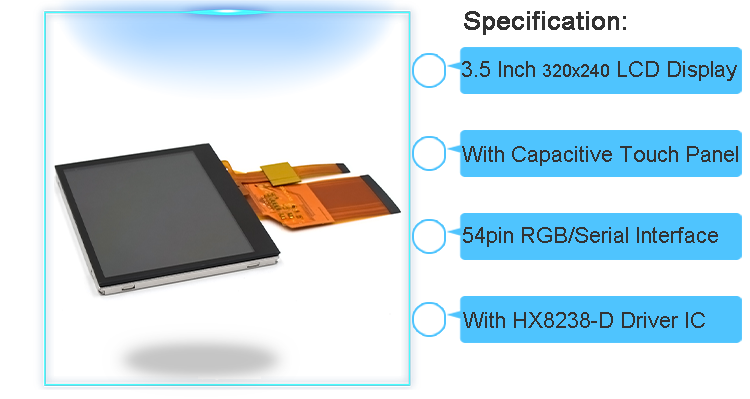

320x240 TFT LCD Display 3.5 Touchscreen With HX8238D Controller

320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller

Product Name 320x240 TFT LCD Display 3.5 Touchscreen With HX8238D Controller
LCD Size 3.5 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 320x240
Outline Dimension (mm) 77.00x64.25x4.40
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction 6 O'Clock
Interface RGB/Serial Interface, 54 Pin
Driver IC HX8238D
Brightness (Cd/m2) 250
Contrast Ratio 400:1
Backlight 6 White LED in Serial

Backlight Supply

(Current/Voltage)

 20mA 19.2V
Touch Screen With Capacitive Touch Panel

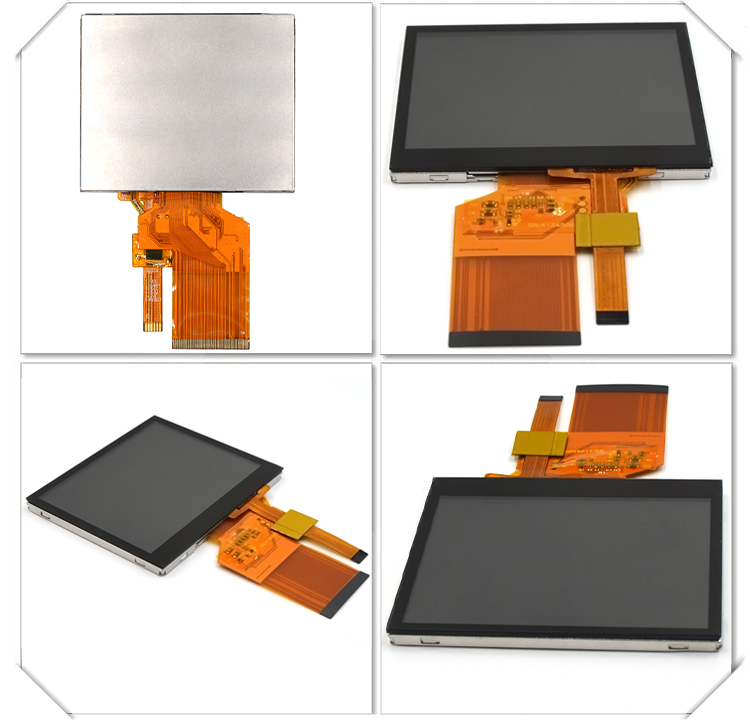

* KWH035ST18-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Capacitive Touch Panel.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller320x240 3.5 Inch LCD Display Touch Color TFT Screen With HX8238D Controller
