Specifications
Operating Temperature :
-20°C to 70°C
Display Size :
3.5-inch
Packaging Details :
Tray + Inner Box + Carton
Product Name :
TFT LCD 320x240 IPS TFT Panel 3.5 Inch LCD Screen With HX8238D Driver IC And 54 Pin RGB Interface
Brand Name :
Formike
Supply Voltage :
3.3V
Touch Screen :
Without (Optional With resistive touch screen)
Interface :
54 Pin, 24 BIT RGB
Color :
Color
Place of Origin :
China
Model Number :
KWH035ST50-F01
Supply Ability :
5000000000 pieces/year
Controller Ic :
HX8238D
MOQ :
1 piece
Payment Terms :
T/T, L/C, Credit card, Cash
Display Type :
3.5 Inch TFT LCD Panel
Viewing Angle :
All
Dimensions :
76.9mm x 63.9mm x 4.3mm
Resolution :
320*240
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Description

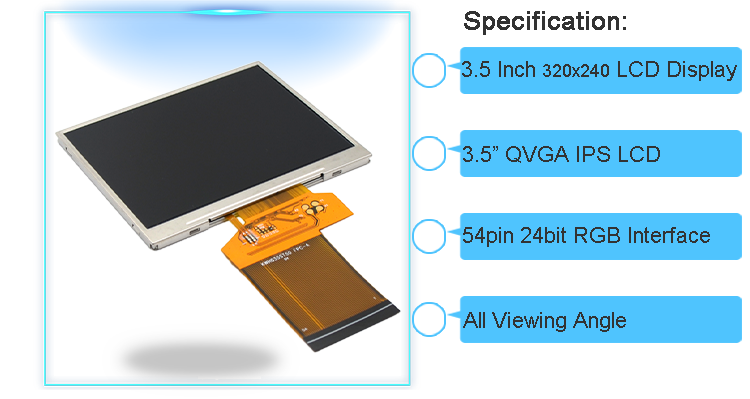

TFT LCD 320x240 IPS TFT Panel 3.5 Inch LCD Screen With HX8238D Driver IC And 54 Pin RGB Interface

Wearable IPS LCD 320x240 TFT Display Panel 3.5 Inch LCD Screen HX8238D

Product Name TFT LCD 320x240 IPS TFT Panel 3.5 Inch LCD Screen With HX8238D Driver IC And 54 Pin RGB Interface
LCD Size 3.5 Inch TFT LCD Display Module
Display Mode IPS
Resolution 320x240
Outline Dimension (mm) 76.90x63.90x4.30
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction All
Interface 24 Bit RGB Interface, 54 Pin
Brightness (Cd/m2) 350
Contrast Ratio 800:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 20mA 19.2V
Touch Screen Without (Optional With Capacitive Touch Panel or Resistive Touch Screen)

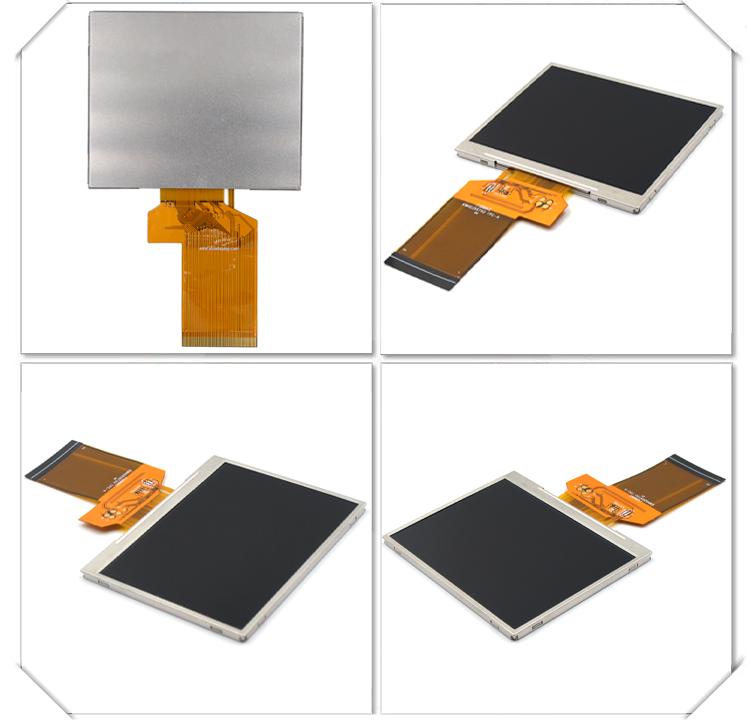

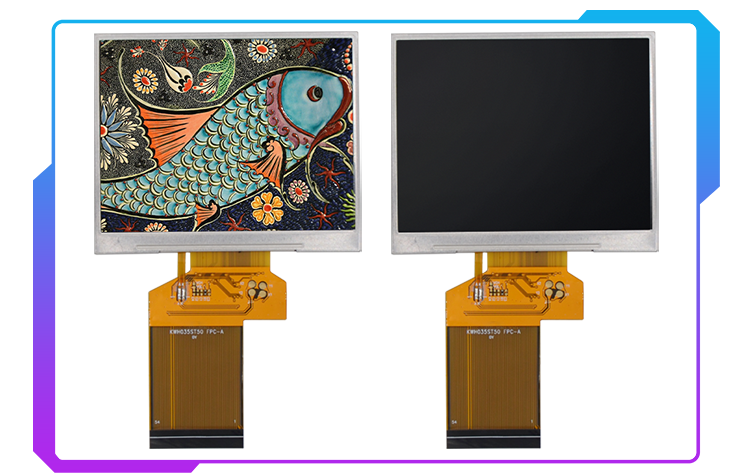

* KWH035ST50-F01 is a Transmissive type IPS color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight.

* It is 320x240 resolution IPS TFT LCD module.

* High brightness, Full viewing angle, beautiful and versatile.

* 3.5 Inch TFT LCD Module, 350cd/m2, 320*240 resolution, 24 Bit RGB interface, widely used in Security and protection, Rear view mirror, Pictorial Navigation Display, and other electronic products etc.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Wearable IPS LCD 320x240 TFT Display Panel 3.5 Inch LCD Screen HX8238DWearable IPS LCD 320x240 TFT Display Panel 3.5 Inch LCD Screen HX8238D
