Specifications
Model Number :
KWH035ST28-F01
Interface :
38 Pin, 16 BIT MCU
Supply Voltage :
3.2V
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Place of Origin :
China
Product Name :
320x480 TFT ILI9488 LCD 3.5 Inch Display With IPS Viewing And 38 Pin Soldering FPC
Touch Screen :
Without (Optional with touch screen)
MOQ :
1 piece
Resolution :
320x480
Payment Terms :
T/T, L/C, Credit card, Cash
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
ILI9488
Operating Temperature :
-20°C to 70°C
Supply Ability :
5000000000 pieces/year
Viewing Angle :
ALL
Brand Name :
Formike
Dimensions :
56.54mm x 84.96mm x 2.20mm
Display Type :
3.5Inch IPS TFT LCD Panel
Color :
Color
Display Size :
3.5 inch
Description

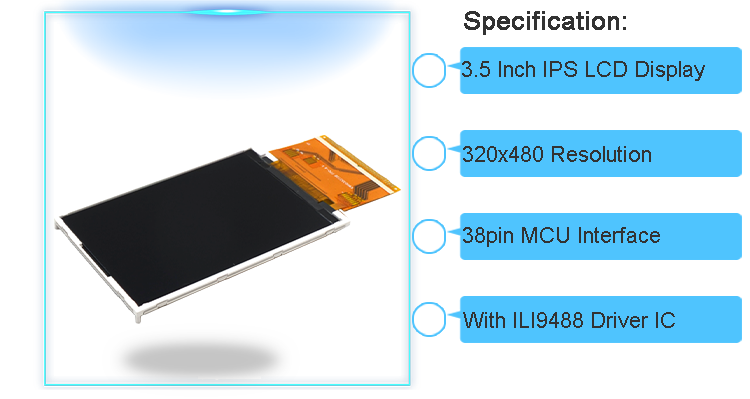

320x480 TFT ILI9488 LCD 3.5 Inch Display With IPS Viewing And 38 Pin Soldering FPC

Transparent 320x480 ILI9488 LCD 3.5 Inch TFT LCD Display With IPS Viewing 38 Pin Soldering FPC

Product Name 320x480 TFT ILI9488 LCD 3.5 Inch Display With IPS Viewing And 38 Pin Soldering FPC
LCD Size 3.5 Inch TFT LCD Display Module
Display Mode IPS
Resolution 320x480
Outline Dimension (mm) 56.54x84.96x2.20
Active Area (mm) 48.96x73.44
Dot pitch (mm) 0.153x0.153
Viewing Direction All
Interface 8/16 BIT MCU Interface, 38 Pin
Driver IC ILI9488
Brightness (Cd/m2) 300
Contrast Ratio 700:1
Backlight 6 White LED in Parallel

Backlight Supply

(Current/Voltage)

 90mA 3.2V
Touch Screen Without (Optional ith Capacitive Touch Panel or Resistive Touch Screen)

* KWH035ST28-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 320x480 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

Transparent 320x480 ILI9488 LCD 3.5 Inch TFT LCD Display With IPS Viewing 38 Pin Soldering FPCTransparent 320x480 ILI9488 LCD 3.5 Inch TFT LCD Display With IPS Viewing 38 Pin Soldering FPC
