Specifications
Touch Screen :
With resistive touch screen
Resolution :
320 x 240
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
320x240 LCD Display Touch 3.5 Inch TFT LCD Datasheet
Display Size :
3.5 inch
Brand Name :
Formike
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Interface :
54 Pin, 24 BIT RGB
Display Type :
3.5-Inch TFT LCD Display
Operating Temperature :
-20°C to 70°C
Model Number :
KWH035ST18-F04 V.2
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Controller Ic :
HX8238D
Viewing Angle :
12 O'Clock
Color :
Color
Supply Voltage :
3.3V
Payment Terms :
T/T, L/C, Credit card, Cash
Dimensions :
76.9mm x 63.9mm x 4.3mm
Description

320x240 LCD Display Touch 3.5 Inch TFT LCD Datasheet

REACH 3.3V LCD 3.5 Inch Display Touch TFT LCD Screen 320x240 24 BIT RGB

Product Name 320x240 LCD Display Touch 3.5 Inch TFT LCD Datasheet
LCD Size 3.5 Inch TFT LCD Display Module with Resistive Touch Panel
Display Mode Transmissive
Resolution 320x240
Outline Dimension (mm) 76.90x63.90x4.30
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction 12 O'Clock
Interface 24 BIT RGB Interface, 54 Pin
Driver IC HX8238D
Brightness (Cd/m2) 210
Contrast Ratio 400:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 20mA 19.8V
Touch Screen With Resistive Touch Screen

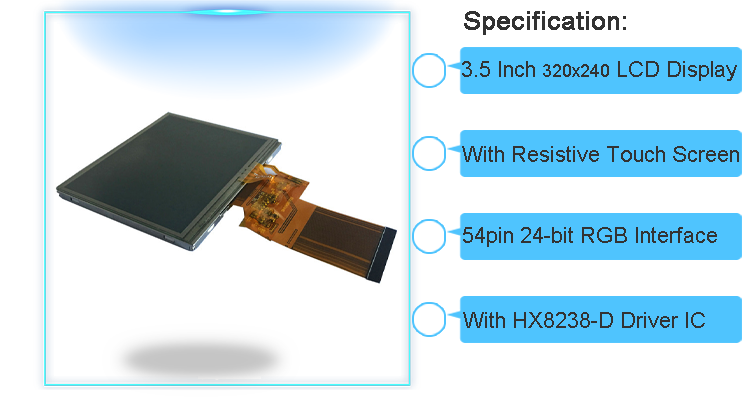

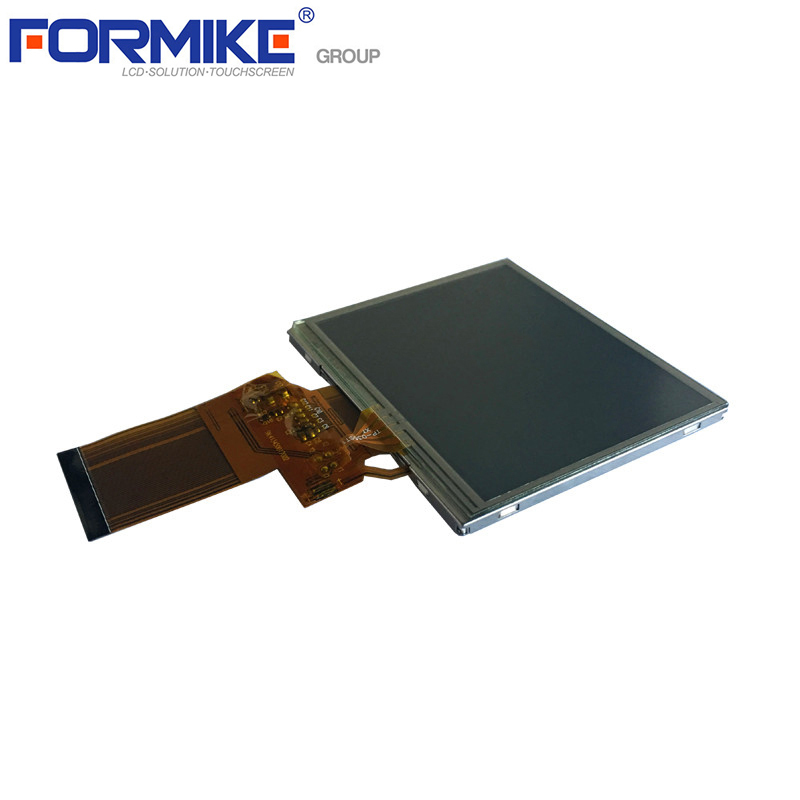

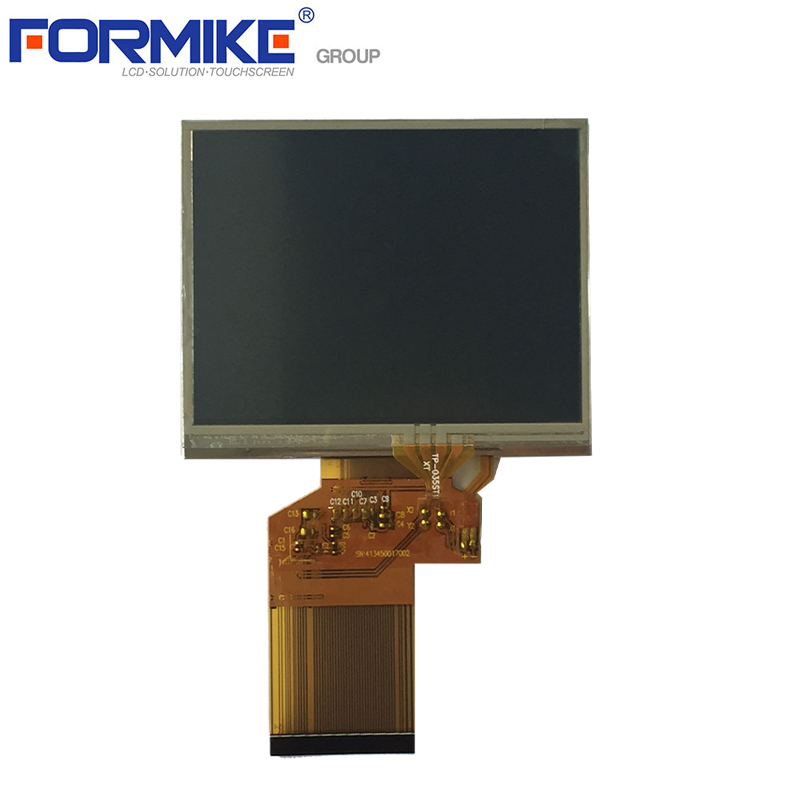

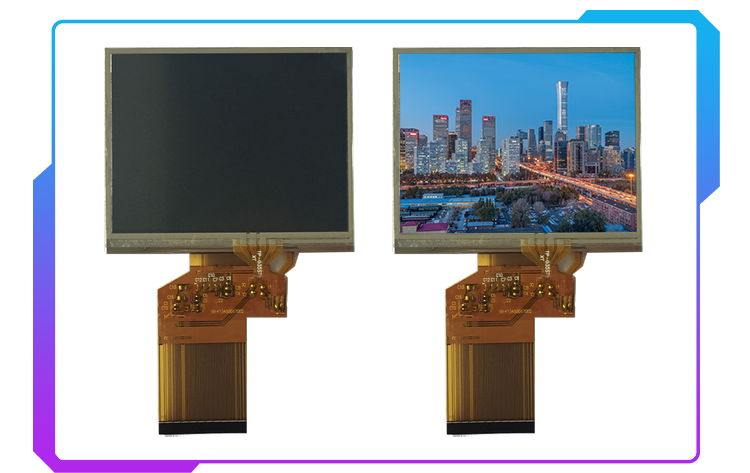

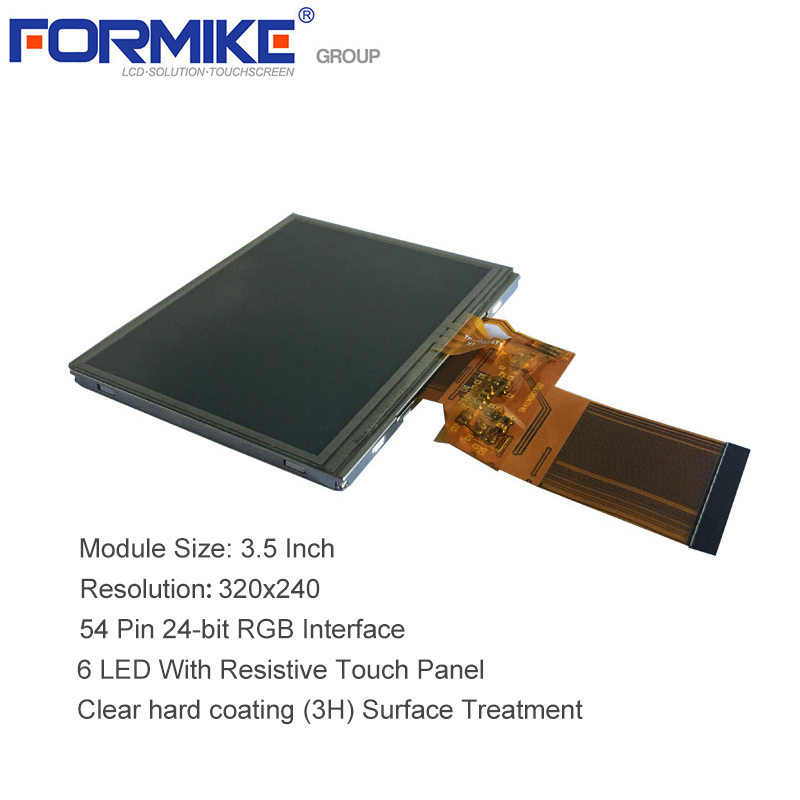

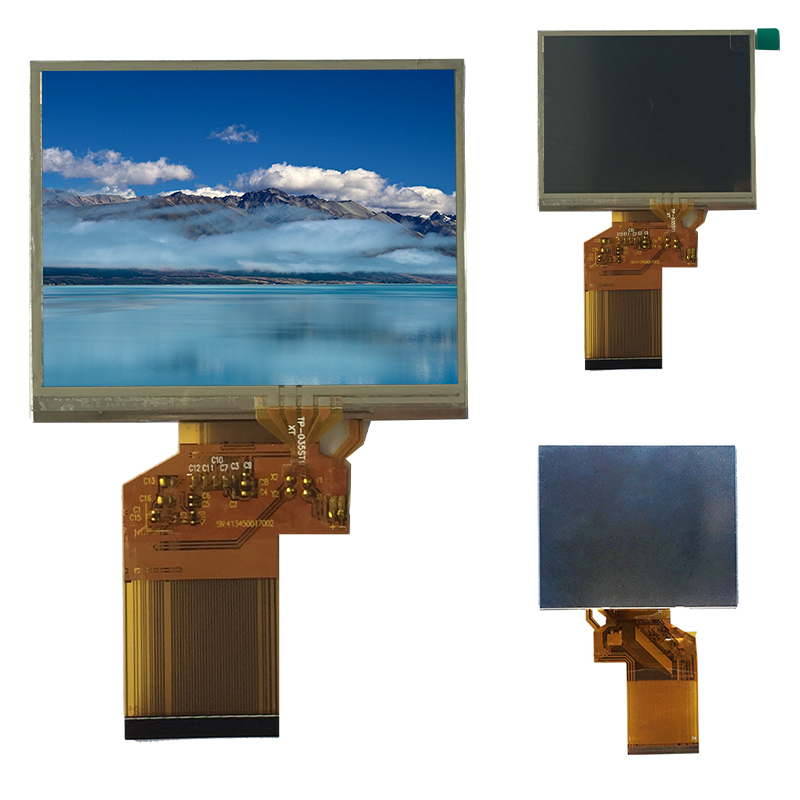

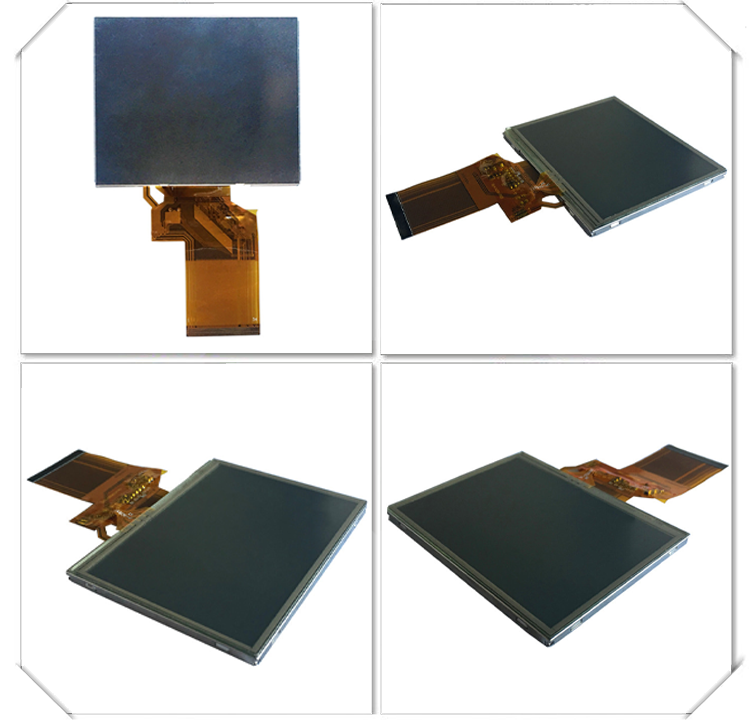

* KWH035ST18-F04 V.2 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Resistive Touch Panel.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
