Specifications
Brand Name :
Formike
Display Type :
3.5Inch IPS TFT LCD Display
Touch Screen :
With capacitive touch screen
Place of Origin :
China
Product Name :
TFT 480x320 ILI9488 Display 3.5 Inch TFT Touch Shield With 8/16 BIT MCU Interface
Viewing Angle :
ALL
Resolution :
320*480
Interface :
38Pin, 16/8 BIT MCU
Display Size :
3.5inch
MOQ :
1 piece
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
ILI9488
Supply Voltage :
3.2V
Color :
Color
Dimensions :
62.23mm x 104.14mm x 3.65mm
Model Number :
KWH035ST28-C01
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Description

TFT 480x320 ILI9488 Display 3.5 Inch TFT Touch Shield With 8/16 BIT MCU Interface

480x320 ILI9488 Display 3.5 Inch SPI TFT Touch LCD Screen Shield With 8/16 BIT MCU Interface

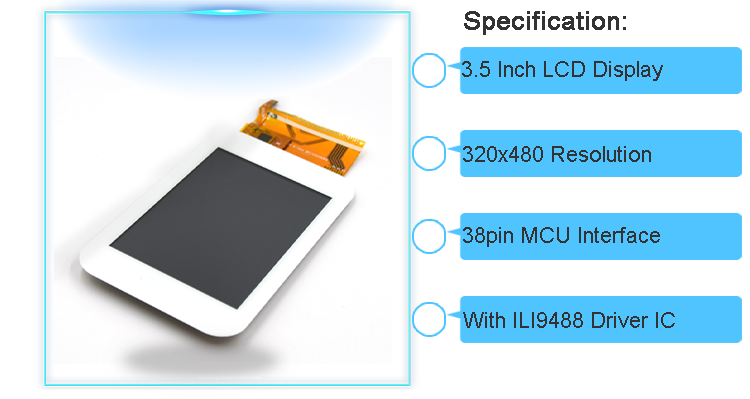

Product Name TFT 480x320 ILI9488 Display 3.5 Inch TFT Touch Shield With 8/16 BIT MCU Interface
LCD Size 3.5 Inch TFT LCD Display Module
Display Mode IPS
Resolution 320x480
Outline Dimension (mm) 62.23x104.14x3.65
Active Area (mm) 48.96x73.44
Dot pitch (mm) 0.153x0.153
Viewing Direction All
Interface MCU Interface, 38 Pin
Driver IC ILI9488
Brightness (Cd/m2) 200
Contrast Ratio 700:1
Backlight 6 White LED in Parallel

Backlight Supply

(Current/Voltage)

 90mA 3.2V
Touch Screen Capacitive Touch Panel

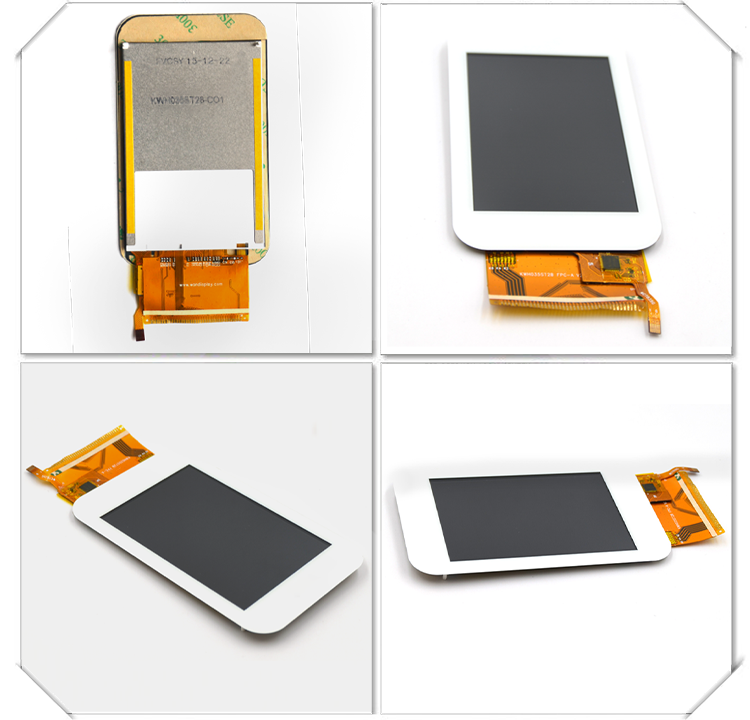

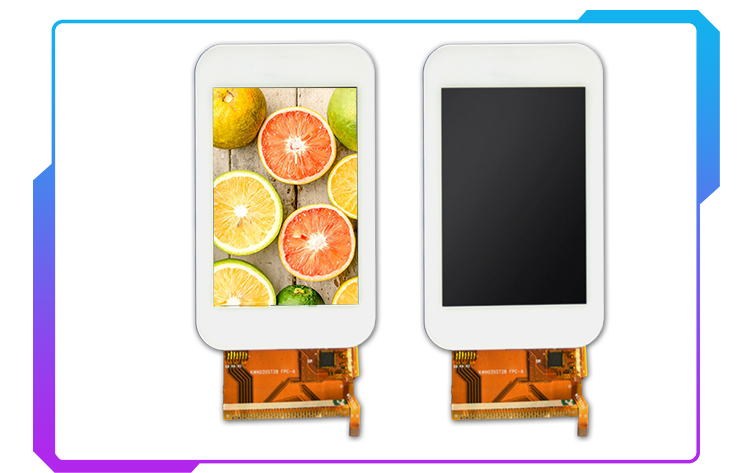

* KWH035ST28-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 320x480 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
