Specifications
Controller Ic :
ILI9488
Dimensions :
55.04mm x 84.71mm x 2.30mm
Place of Origin :
China
Brand Name :
Formike
Product Name :
320x480 LCD ILI9488 TFT Display 3.5 Inch TFT LCD Screen
MOQ :
1 piece
Supply Voltage :
2.8V
Resolution :
320 * 480
Display Size :
3.5inch
Viewing Angle :
12 O'Clock
Interface :
51Pin, CPU/RGB 24 bits
Model Number :
KWH035ST44-F01
Display Type :
3.5Inch TFT LCD Module
Operating Temperature :
-20°C to 70°C
Packaging Details :
Tray + Inner Box + Carton
Touch Screen :
Without (Optional with touch screen)
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Ability :
5000000000 pieces/year
Color :
Color
Description

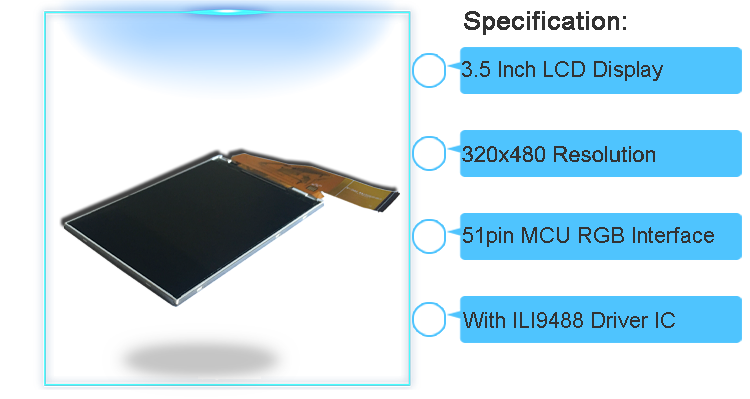

320x480 LCD ILI9488 TFT Display 3.5 Inch TFT LCD Screen

2.8V Small TFT Screen 320x480 LCD ILI9488 Display Module 3.5 Inch

Product Name 320x480 LCD ILI9488 TFT Display 3.5 Inch TFT LCD Screen
LCD Size 3.2 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 320x480
Outline Dimension (mm) 55.04x84.71x2.30
Active Area (mm) 48.96x73.44
Dot pitch (mm) 0.153x0.153
Viewing Direction 12 O'Clock
Interface MCU/RGB Interface, 51 Pin
Driver IC ILI9488
Brightness (Cd/m2) 300
Contrast Ratio 500:1
Backlight 6 White LED in Serial

Backlight Supply

(Current/Voltage)

 20mA 19.2V
Touch Screen Without

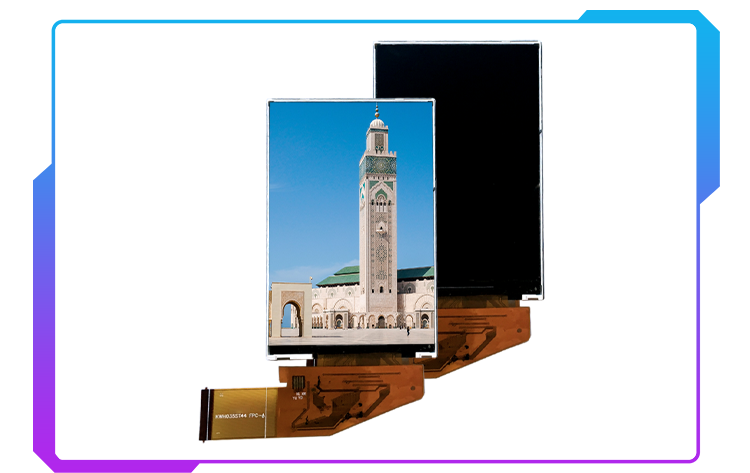

* KWH035ST44-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

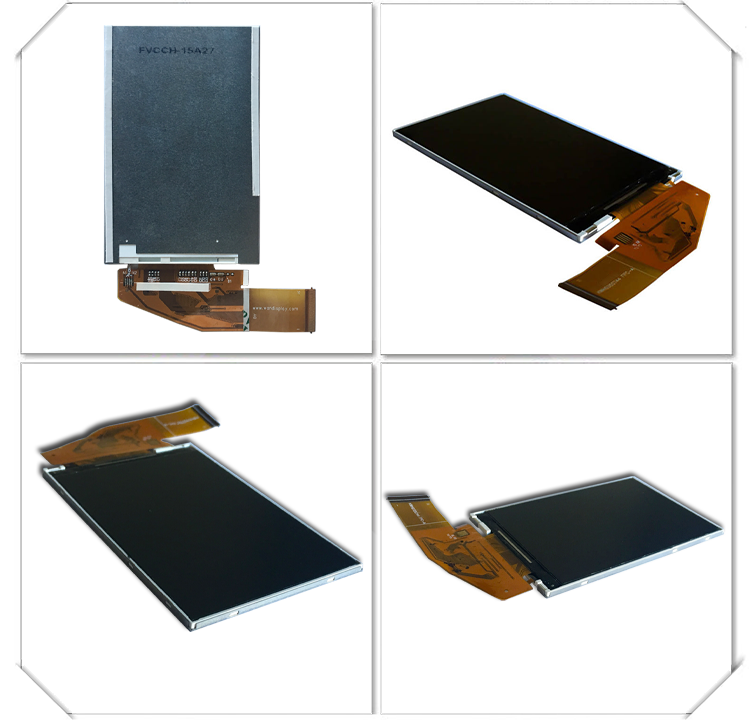

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 320x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
