ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
Specifications
Viewing Angle :
6 O'Clock
Display Size :
3.5inch
Product Name :
320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display
MOQ :
1 piece
Dimensions :
76.90mm x 63.90mm x 3.15mm
Payment Terms :
T/T, L/C, Credit card, Cash
Brand Name :
Formike
Interface :
54Pin, 24 BIT RGB
Place of Origin :
China
Packaging Details :
Tray + Inner Box + Carton
Touch Screen :
With resistive touch panel
Supply Voltage :
3.3V
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Ability :
5000000000 pieces/year
Resolution :
320x240
Model Number :
KWH035ST18-F04 V.1
Color :
Color
Controller Ic :
HX8238D
Display Type :
3.5-Inch LCD Display
Operating Temperature :
-20°C to 70°C
Description

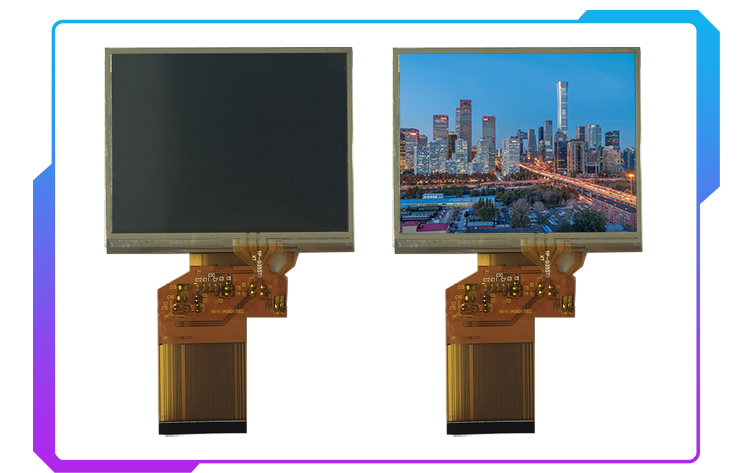

320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display

ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240

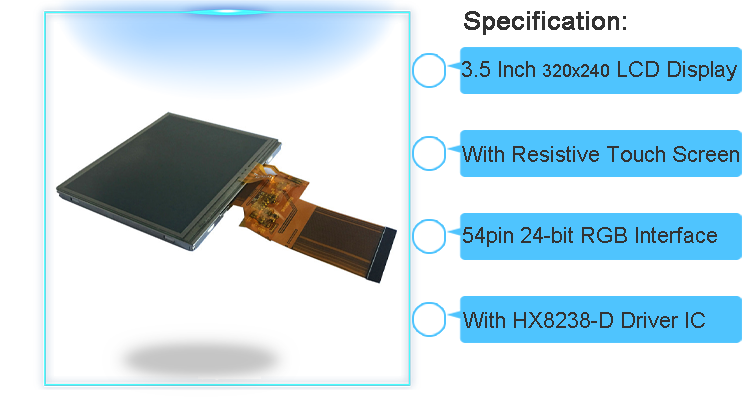

Product Name 320x240 LCD Module TFT Screen Touch 3.5 Inch TFT LCD Display
LCD Size 3.5 Inch TFT LCD Display Module with Touch Panel
Display Mode Transmissive
Resolution 320x240
Outline Dimension (mm) 76.90x63.90x3.15
Active Area (mm) 70.08x52.56
Dot pitch (mm) 0.219x0.219
Viewing Direction 6 O'Clock
Interface 24 BIT RGB Interface, 54 Pin
Driver IC HX8238D
Brightness (Cd/m2) 250
Contrast Ratio 500:1
Backlight 6 White LED

Backlight Supply

(Current/Voltage)

 20mA 19.8V
Touch Screen With Resistive Touch Screen

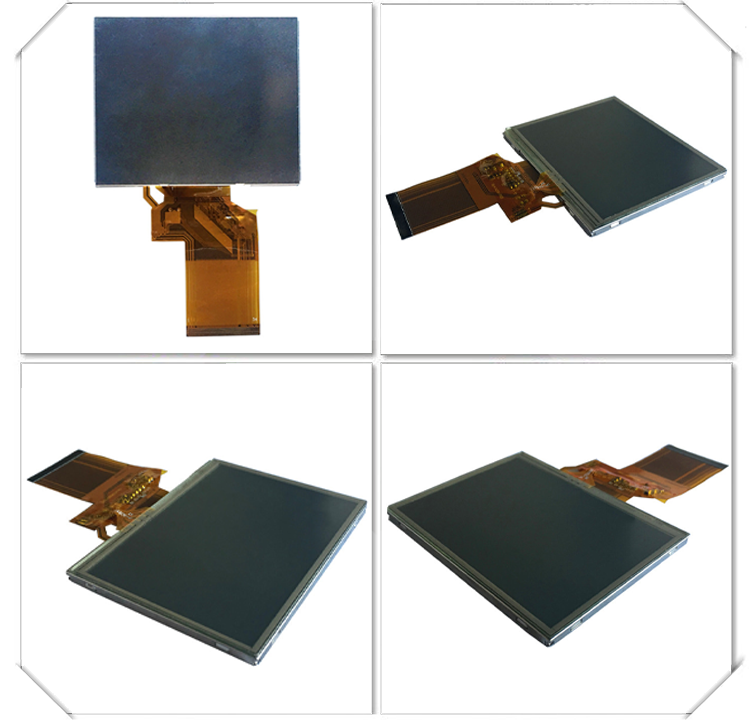

* KWH035ST18-F04 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD Display, driver IC, FPC, backlight, Resistive Touch Panel.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240ODM Colour LCD Module Mini TFT Display Screen 3.5 Inch Touch LCD 320x240
