Specifications
Model Number :
KWH070KQ38-B02
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Interface :
40 Pin, LVDS
Product Name :
LVDS LCD Display Module TFT 800 480 7" In LCD Screen With 40 Pin Interface
Supply Voltage :
3.3V
Viewing Angle :
6 O'Clock
Resolution :
800 x 480
Operating Temperature :
-20°C to 70°C
Supply Ability :
5000000000 pieces/year
Display Size :
7"
Dimensions :
164.9mm x 100.0mm x 9.5mm
Place of Origin :
China
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Color
Touch Screen :
Without (Optional with touch panel)
Payment Terms :
T/T,L/C,Credit card,Cash
Brand Name :
Formike
Display Type :
7Inch LCD Display
Description

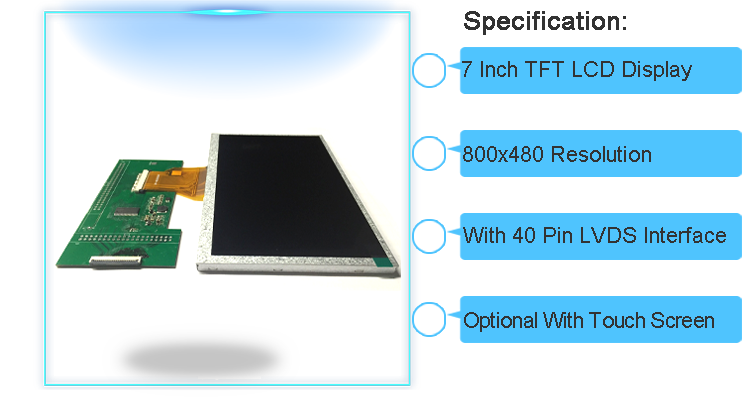

LVDS LCD Display Module TFT 800 480 7" In LCD Screen With 40 Pin Interface

40Pin 7 Inch Display LVDS LCD TFT Screen Module 350cd/m2 OEM

LCD Name LVDS LCD Display Module TFT 800 480 7" In LCD Screen With 40 Pin Interface

LCD Size

7 inch TFT LCD Display

Resolution

800X480

Color Depth

16M

Contrast Ratio

500:1

Outline Dimension

164.90x 100.00 x 9.5mm

Active Area(HxV mm)

154.08x85.92mm

Viewing Direction

6 O'clock

Interface

LVDS, 40 Pin

Backlight

White LED

Brightness

350cd/m2

Operation Temperature

-20~70℃

Backlight Supply Current/Voltage

180mA 9.6V

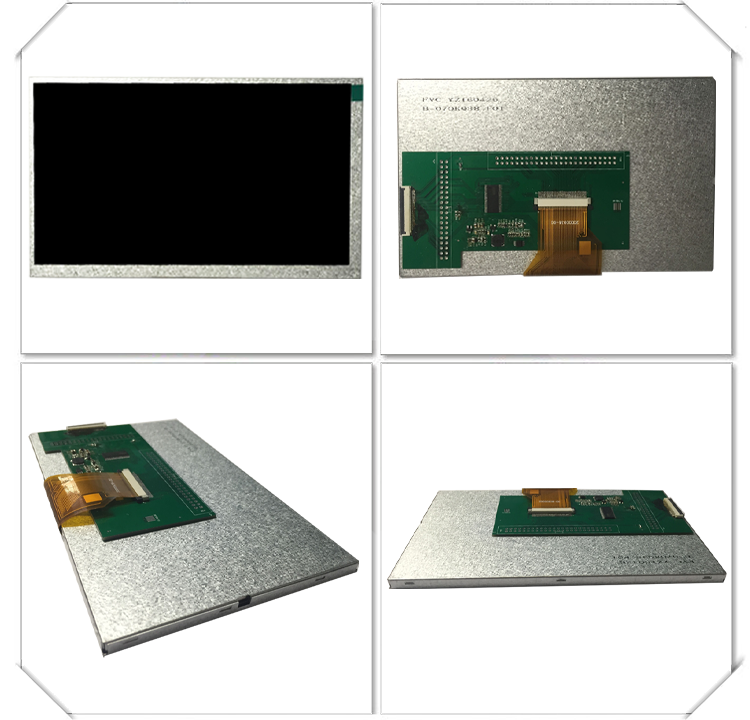

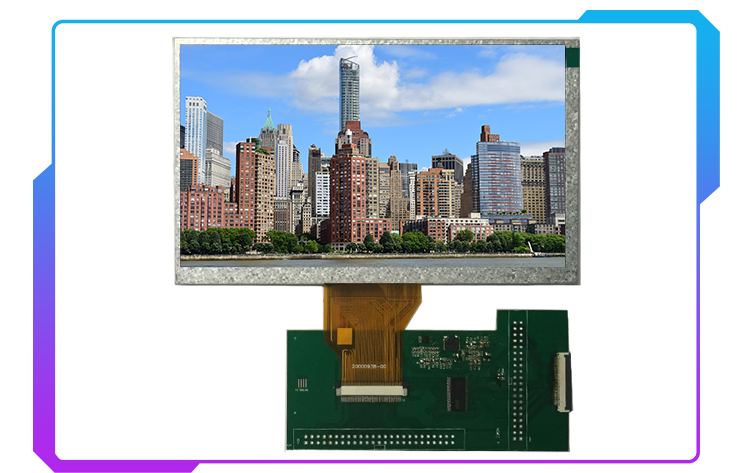

* KWH070KQ38-B02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
