Specifications
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
50 Pin, 24 BIT RGB
Brand Name :
Formike
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Product Name :
Display TFT 7 800x480 7Inch LCD Screen With 50Pin RGB Connector
Display Size :
7inch
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Display Type :
7Inch TN TFT LCD Module
Resolution :
800 x 480
Color :
Color
Operating Temperature :
-20°C to 70°C
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
6 O'Clock
Dimensions :
164.9mm x 100.0mm x 5.5mm
Model Number :
KWH070KQ38-F03 V.1
Supply Voltage :
3.3V
MOQ :
1 piece
Touch Screen :
Without (Optional with touch panel)
Description

Display TFT 7 800x480 7Inch LCD Screen With 50Pin RGB Connector

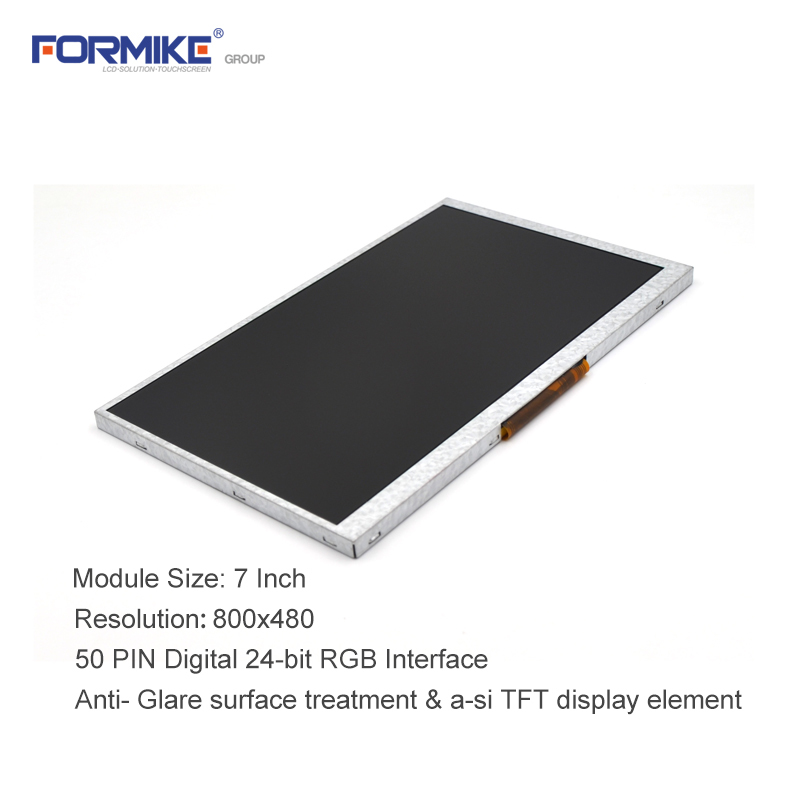

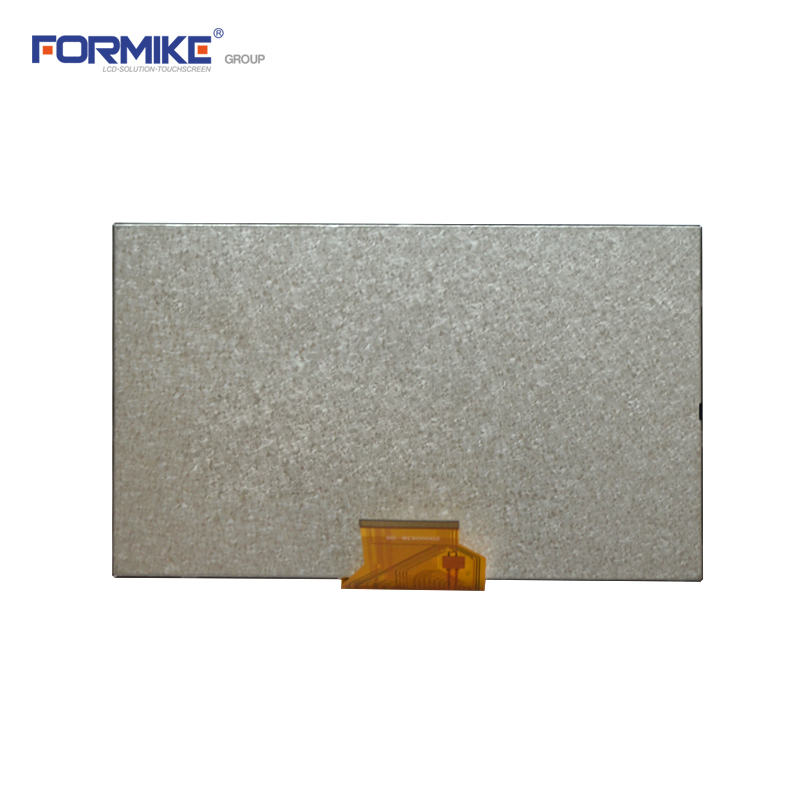

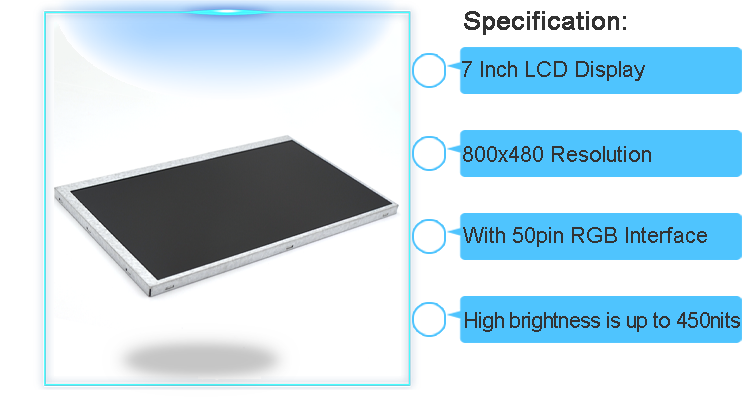

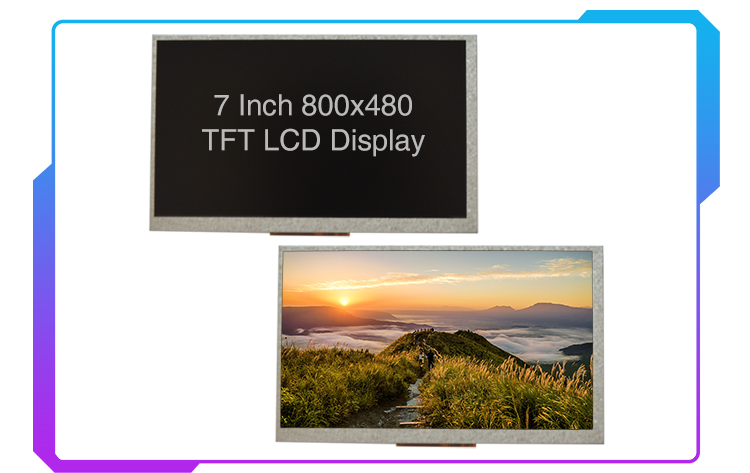

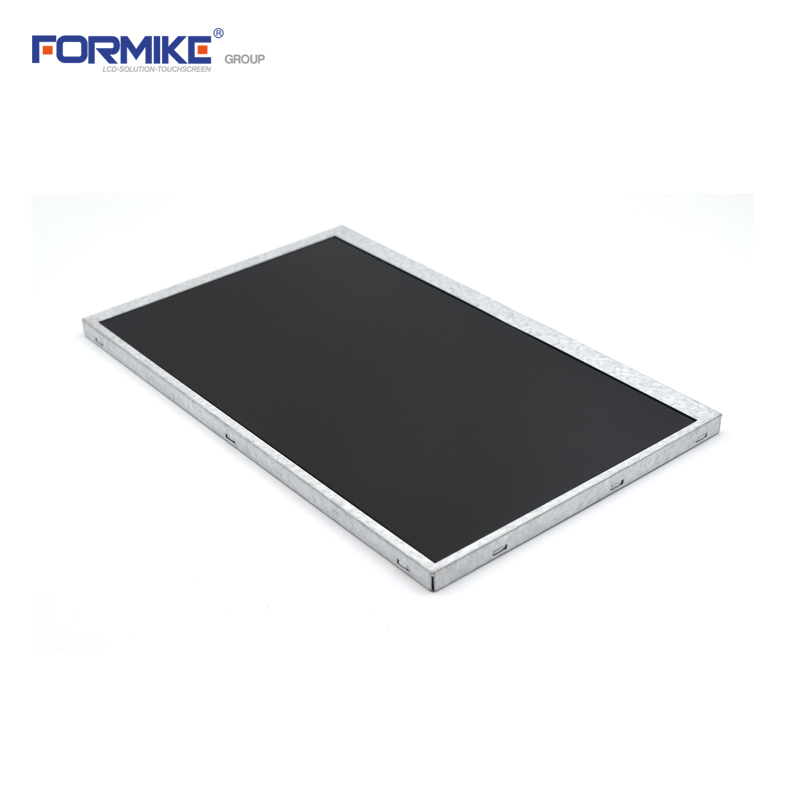

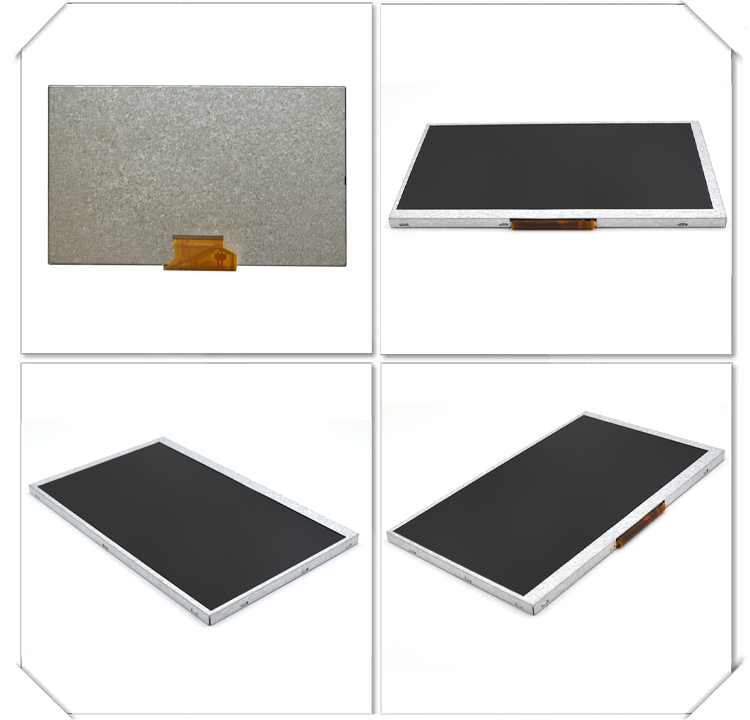

800x480 7 Inch Display TFT A-Si Tft Active Matrix LCD Screen With 50Pin RGB Connector

Product Name Display TFT 7 800x480 7Inch LCD Screen With 50Pin RGB Connector
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480

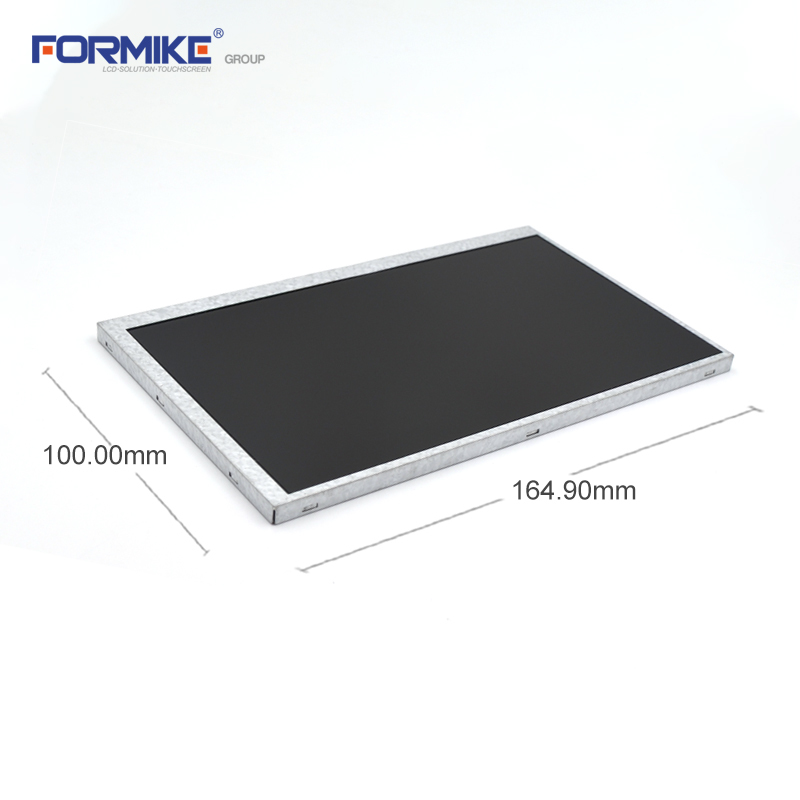

Outline Dimension (mm) 164.90x100.00x5.50
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.0642x0.1790
Viewing Direction 6 O'clock
Interface RGB Interface, 50 Pin
Surface Treatment Anti-Glare
Display element A-si TFT
Brightness (Cd/m2) 450
Contrast Ratio 500:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen Without (Optional with)

* KWH070KQ38-F03 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
