Specifications
Resolution :
800 * 480
Technology :
Anti- Glare & A-si TFT
Brand Name :
Formike
Product Name :
WVGA 800x480 LCD 7 Inch 50 Pin TFT Display Touch Screen
Touch Screen :
With resistive touch panel
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
12 O'Clock
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
50-Pin, 24 BIT RGB
Supply Voltage :
3.3V
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
MOQ :
1 piece
Dimensions :
164.9mm X 100.0mm X 7.0mm
Model Number :
KWH070KQ38-F03 V.2
Color :
Color
Display Size :
7 inch
Supply Ability :
5000000000 pieces/year
Display Type :
7 Inch TN TFT LCD Module
Description

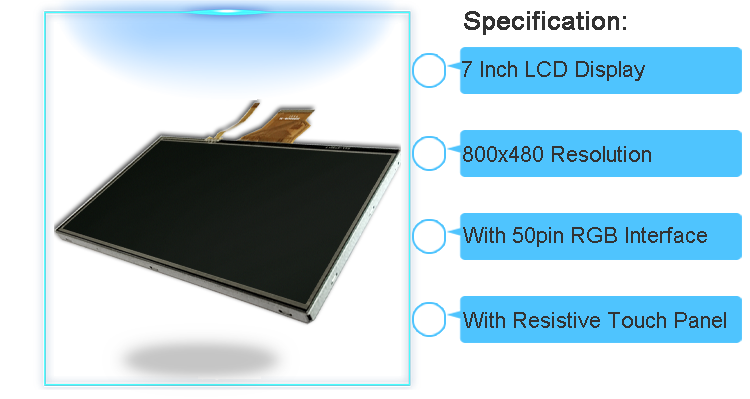

WVGA 800x480 LCD 7 Inch 50 Pin TFT Display Touch Screen

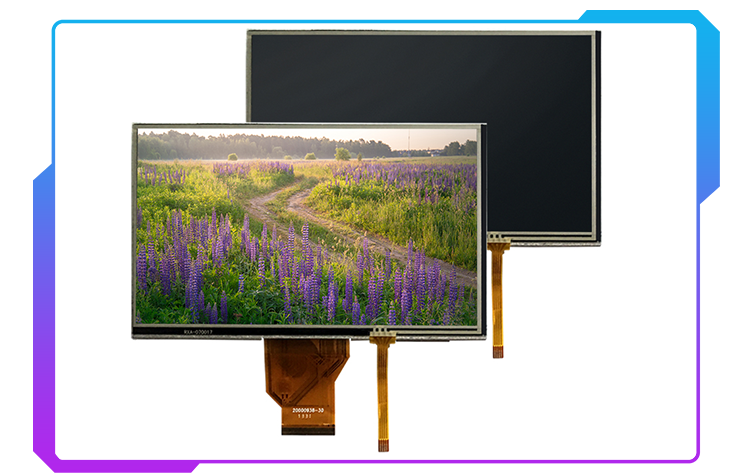

Custom 800x480 7 Inch HD IPS Display 50 Pin WVGA LCD TFT Touch Screen

Product Name WVGA 800x480 LCD 7 Inch 50 Pin TFT Display Touch Screen
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 164.90x100.00x7.00
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.0642x0.1790
Viewing Direction 12 O'clock
Interface RGB Interface, 50 Pin
Surface Treatment Anti-Glare
Display element A-si TFT
Brightness (Cd/m2) 400
Contrast Ratio 500:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.6V
Touch Screen With Resistive Touch Panel

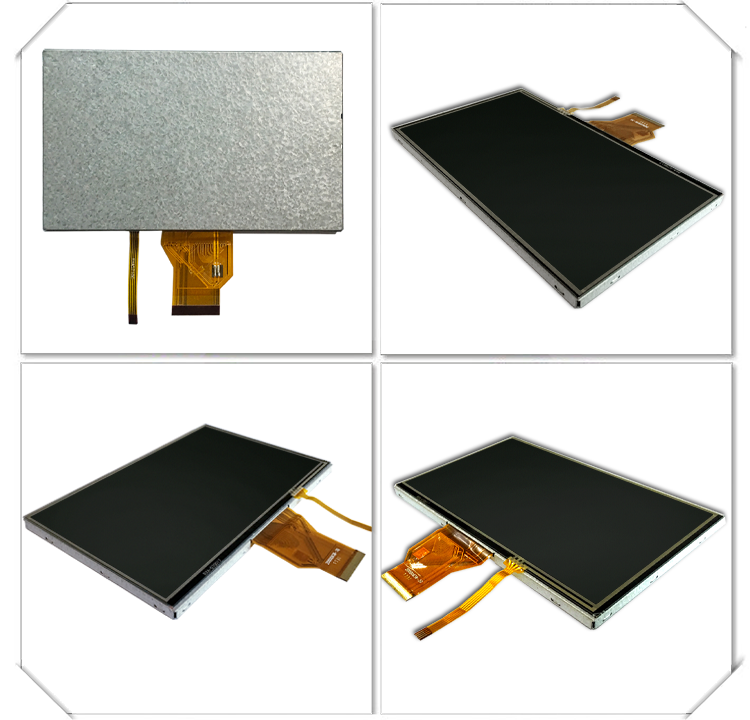

* KWH070KQ38-F03 V.2 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
