Specifications
Dimensions :
179.40mm x 117.40mm x 7.37mm
Product Name :
7 Inch LCD Panel 800 480 Screen TFT Display Touch Panel With Anti-Glare And A-Si Technology
Viewing Angle :
6 O'Clock
Supply Ability :
5000000000 pieces/year
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Interface :
50 Pin, 24 BIT RGB
Payment Terms :
T/T,L/C,Credit card,Cash
Resolution :
800 * 480
Display Size :
7inch
MOQ :
1 piece
Brand Name :
Formike
Operating Temperature :
-20°C to 70°C
Display Type :
7 Inch LCD Module
Touch Screen :
With capacitive touch panel
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Voltage :
3.3V
Place of Origin :
China
Model Number :
KWH070KQ20-C05
Color :
Color
Description

7 Inch LCD Panel 800 480 Screen TFT Display Touch Panel With Anti-Glare And A-Si Technology

800x480 7 Inch Display A-Si TFT LCD Panel Touch Screen Panel Anti Glare

Product Name 7 Inch LCD Panel 800 480 Screen TFT Display Touch Panel With Anti-Glare And A-Si Technology
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 179.40x117.40x7.37
Active Area (mm) 154.08x85.92
Dot pitch (mm) 0.0642x0.1790
Viewing Direction 6 O'clock
Interface RGB Interface, 50 Pin
Color Depth 16M
Brightness (Cd/m2) 180
Contrast Ratio 500:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 180mA 9.9V
Touch Screen With Capacitive Touch Screen Panel

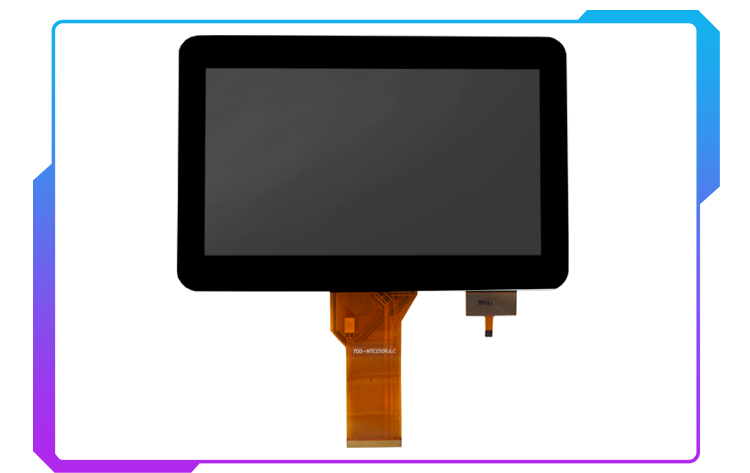

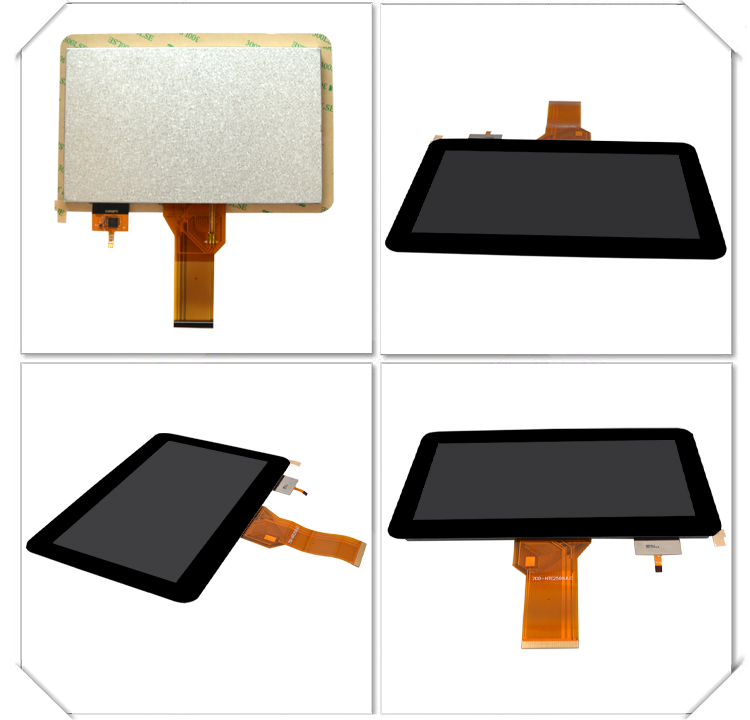

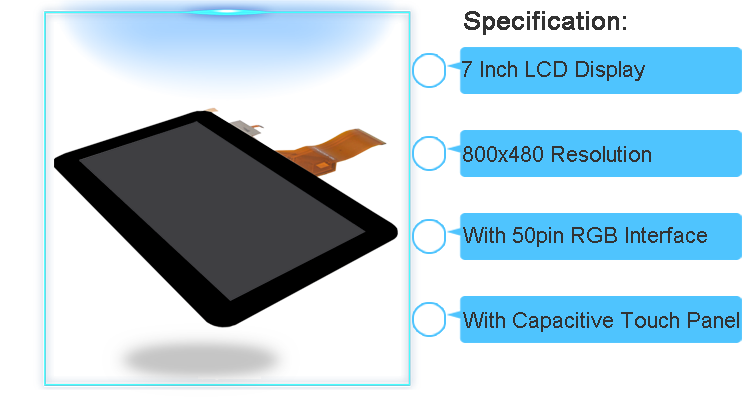

* KWH070KQ20-C05 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
