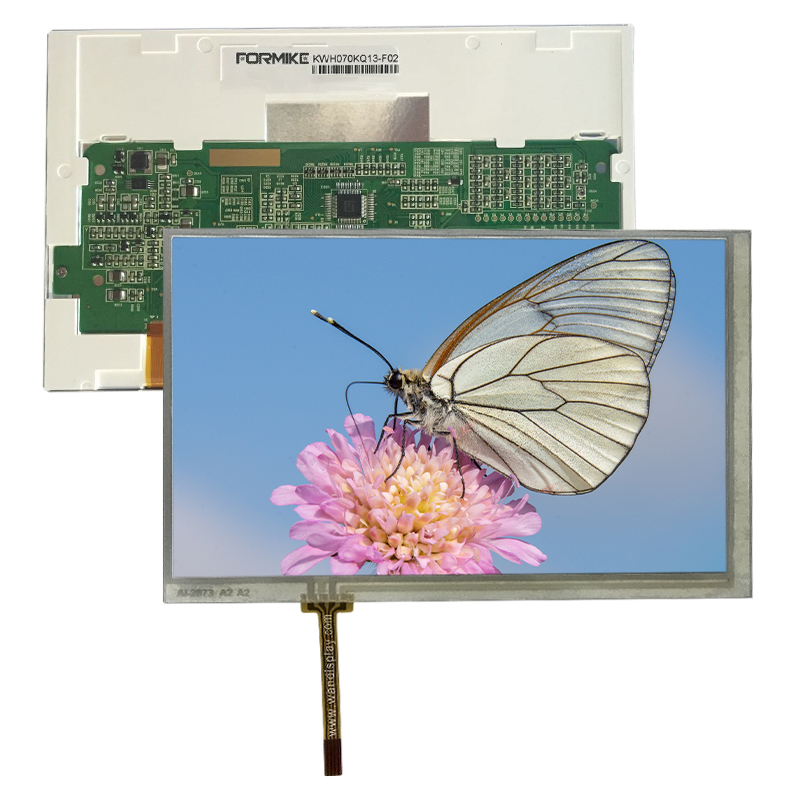

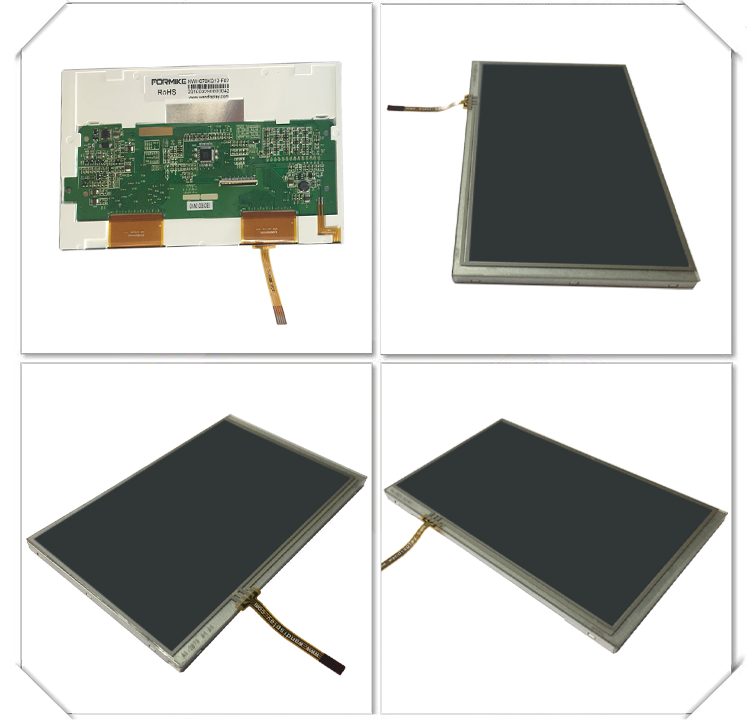

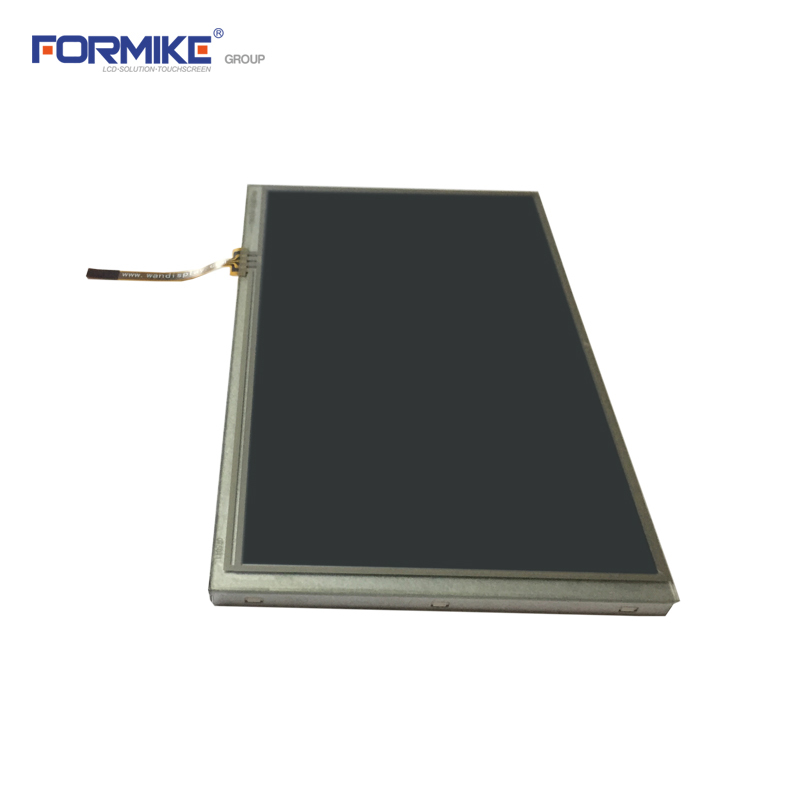

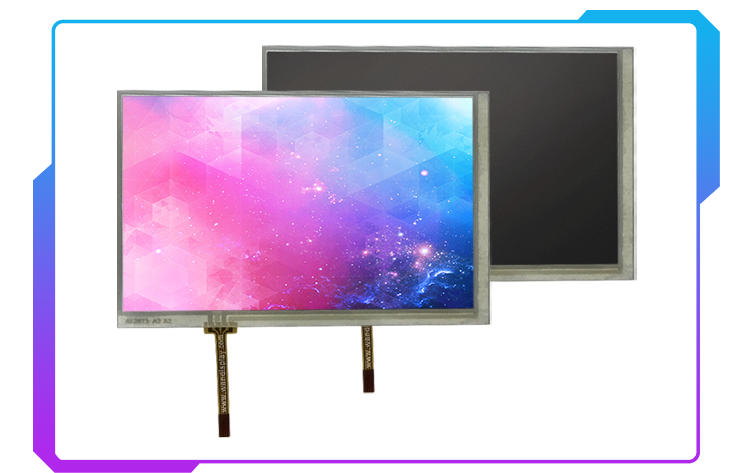

RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
Specifications
Brand Name :
Formike
Dimensions :
165.0mm x 104.0mm x 7.0mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
RGB TTL LCD 800x480 40 Pin TFT 7 Inch Resistive Touch Screen
Packaging Details :
Partition + A/S Bag + Corrugated Bar + Carton
Display Type :
7 Inch LCD Screen
Color :
Color
Model Number :
KWH070KQ13-F02
Place of Origin :
China
Resolution :
800*480
Supply Voltage :
3.3V
Payment Terms :
T/T,L/C,Credit card,Cash
Viewing Angle :
6 O'Clock
MOQ :
1 piece
Operating Temperature :
-20°C to 70°C
Interface :
40 Pin, RGB TTL
Touch Screen :
With resistive touch screen
Supply Ability :
5000000000 pieces/year
Display Size :
7 inch
Description

RGB TTL LCD 800x480 40 Pin TFT 7 Inch Resistive Touch Screen

RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen

Product Name RGB TTL LCD 800x480 40 Pin TFT 7 Inch Resistive Touch Screen
LCD Size 7 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 800x480
Outline Dimension (mm) 165.00x104.00x7.00
Active Area (mm) 152.40x91.44
Dot pitch (mm) 0.0635x0.1905
Viewing Direction 6 O'clock
Interface RGB TTL Interface, 40 Pin
Surface Treatment Unti-Glare
Brightness (Cd/m2) 300
Contrast Ratio 500:1
Backlight 27 White LED

Backlight Supply

(Current/Voltage)

 165mA 5.0V
Touch Screen With Resistive Touch Panel

* KWH070KQ13-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

RGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch ScreenRGB TTL 800x480 40 Pin TFT 7 Inch LCD Display Resistive Touch Screen
