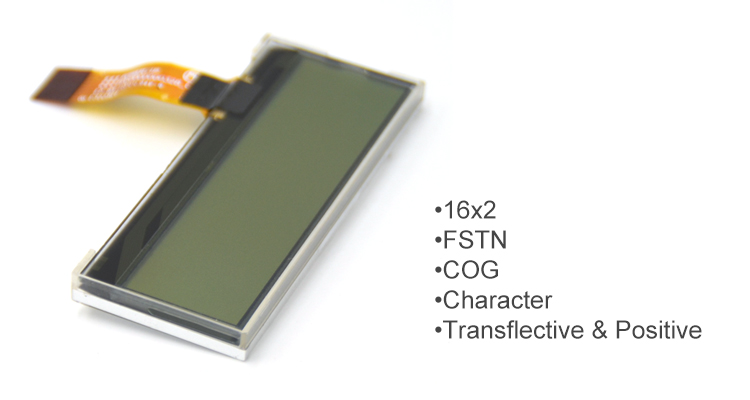

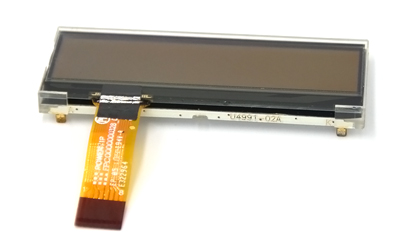

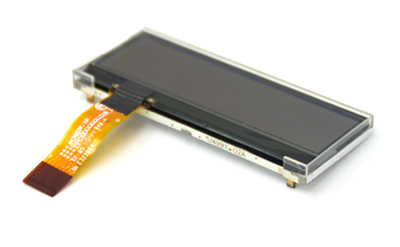

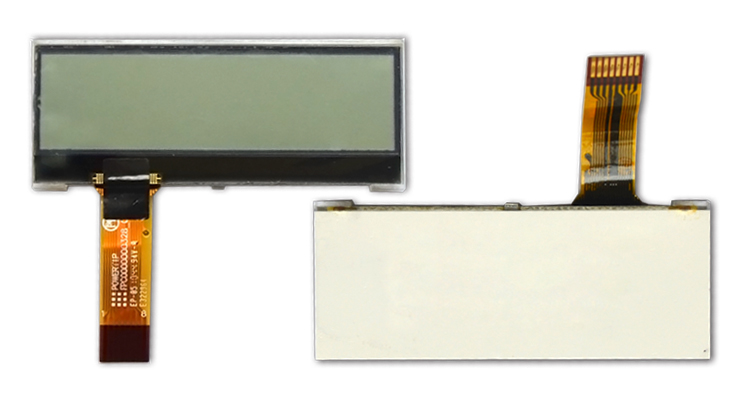

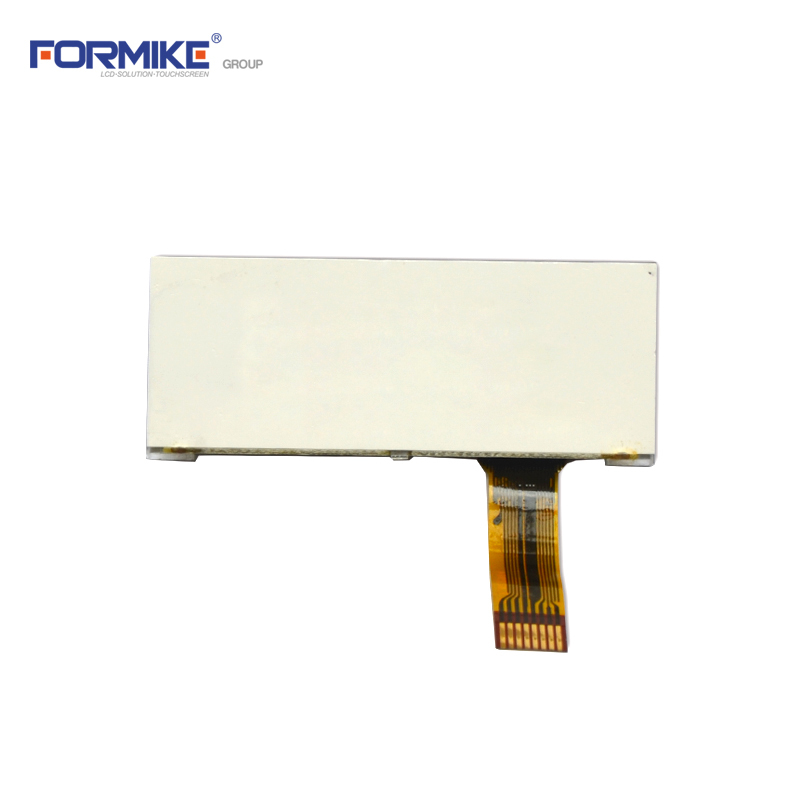

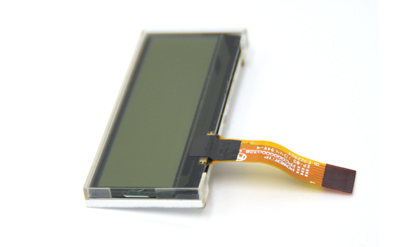

Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Positive 16 * 2 Character I2C LCD Display FSTN 1602 Custom Character COG Panel
Specifications
Controller :
ST7032I
Dimensions :
66.0mm * 26.5mm * 5.2mm
Supply Ability :
5000000000 pieces/year
Product Name :
16x2 I2C LCD Display FSTN Positive LCD 1602 Custom Characters COG Panel
Display format :
16character*2 line
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Type :
Transflective Positive
MOQ :
1 piece
Color :
Black display dot on white background with white backlight
Backlight :
LED
Model Number :
WC1602U8FSW7G
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
12 O'clock
Operating Voltage :
3.3V
Payment Terms :
T/T,L/C,Credit card,Cash
Display Type :
Character COG LCD Module
Display Mode :
FSTN
Interface :
8 Pin, I2C
Description

16x2 I2C LCD Display FSTN Positive LCD 1602 Custom Characters COG Panel

LCD Name 16x2 I2C LCD Display FSTN Positive LCD 1602 Custom Characters COG Panel

Display Format

16character*2 line

Display Mode

FSTN, Positive, Transflective

LCD Color

Display dot : Black

Background: White

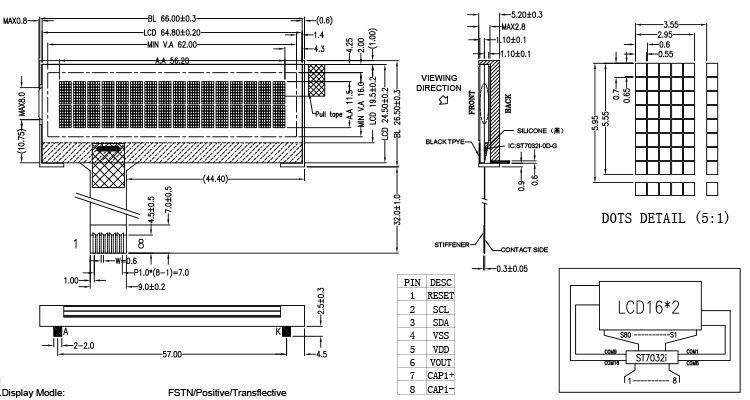

Active Area

56.2MIN(W) x11.5MIN(H)mm

Outline Dimension

66.0(W) x26 .5(H) x 5.2(T) mm

Viewing Area

62.0MIN(W) x16.0MIN(H)mm

Viewing Direction

12 O’clock

Interface Input Data

I2C

Backlight

WHITE

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃
