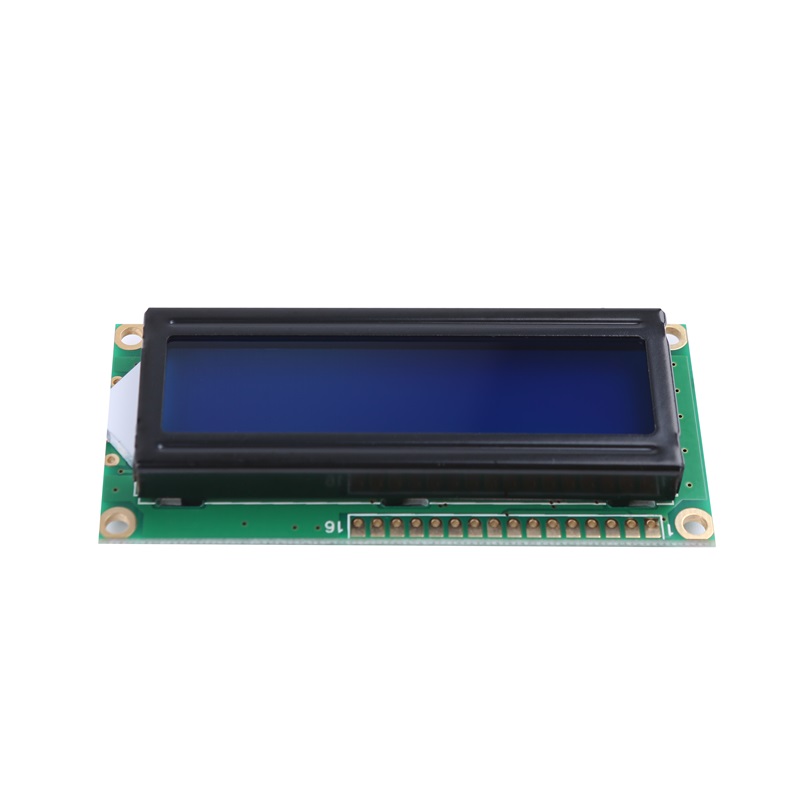

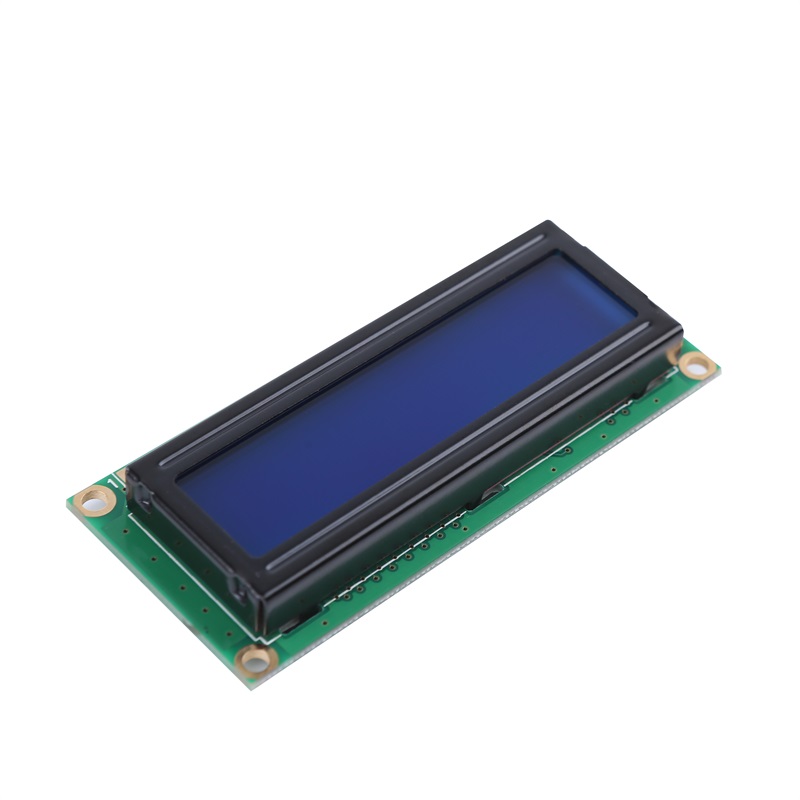

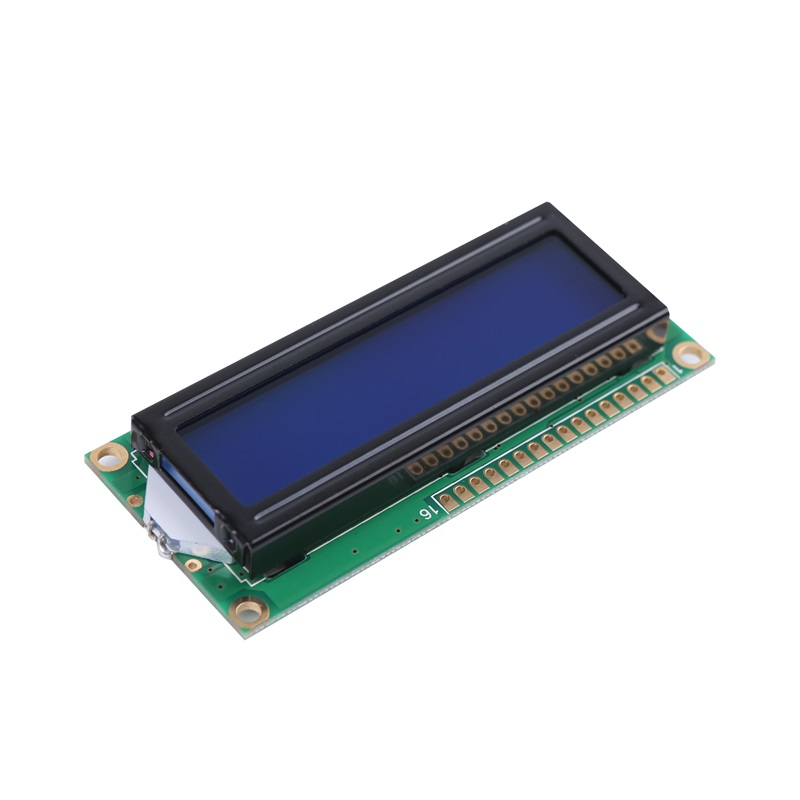

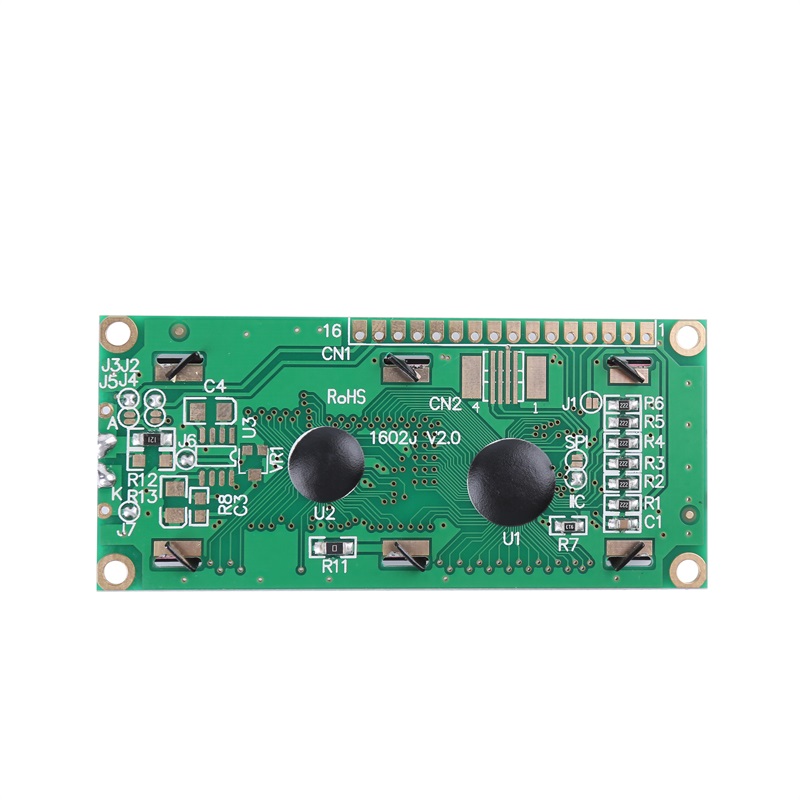

Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller
Specifications
Operating Temperature :
-20°C to 70°C
Backlight :
LED
Product Name :
2x16 LCD Screen Character LED 16x2 LCD Display
Dimensions :
80.0mm * 36.0mm * 12.5mm
Display Mode :
STN
Display Type :
Character LCD Module
Controller :
ST7066U / AIP31068
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Model Number :
WC1602B8
Place of Origin :
China
Interface :
16 Pin, 4-bit or 8-bit 6800 MPU
MOQ :
1 piece
Payment Terms :
T/T,L/C,Credit card,Cash
Backlight Color :
Usually Y-G or Blue or Gray
Operating Voltage :
3.3V / 5V
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Display format :
16character*2 line
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
6 O'clock
Description

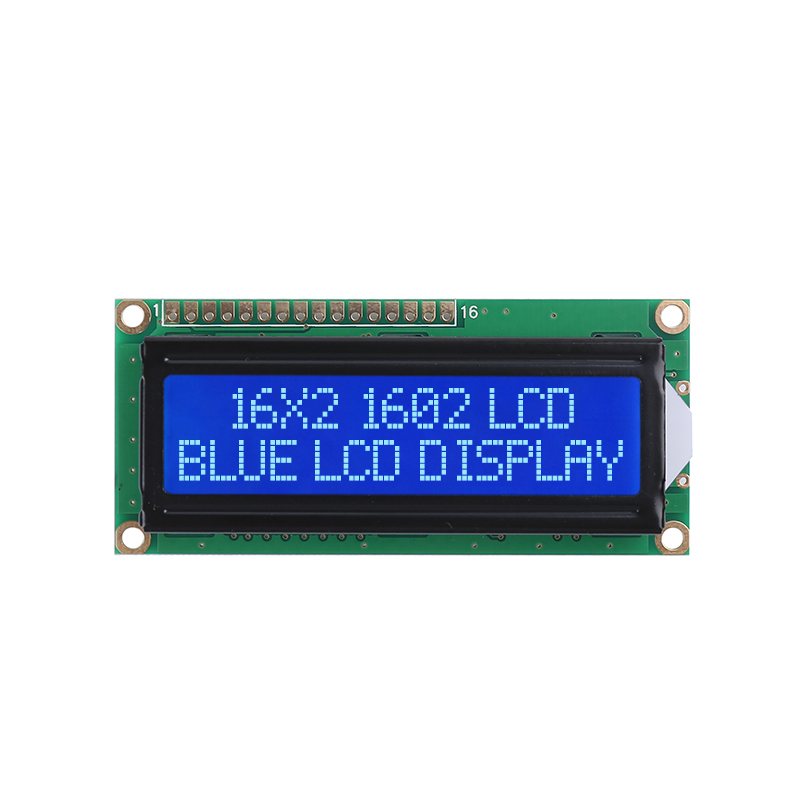

2x16 LCD Screen Character LED 16x2 LCD Display

Character LED 16x2 LCD Panel Display Screen Module AIP31068 Controller

Product Specification
LCD Name 2x16 LCD Screen Character LED 16x2 LCD Display
Display Format 16character*2 line
Module Size 80.0mm×36.0mm×12.5mm
View Area 64.5mm×16.0mm
Character Size 2.96mm×5.53mm
Character Pitch 3.55mm×5.98mm
IC AIP31068 or Eqv (Defualt English / Japan Font)
Interface

16 Pin, 4-bit or 8-bit 6800 MPU interface enabled;

Optional with IIC I2C SPI interface.
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1602B8SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1602B8SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1602B8SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1602B8SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1602B8SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1602B8SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
