Specifications
Operating Temperature :
-20°C to 70°C
Backlight :
LED
Interface :
16 Pin-6800 + 10 Pin-SPI
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Place of Origin :
China
Display Type :
STN LCD Display with 6800 and SPI Interface
Viewing Angle :
6 O'clock
Product Name :
16x2 LCD Module 2x16 Character LCD COB 1602 Display
Brand Name :
Formike
Controller :
ST7070
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Voltage :
3.3V / 5V
Model Number :
WC1602B6
MOQ :
1 piece
Display Mode :
STN
Display format :
16character*2 line
Backlight Color :
Usually Y-G or Blue or Gray
Supply Ability :
5000000000 pieces/year
Dimensions :
81mm * 36mm * 11mm
Packaging Details :
Tray + Inner Box + Carton
Description

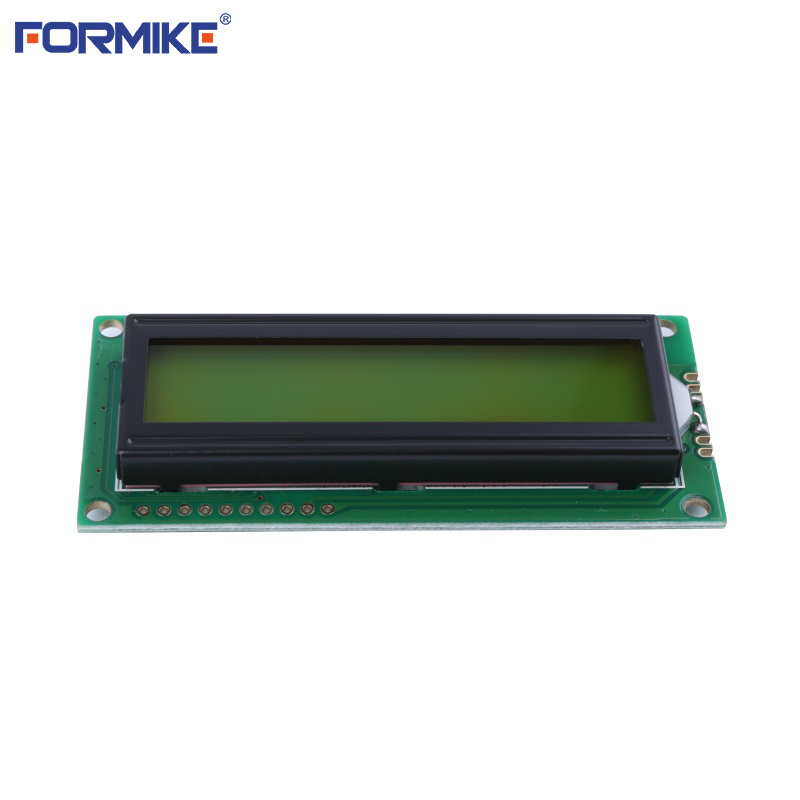

16x2 LCD Module 2x16 Character LCD COB 1602 Display

Character 16x2 LCD Panel Module COB 1602 Display 6800 SPI Interface Oem

Product Specification
LCD Name 16x2 LCD Module 2x16 Character LCD COB 1602 Display
Display Format 16character*2 line
Module Size 81.0mm×36.0mm×11.0mm
View Area 64.50mm×14.5mm
Character Size 2.90mm×5.15mm
Character Pitch 3.52mm×5.85mm
IC ST7070 or Eqv (Defualt English / Japan Font)

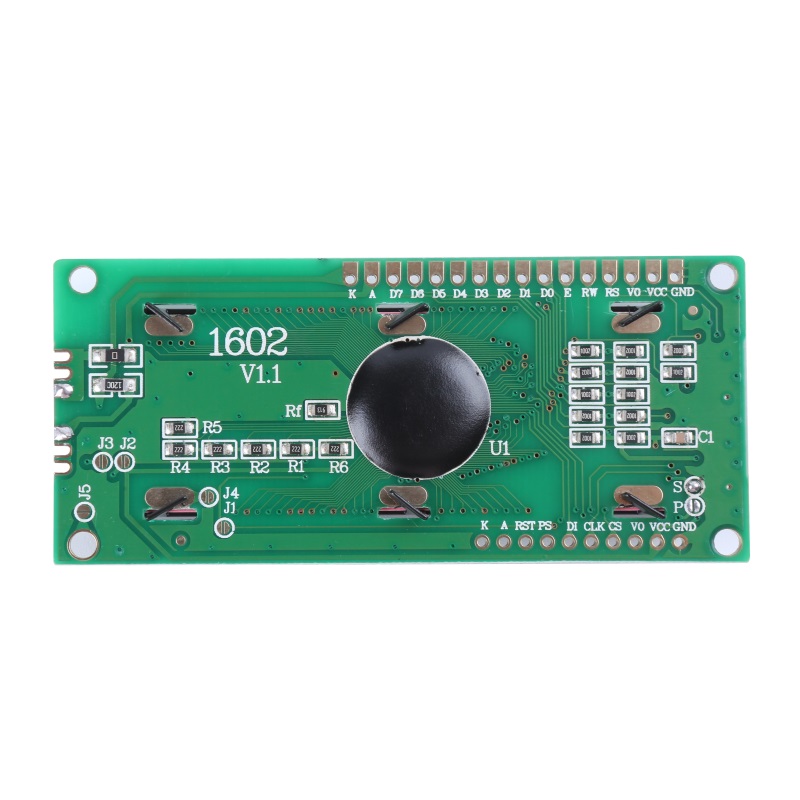

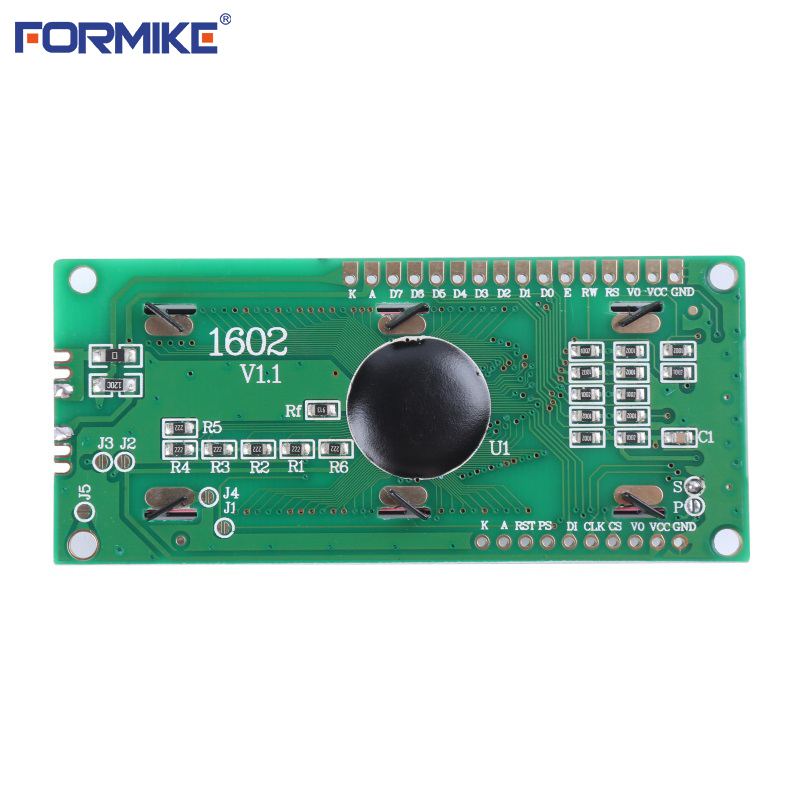

Interface

16 Pin 4-bit or 8-bit 6800 MPU interface,

10 Pin SPI interface,
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color

Interface
1 WC1602B6SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 6800
2 WC1602B6SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color SPI
3 WC1602B6SGW6B-A1 STN Negative Blue White Color White Color Blue Color 6800
4 WC1602B6SGW6B-A2 STN Negative Blue White Color White Color Blue Color SPI
5 WC1602B6SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 6800
6 WC1602B6SKW6B-A2 STN GREY Positive White Color Black Color Grey Color SPI
