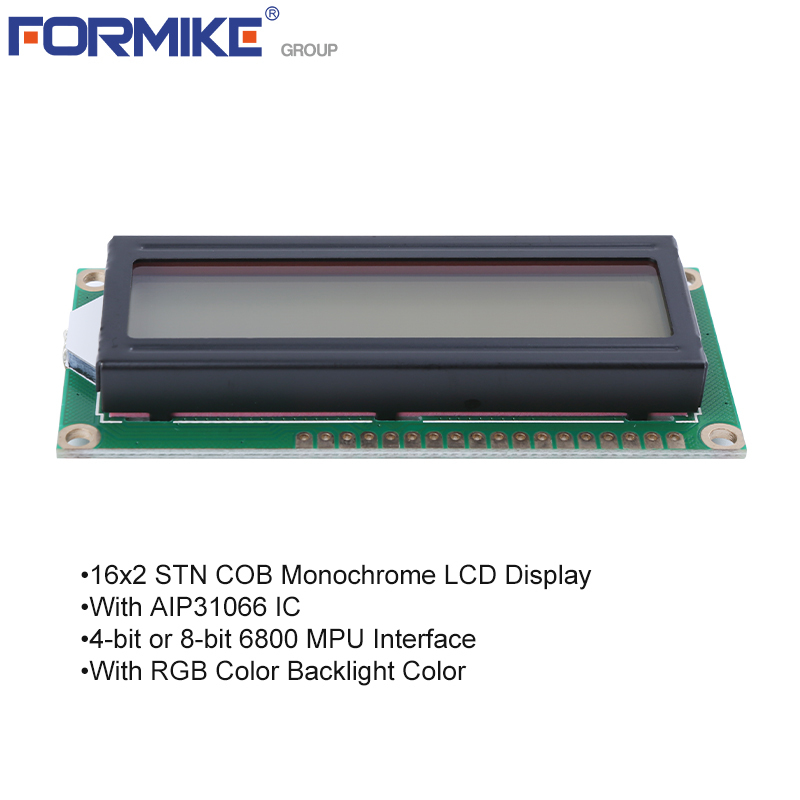

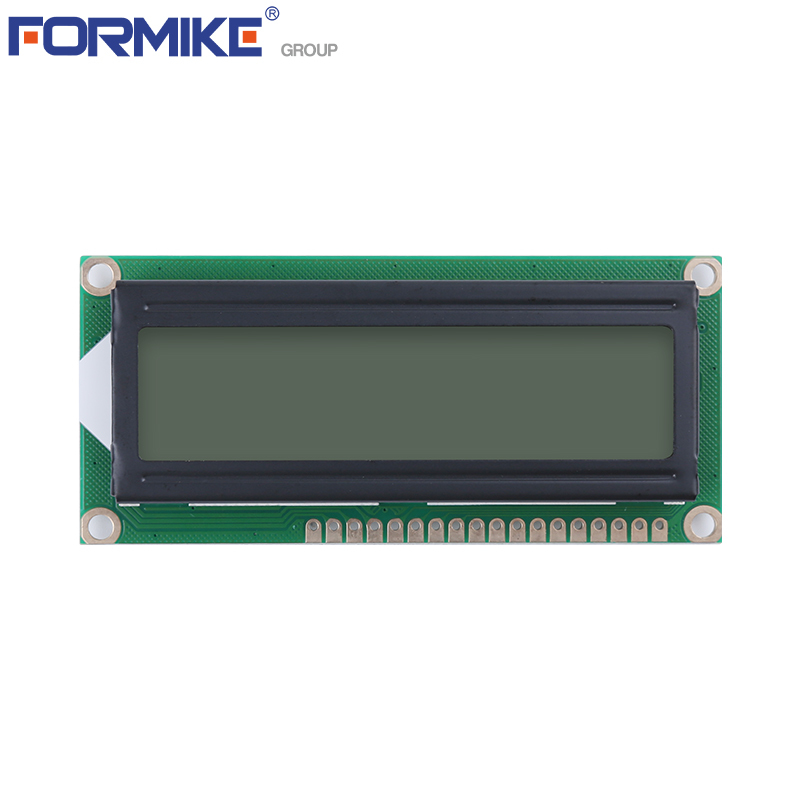

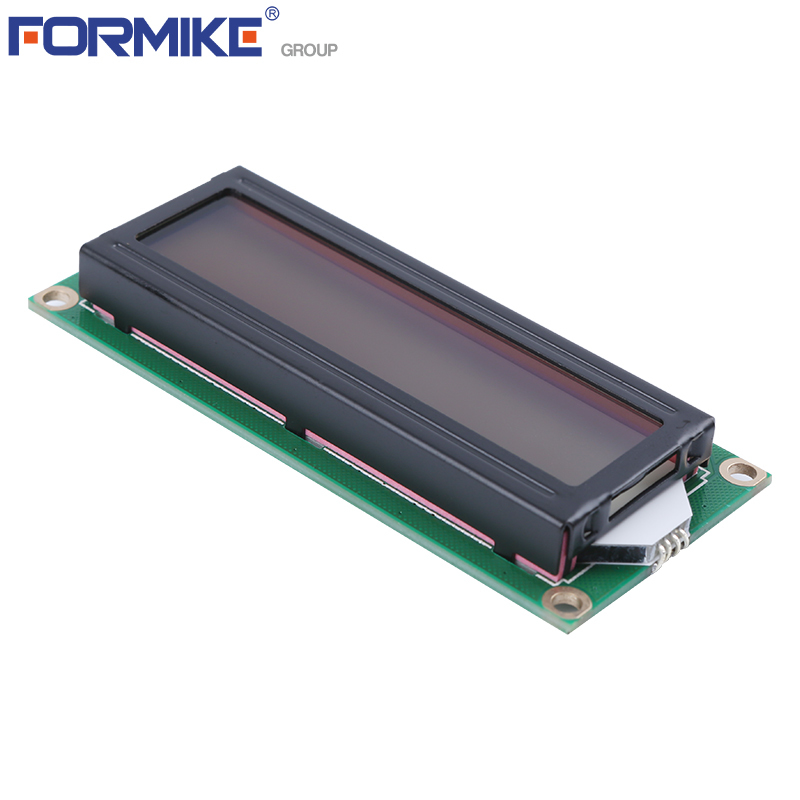

Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller
Specifications
Supply Ability :
5000000000 pieces/year
Display Type :
Alphanumeric LCD Display
Controller :
ST7066U or AIP31066
Product Name :
Alphanumeric LCD 16x2 Display STN 1602 LCD Screen
MOQ :
1 piece
Dimensions :
80.0mm * 36.0mm * 12.5mm
Brand Name :
Formike
Display format :
16character*2 line
Backlight :
LED
Display Mode :
STN
Interface :
18 Pin, 4-bit or 8-bit 6800 MPU
Viewing Angle :
6 O'clock
Operating Voltage :
3.3V / 5V
Packaging Details :
Tray + Inner Box + Carton
Backlight Color :
Usually Y-G or Blue or Gray or VA Black
Model Number :
WC1602B7
Place of Origin :
China
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Description

Alphanumeric LCD 16x2 Display STN 1602 LCD Screen

Alphanumeric 16x2 LCD Display Module STN 1602 Screen ST7066U Controller

Product Specification
LCD NameAlphanumeric LCD 16x2 Display STN 1602 LCD Screen
Display Format16character*2 line

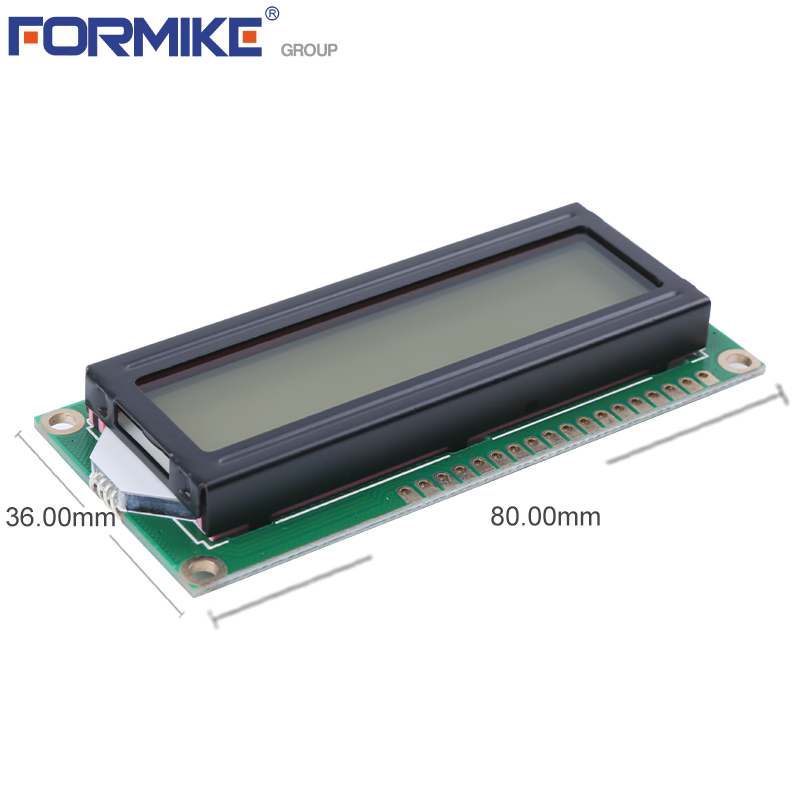

Module Size80.0mm×36.0mm×12.5mm
View Area 64.5mm×16.0mm
Character Size2.96mm×5.53mm
Character Pitch3.55mm×5.98mm
ICAIP31066 or Eqv (Defualt English / Japan Font)
Interface18 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias

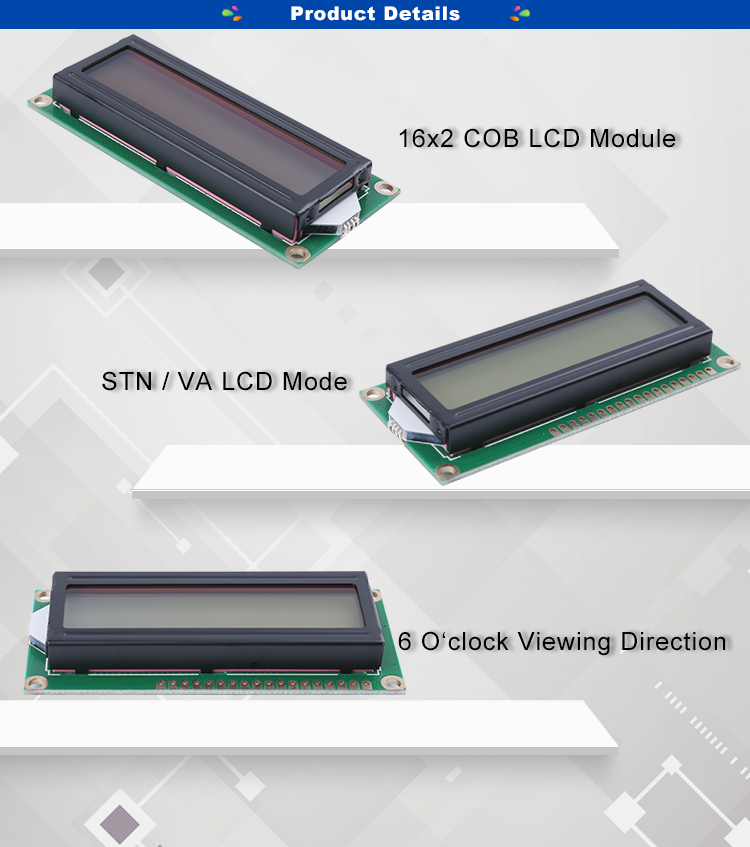

Viewing Direction6 O’clock
Operating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃

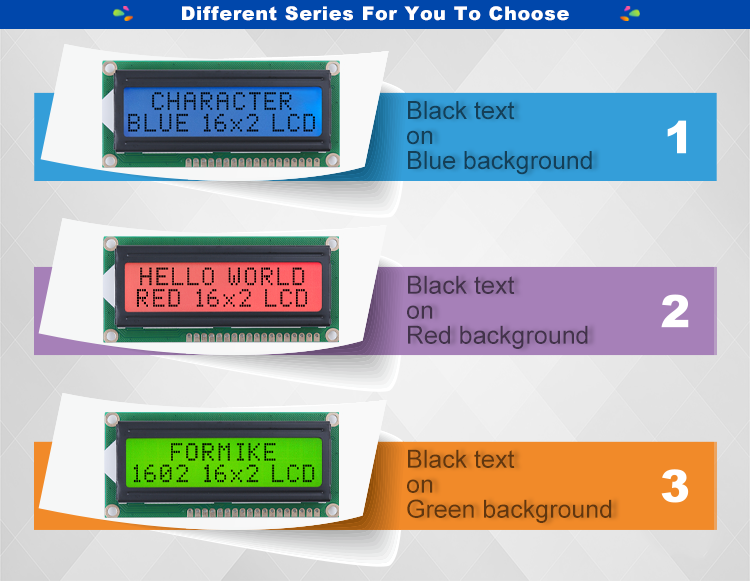

Different series type LCD mode for you to choose
No.Part Number LCD Type Backlight ColorFont Color Background Color Voltage
1WC1602B7VVE6B-A1VA Black negativeRGB ColorRGB ColorBlack Color5V
2WC1602B7VVE6B-A2VA Black negativeRGB ColorRGB ColorBlack Color3.3V

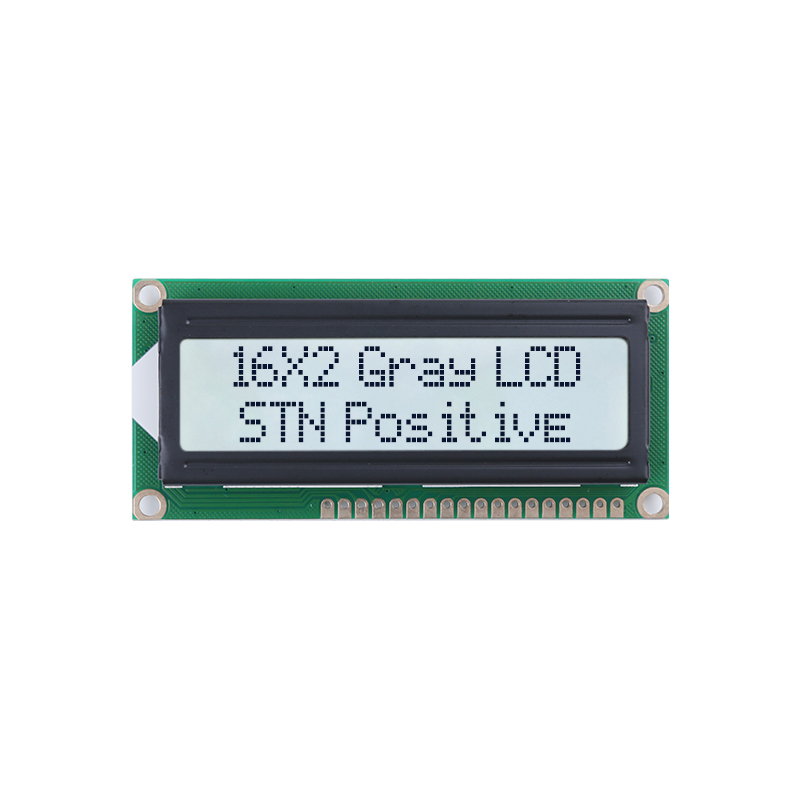

3WC1602B7SKE6B-A1STN Positive GrayRGB ColorBlack ColorRGB Color5V
4WC1602B7SKE6B-A2STN Positive GrayRGB ColorBlack ColorRGB Color3.3V
