Specifications
Backlight :
LED
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Product Name :
Character Display 16x2 LCD Screen With ST7066U Or AIP31066 Driver IC
Interface :
14 Pin, 4-bit or 8-bit 6800 MPU
MOQ :
1 piece
Controller :
ST7066U or AIP31066
Dimensions :
85mm * 30mm * 13mm
Operating Voltage :
3.3V / 5V
Model Number :
WC1602B2
Display format :
16character*2 line
Packaging Details :
Tray + Inner Box + Carton
Display Type :
LCD Character Display
Payment Terms :
T/T,L/C,Credit card,Cash
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Supply Ability :
5000000000 pieces/year
Display Mode :
STN
Description
Product Details

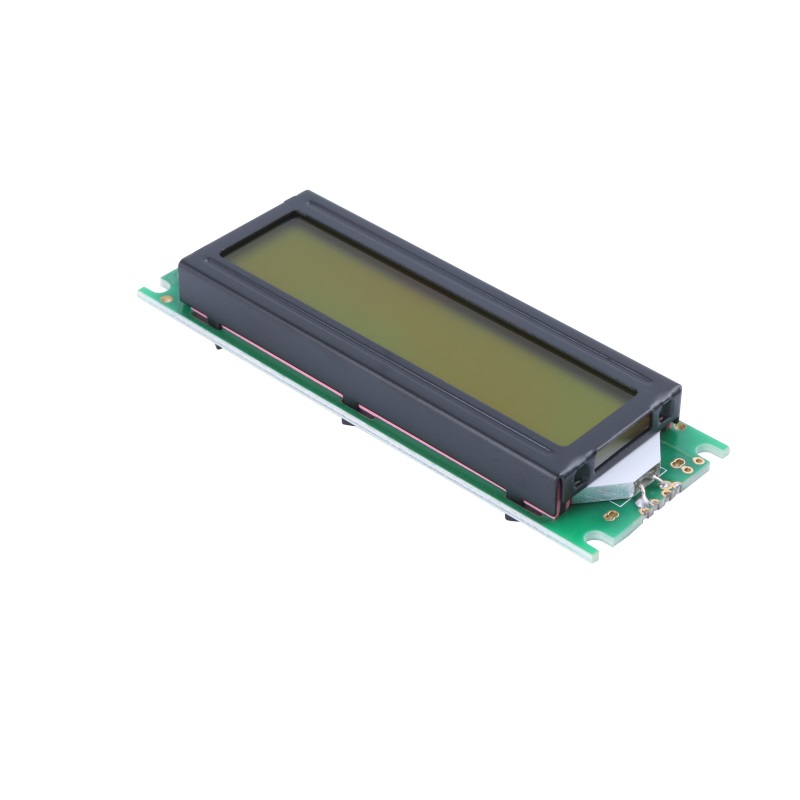

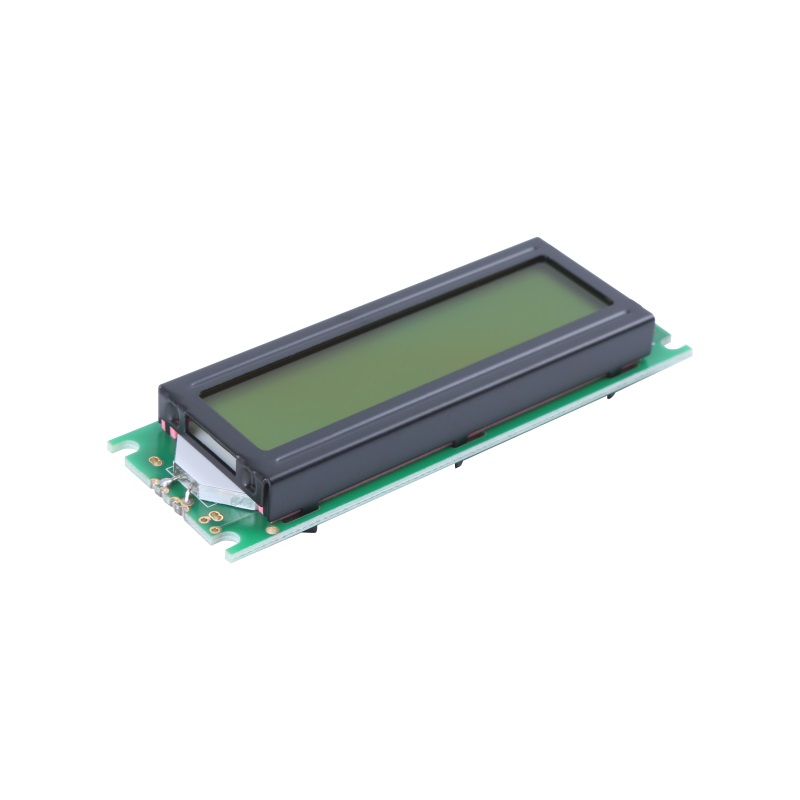

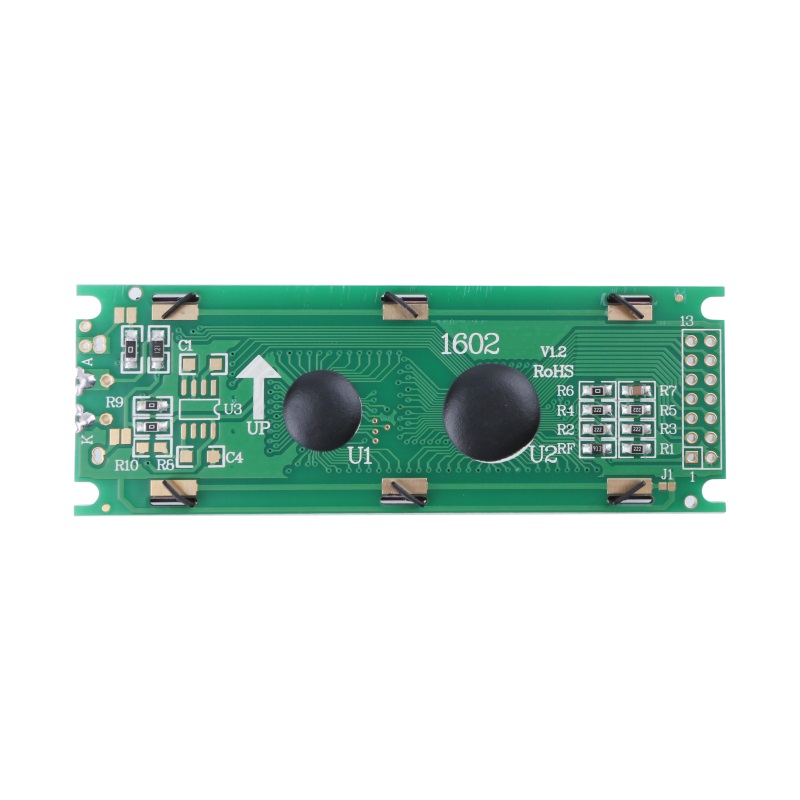

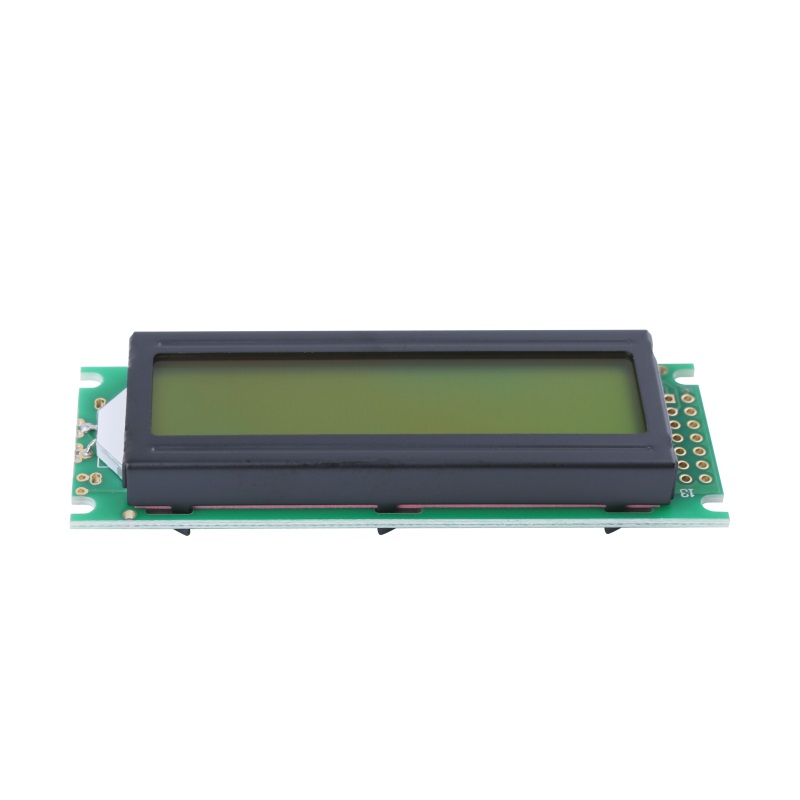

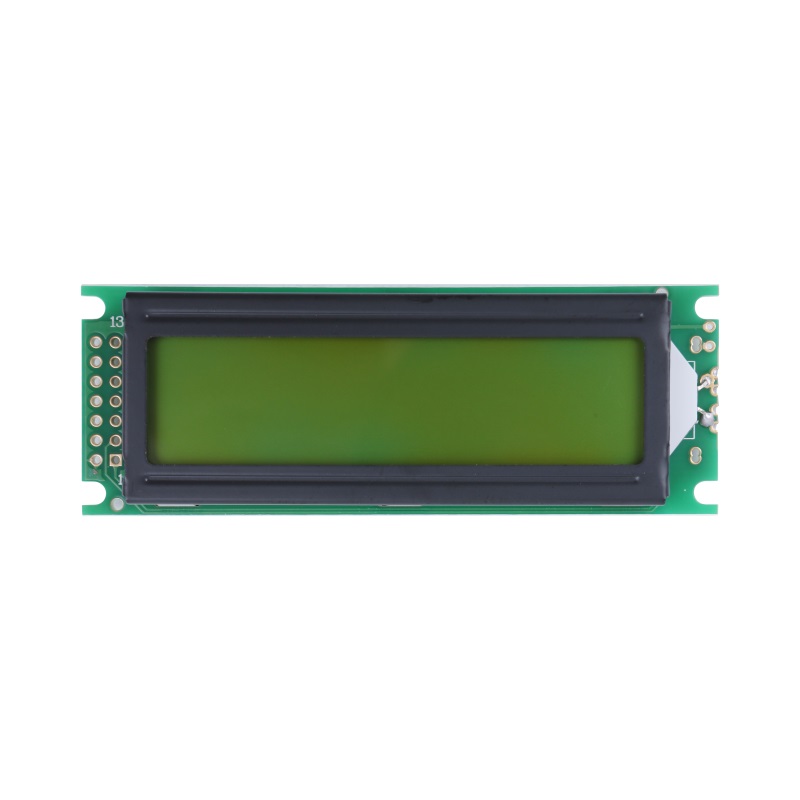

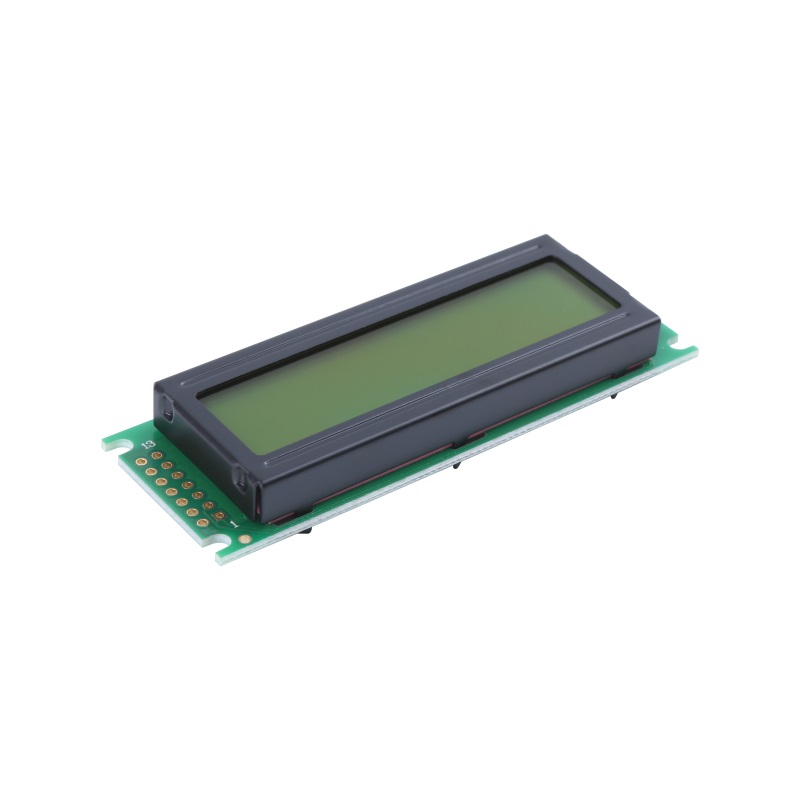

Character Display 16x2 LCD Screen With ST7066U Or AIP31066 Driver IC

ODM Alphanumeric Character 16x2 LCD Screen Display With ST7066U Or AIP31066 Driver IC

Product Specification
LCD Name Character Display 16x2 LCD Screen With ST7066U Or AIP31066 Driver IC
Display Format 16character*2 line
Module Size 85.0mm×30.0mm×13.0mm
View Area 64.5mm×16.0mm
Character Size 2.96mm×5.53mm
Character Pitch 3.55mm×5.98mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 14 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1602B2SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1602B2SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1602B2SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1602B2SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1602B2SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1602B2SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
