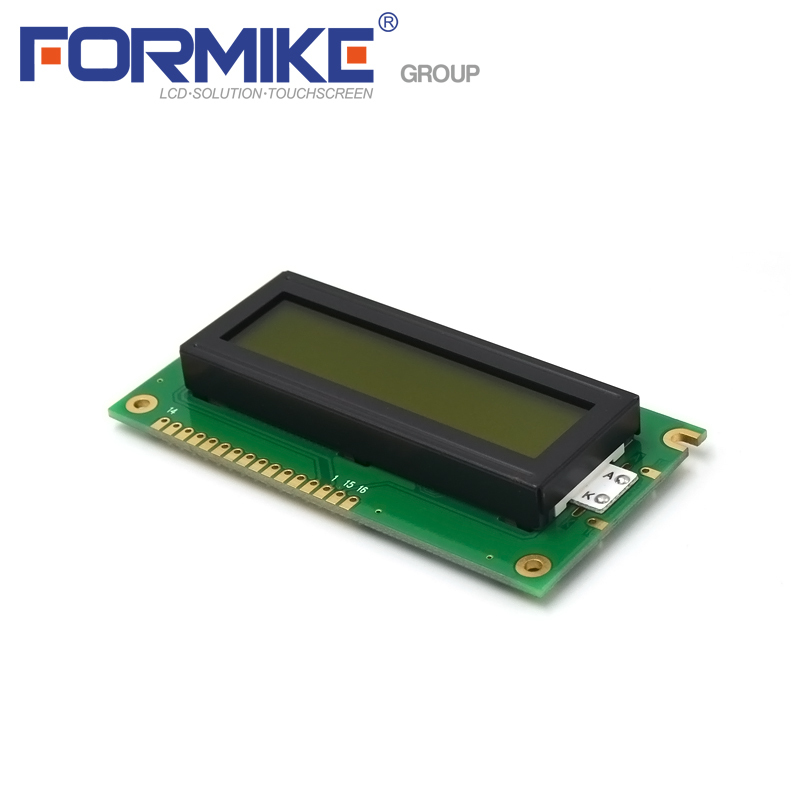

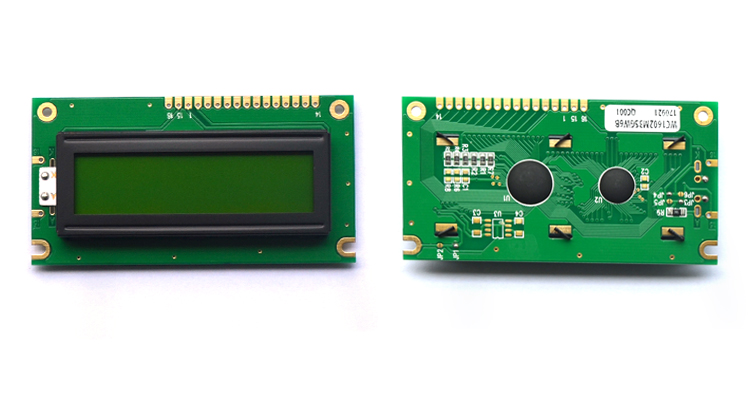

16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
16 Pin 16x2 LCD Panel Display Custom Character Lcm1602 Dot Matrix Screen MPU Interface
Specifications
Color :
Black display dot on yellow-green(or blue) background with white backlight
Interface :
16Pin, 4-bit or 8-bit MPU
Dimensions :
84.0mm * 44.0mm * 13.5mm
Type :
Transmissive Negative
Operating Voltage :
3.3V
Place of Origin :
China
Product Name :
1602 LCD Display 16x2 LCD Custom Character Lcm1602 Screen with 16 Pin 4-BIT or 8-BIT MPU Interface
Backlight :
LED
Display Type :
Character LCD Screen
Model Number :
WC1602M3SGW6B
Controller :
ST7066U-0A
Display Mode :
STN
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Display format :
16character*2 line
Brand Name :
Formike
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Viewing Angle :
6 O'clock
Supply Ability :
5000000000 pieces/year
Description

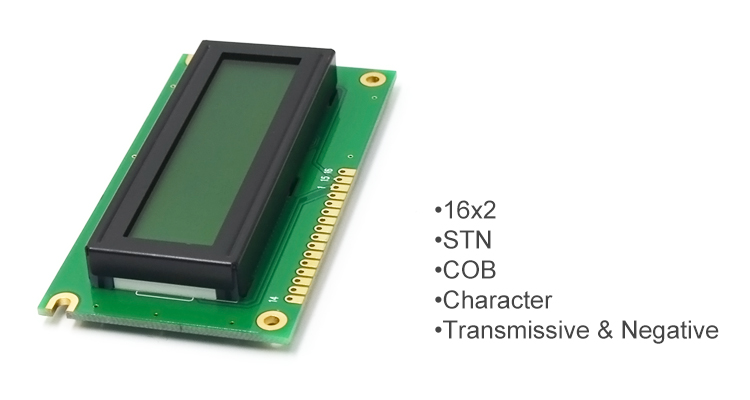

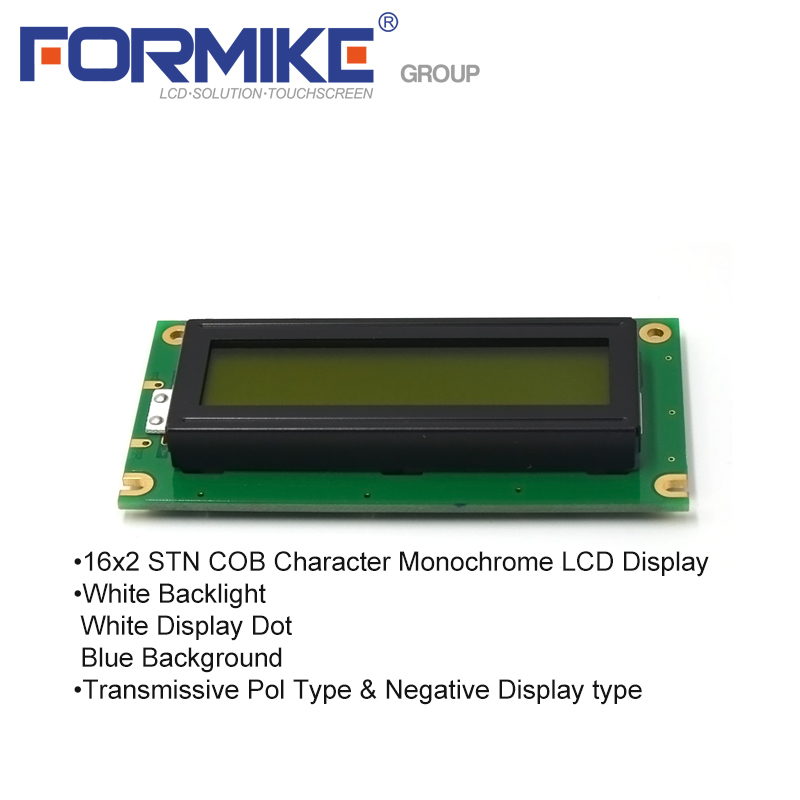

1602 LCD Display 16x2 LCD Custom Character Lcm1602 Screen with 16 Pin 4-BIT or 8-BIT MPU Interface

LCD Name 1602 LCD Display 16x2 LCD Custom Character Lcm1602 Screen with 16 Pin 4-BIT or 8-BIT MPU Interface

Display Format

16character*2 line

Display Mode

STN, Transmissive, Negative

LCD Color

Display dot : White
Background: Blue

Display Type

Character COB

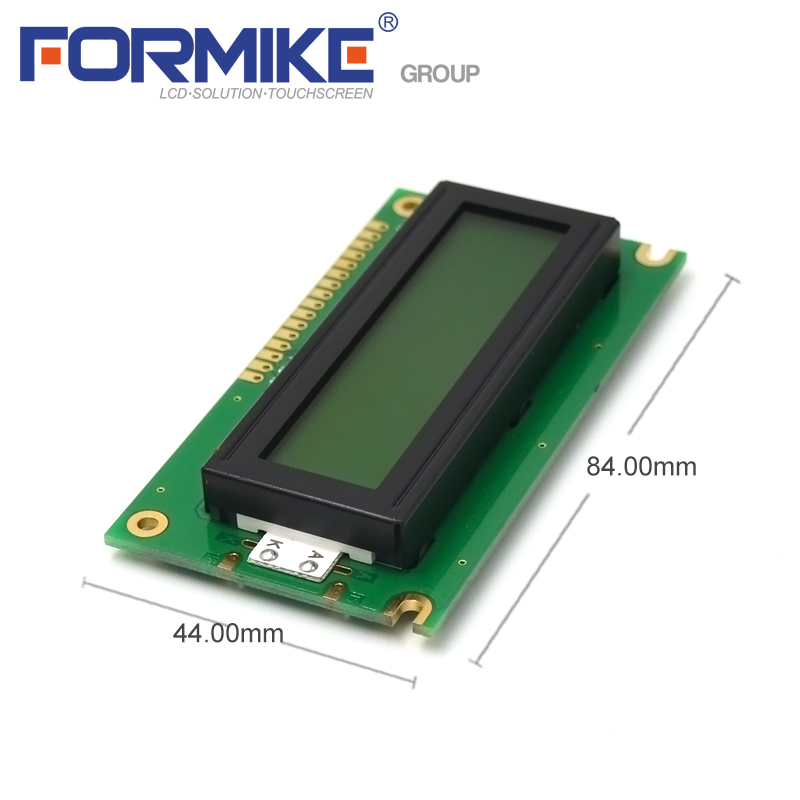

Outline Dimension

84.0(W) x44.0(H) x 13.5(T) mm

Viewing Area

61.0MIN(W) x15.8MIN(H)mm
Drive IC ST7066U-0A Pin No. 16 Pin

Viewing Direction

6 O’clock

Interface Input Data

4-bit or 8-bit MPU

Backlight

White

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃
