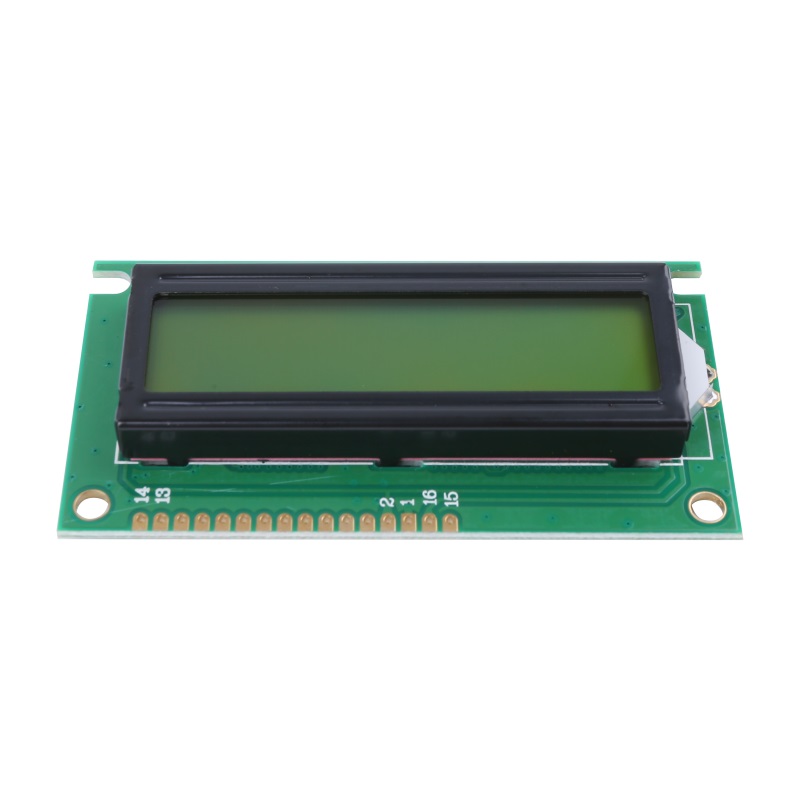

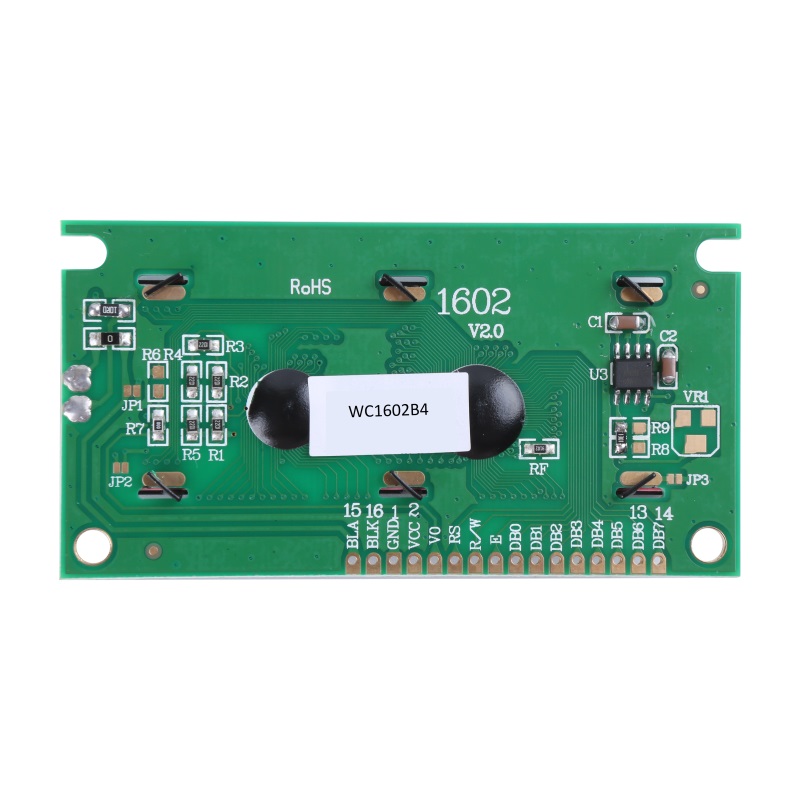

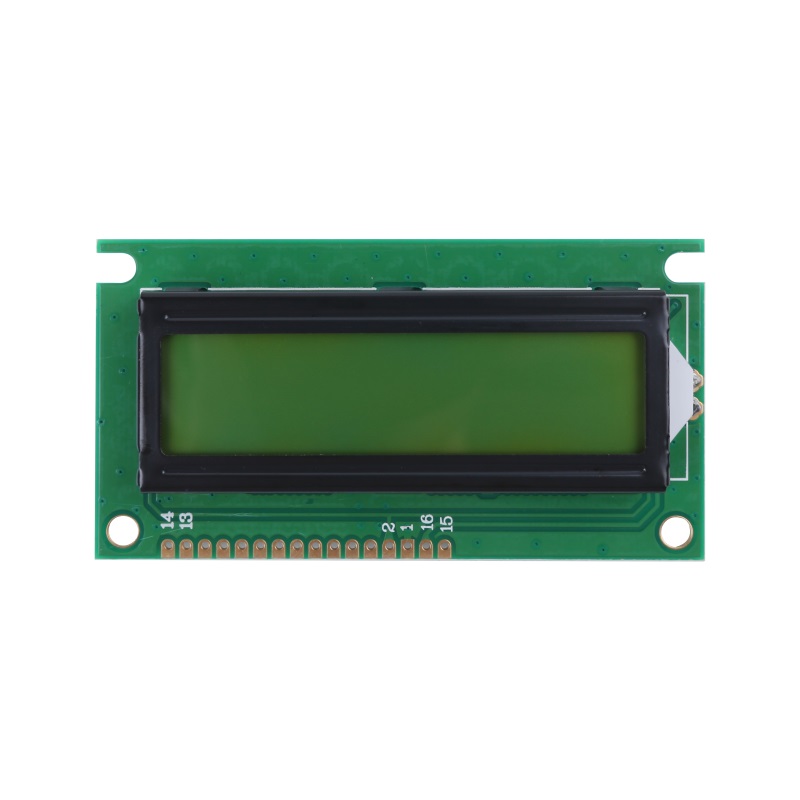

Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
Specifications
Place of Origin :
China
Backlight Color :
Usually Y-G or Blue or Gray
Dimensions :
84mm * 44mm * 13mm
Display Type :
LCD Character Display
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Model Number :
WC1602B4
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Backlight :
LED
Interface :
16Pin, 4-bit or 8-bit 6800 MPU
MOQ :
1 piece
Product Name :
16x2 Character LCD Display STN LCM 1602 Monochrome LCD Screen
Display Mode :
STN
Controller :
ST7066U or AIP31066
Operating Voltage :
3.3V / 5V
Operating Temperature :
-20°C to 70°C
Display format :
16character*2 line
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
6 O'clock
Description

16x2 Character LCD Display STN LCM 1602 Monochrome LCD Screen

Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen

Product Specification
LCD Name 16x2 Character LCD Display STN LCM 1602 Monochrome LCD Screen
Display Format 16character*2 line
Module Size 84.0mm×44.0mm×13.0mm
View Area 64.5mm×16.0mm
Character Size 2.96mm×5.53mm
Character Pitch 3.55mm×5.98mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1602B4SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1602B4SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1602B4SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1602B4SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1602B4SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1602B4SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V

Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen

Character 16x2 LCD Panel Display STN LCM 1602 Monochrome LCD Screen
