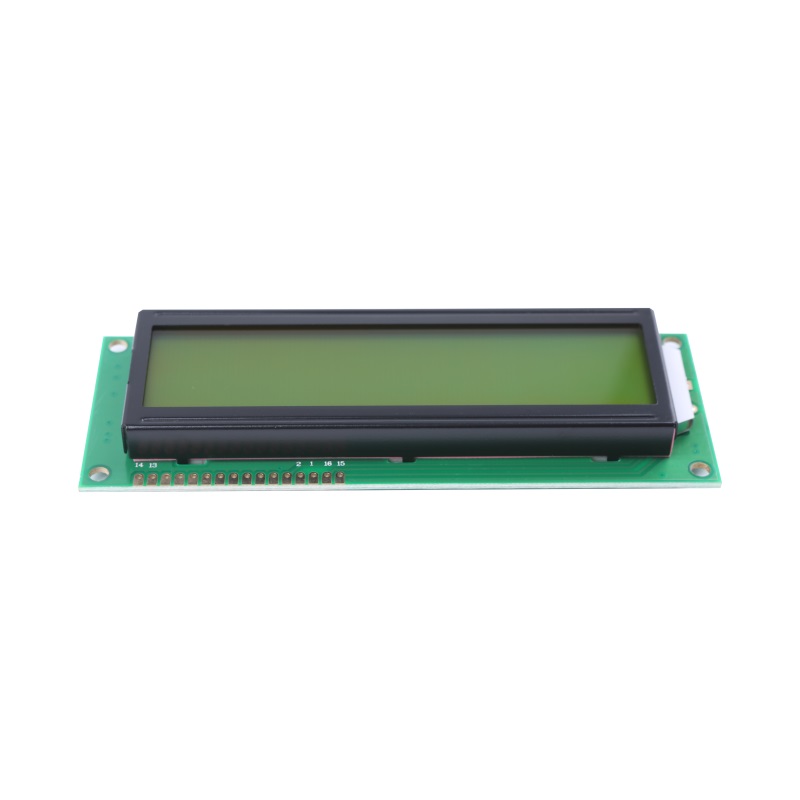

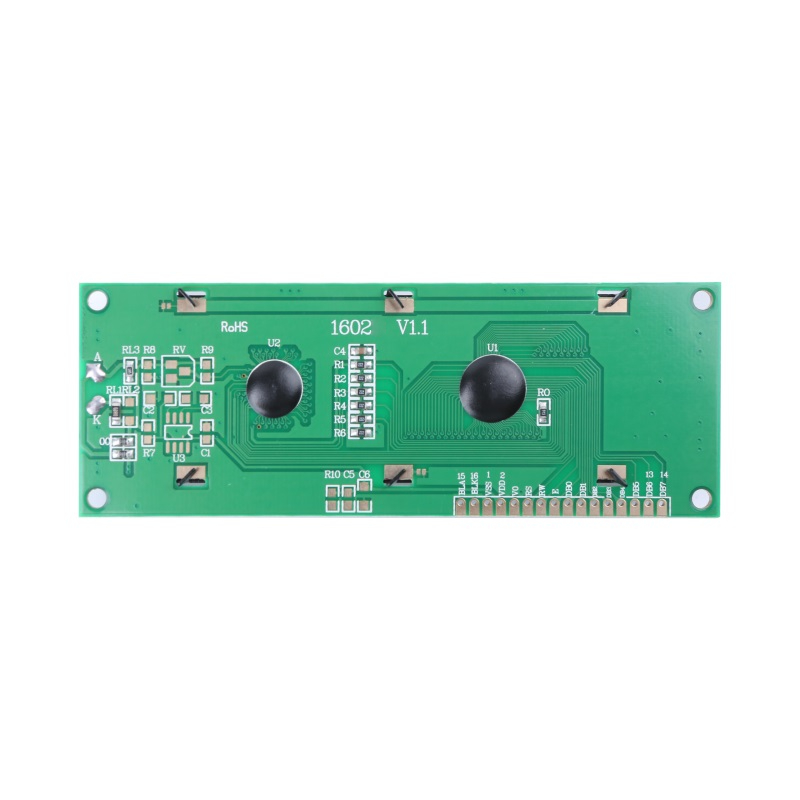

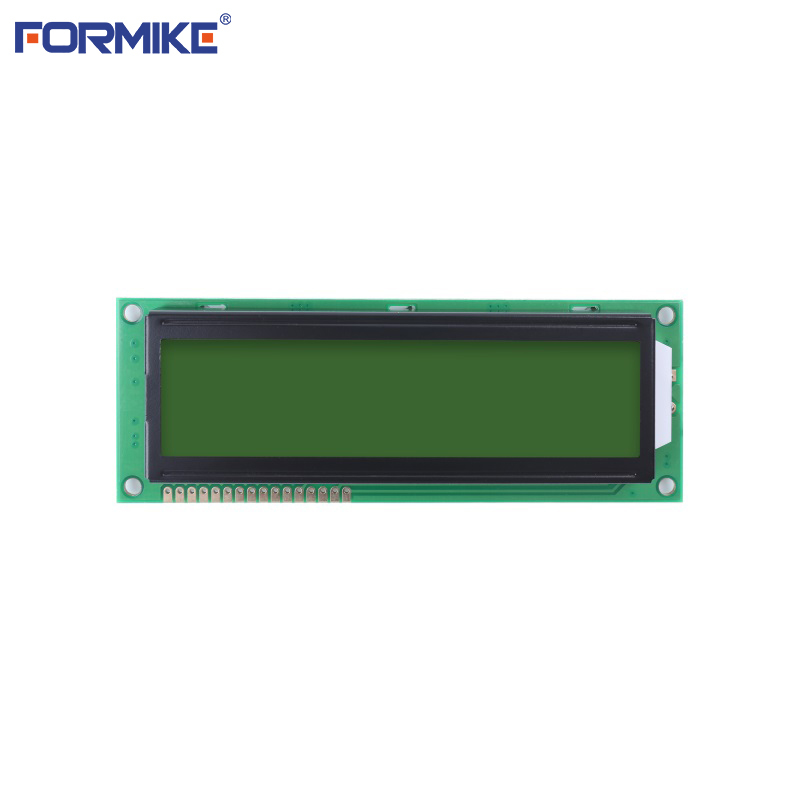

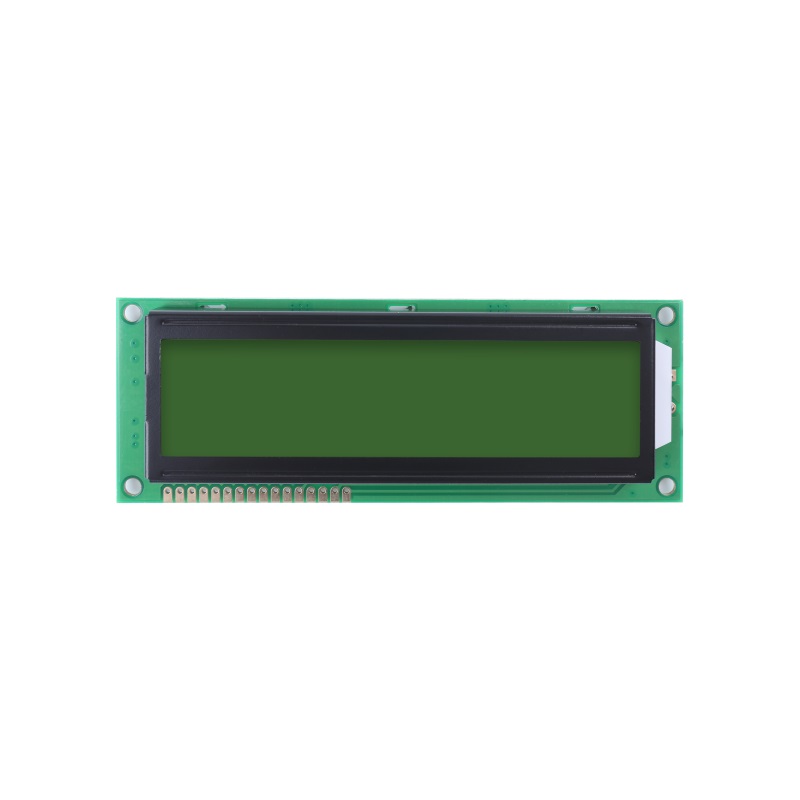

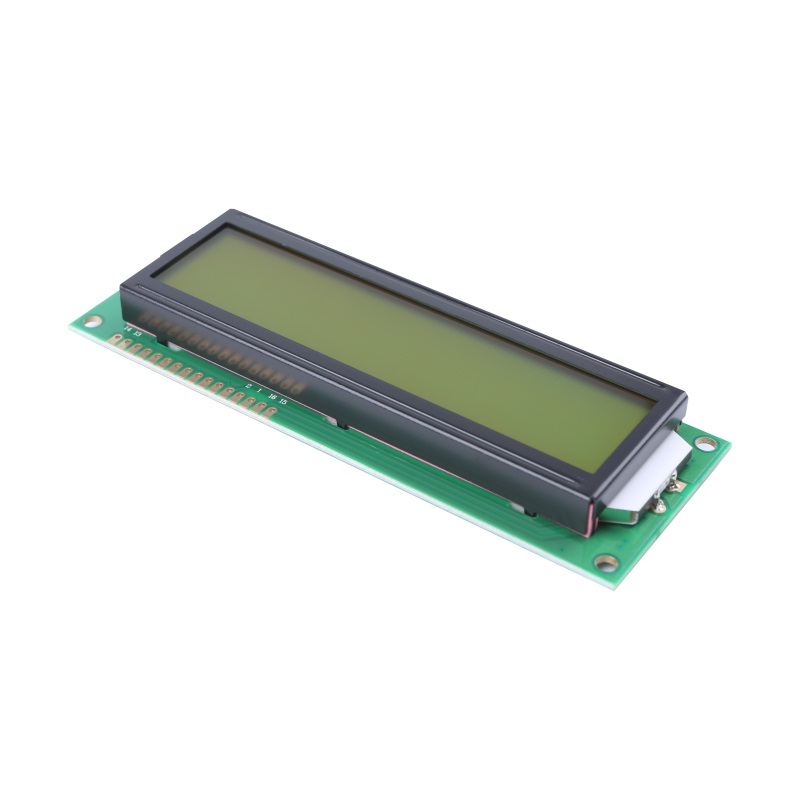

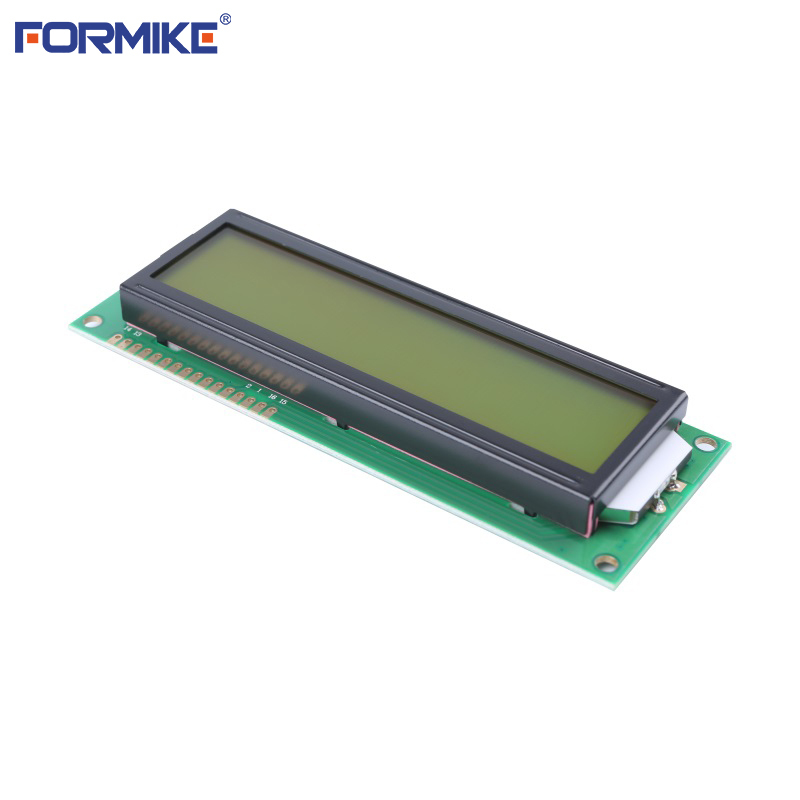

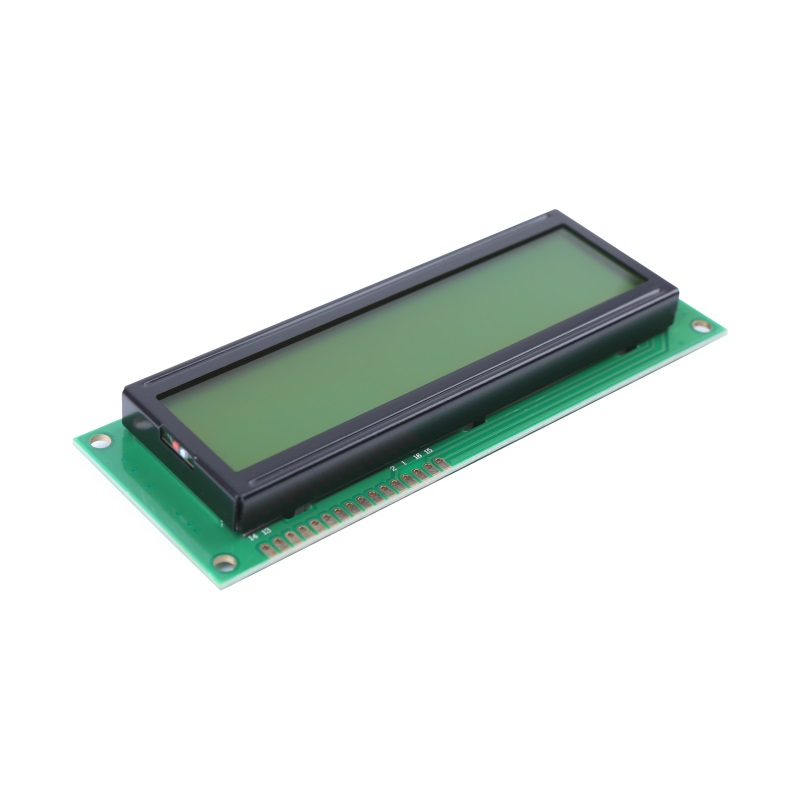

STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU
Specifications
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
122.0mm * 44.0mm * 13.5mm
Display Type :
Character Display
Product Name :
STN COB LCD Module 16x2 Character LCD Alphanumeric Display
Place of Origin :
China
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Model Number :
WC1602B1
Display format :
16character*2 line
Operating Voltage :
3.3V / 5V
Interface :
16Pin, 4-bit or 8-bit 6800 MPU
Backlight :
LED
MOQ :
1 piece
Payment Terms :
T/T,L/C,Credit card,Cash
Controller :
ST7066U or AIP31066
Display Mode :
STN
Supply Ability :
5000000000 pieces/year
Backlight Color :
Usually Y-G or Blue or Gray
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle :
6 O'clock
Description
Product Details

STN COB LCD Module 16x2 Character LCD Alphanumeric Display

STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU

Product Specification
LCD Name STN COB LCD Module 16x2 Character LCD Alphanumeric Display
Display Format 16character*2 line
Module Size 122.0mm*44.0mm*13.5mm
View Area 99.0mm*24.0mm
Character Size 4.84mm*9.66mm
Character Pitch 6.00mm*10.36mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+60℃
Storage Temperature -30℃~+70℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1602B1SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1602B1SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1602B1SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1602B1SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1602B1SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1602B1SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
