Specifications
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Brand Name :
Formike
Product Name :
Character LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface
Display Type :
Character LCD
Model Number :
WC1602B0
Display format :
16character*2 line
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
16 Pin, 4-bit or 8-bit 6800 MPU
Operating Temperature :
-20°C to 70°C
Supply Ability :
5000000000 pieces/year
Dimensions :
80.0mm * 36.0mm * 12.0mm
Packaging Details :
Tray + Inner Box + Carton
Operating Voltage :
3.3V / 5V
Backlight :
LED
Place of Origin :
China
Controller :
ST7066U
MOQ :
1 piece
Display Mode :
STN
Description

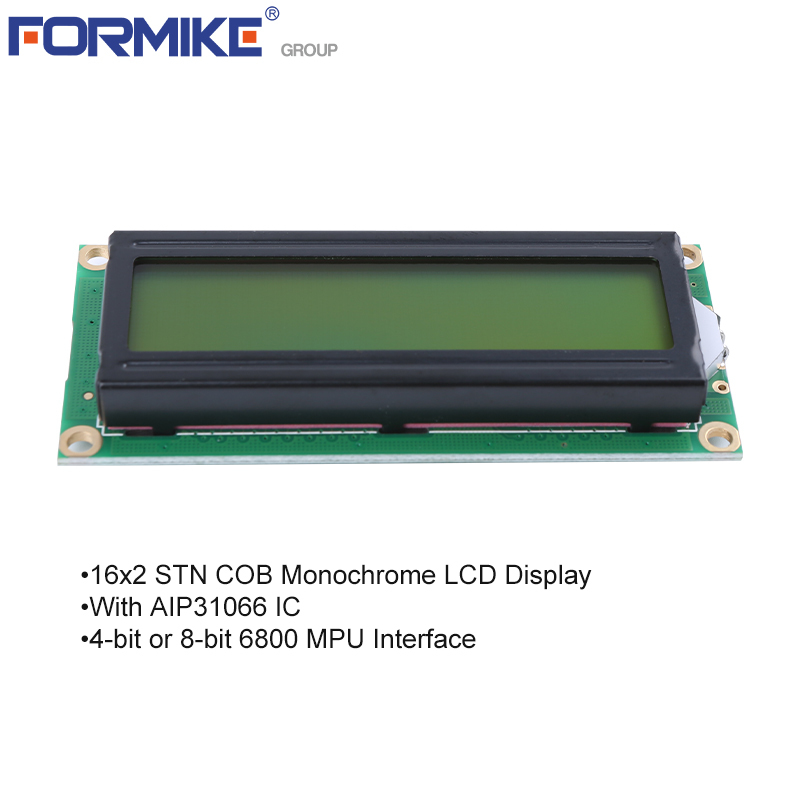

Character LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface

LED Character LCD Display 16 Pin 16 * 2 LCD Panel Module Customized

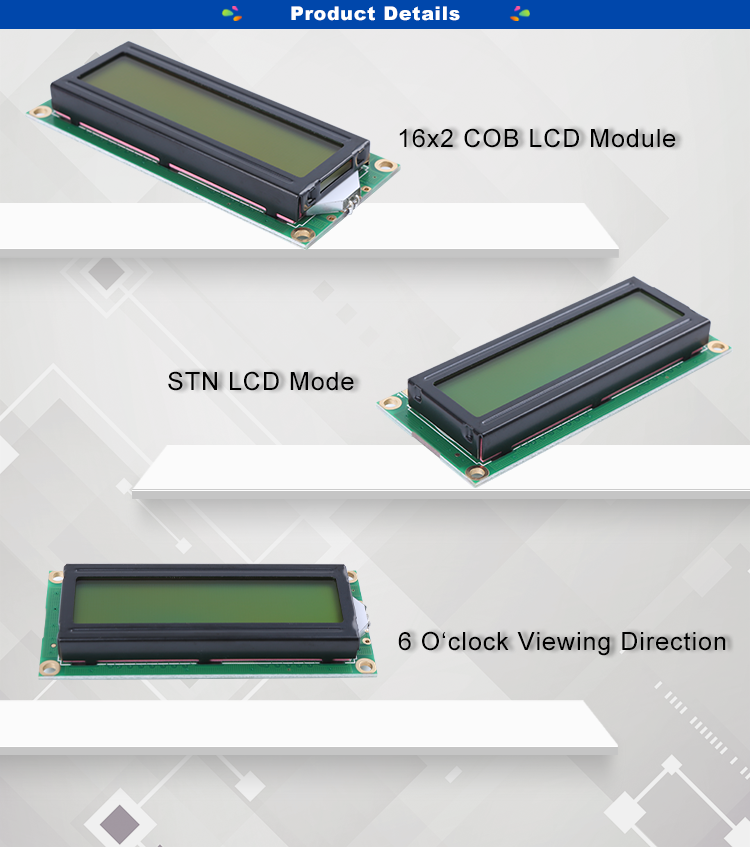

Product Specification
LCD Name Character LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface
Display Format 16character*2 line
Module Size 80.0mm×36.0mm×12.5mm
View Area 64.5mm×16.0mm
Character Size 2.96mm×5.53mm
Character Pitch 3.55mm×5.98mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃

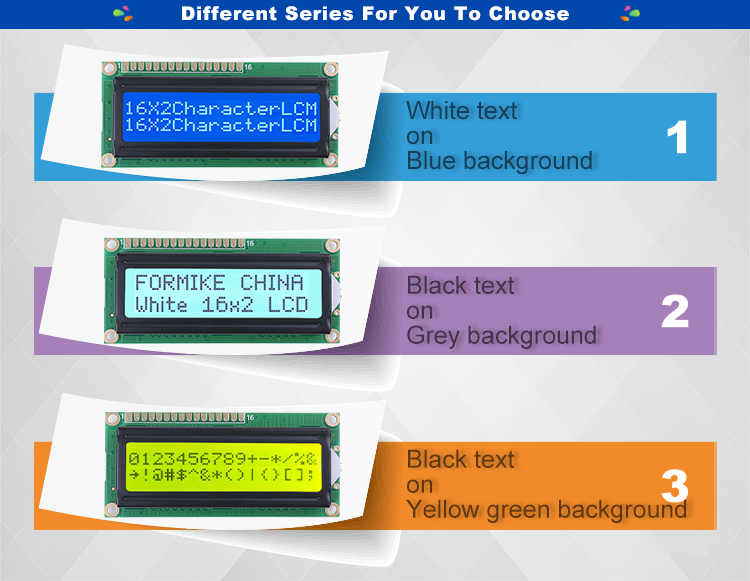

Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC1602B0SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC1602B0SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC1602B0SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC1602B0SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC1602B0SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC1602B0SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
