25mm 230g Zero Point Pallet System CNC Workholding Ocating Pins For Fixtures
25mm 230g Zero Point Pallet System CNC Workholding Ocating Pins For Fixtures
25mm 230g Zero Point Pallet System CNC Workholding Ocating Pins For Fixtures
25mm 230g Zero Point Pallet System CNC Workholding Ocating Pins For Fixtures
Specifications
Brand Name :
ADJIG
Model Number :
DWJT-138M
Place of Origin :
Chongqing, China
MOQ :
1
Price :
71 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Matching Locator Model :
LQ-138M
Unlock method :
Air pressure unlocking, spring mechanical locking
Repeatability :
＜0.005mm
Weight :
230g
Description

Precision Locating Pin for LQ-138M Zero-Point Positioning Clamping System CNC Workholding

Characteristics:
1. High precision, hardened
2. Restricts freedom in X and Y directions Suitable for LO-138M zero positioner

This Precision Locating Pin is the critical component for achieving flawless repeatability in your LQ-138M Zero-Point Positioning Clamping System. Engineered to exacting tolerances, this hardened pin ensures perfect, slop-free alignment between fixture plates and the zero-point base, guaranteeing micron-level accuracy with every clamp cycle. Its robust design withstands high clamping forces, providing unwavering stability during aggressive machining. By enabling rapid, tool-less changeovers with absolute positional certainty, it drastically reduces setup time and maximizes spindle utilization. This essential pin is the key to unlocking the full speed, precision, and efficiency of your CNC workholding system.

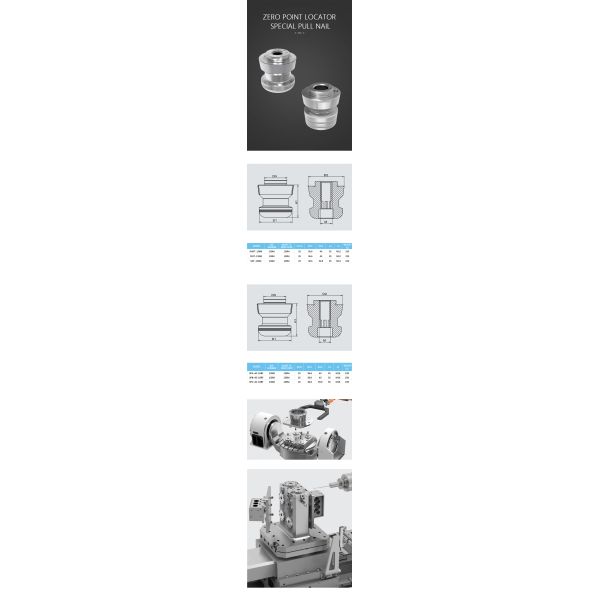

Part Number Size Number Matching Locator Model φDN φD1 φD2 H1 M Weight
(g)
DWJT-138M 138M 138M 25 36.6 40 35 M12 230
DXJT-138M 138M 138M 25 36.6 40 35 M12 230
SJJT-138M 138M 138M 25 36.6 39.8 35 M12 230
