0.9kg Quick Changeover Zero Point Clamping System Positioning Milling Mold Locating Pins
0.9kg Quick Changeover Zero Point Clamping System Positioning Milling Mold Locating Pins
Specifications
Brand Name :
ADJIG
Model Number :
LQ-90M
Place of Origin :
Chongqing, China
MOQ :
1
Price :
772 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlocking Method :
Pneumatic Pressure
Clamping Force (kN) :
5
Tension Force (kN) :
1.5
Blow :
✔
Weight (kg) :
0.9
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

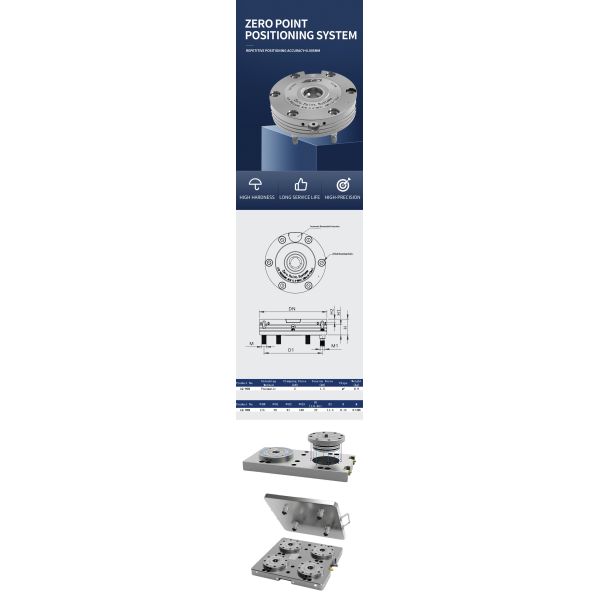

Industrial Precision Zero-Point Positioning System for Quick Fixture Changeover Positioning Milling

Unlocking Method:Pneumatic Unlocking
Material:Hardened Stainless Steel
Repeatability Accuracy:<0.005mm

This industrial-grade Zero-Point Positioning System delivers unmatched efficiency for milling operations. Engineered for precision and durability, it enables rapid fixture changeovers in seconds while maintaining repeatable micron-level accuracy. The system's robust coupling mechanism ensures maximum rigidity during heavy-cutting operations, eliminating vibration and ensuring superior surface finishes. By eliminating manual realignment and reducing setup time by over 90%, it dramatically increases machine utilization and throughput. Compatible with modular fixture systems, this solution seamlessly integrates into existing workflows, providing manufacturers with a reliable, high-performance workholding system that significantly boosts productivity while guaranteeing exceptional positioning accuracy for every milling application.

Model No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Weight (kg) Lifting Force(kN)
(at 0.6 MPa)
LQ-90M Pneumatic 10 25 1.8 50

Model No. ØDN ØD1 ØD2 ØD3 H1(±0.005) H1 M
LQ-90M 115 28 91 100 22 11.5 8*M6
