8KN 15KN Automated Zero Point Positioning System Quick Change Modular Clamping Solution
8KN 15KN Automated Zero Point Positioning System Quick Change Modular Clamping Solution
Specifications
Brand Name :
ADJIG
Model Number :
HQNC/10/20/40/60
Place of Origin :
Chongqing, China
MOQ :
1
Price :
2069 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
3.5/5/8/15
Lifting Force :
0.5/0.5/1/1.5
Blow :
✔
Weight (kg) :
1.8/3.4/6.8/12
Repeatability（mm） :
0.003
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

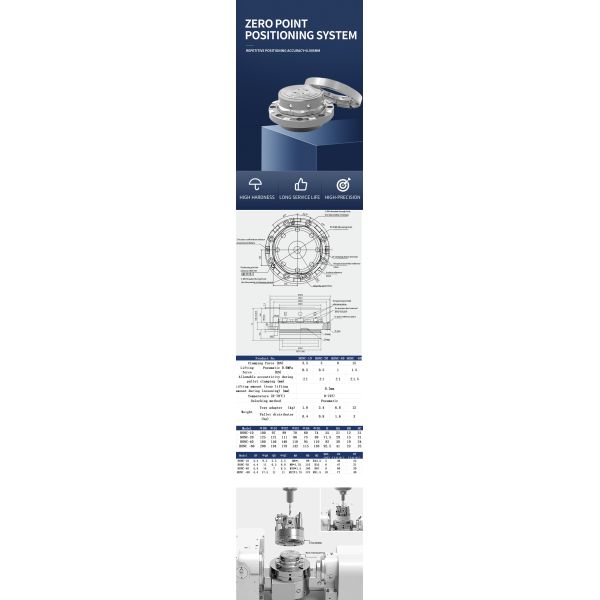

High Precision Automated Zero-Point Positioning System for CNC Machining Quick Change Modular Clamping Solution

Pneumatic unlocking, spring-loaded mechanical locking
Repeat positioning accuracy <0.003mm
Eight-sided clamping, suitable for single-piece use
Material: Hardened stainless steel
Features clamping and release detection interfaces
Positioning surfaces include air holes for automatic cleaning.

This High Precision Automated Zero-Point Positioning System revolutionizes CNC machining efficiency. Engineered for flawless performance, it enables rapid, automated tool-less changeovers in seconds while maintaining micron-level repeatability. The robust modular clamping solution ensures maximum rigidity during high-speed machining, eliminating vibration and guaranteeing superior surface finishes. Seamlessly integrating with robotic systems and pallet changers, it creates uninterrupted production cycles while dramatically reducing non-cut time. This advanced workholding system significantly boosts spindle utilization and throughput, delivering exceptional accuracy and reliability for demanding manufacturing environments. The ultimate solution for achieving unparalleled productivity in high-mix, high-volume precision machining applications.

Model No. Pneumatic Type Hydraulic Type
HQNC-10 HQNC-20 HQNC-40 HQNC-60 HQNC-10 HQNC-20 HQNC-40 HQNC-60
Clamping Force (kN) 3.5 5 8 15 10 16 25 40
Lifting capacity Pneumatic 0.6MPa(KN) 0.5 0.5 1 1.5 /
Hydraulic 3.5MPa(KN) / 1.5 3.2 4.6 4.5
Hydraulic 5MPa(KN) / 5.7 9.8 15.3 20.1
Hydraulic 7MPa(KN) / 11.4 18.7 29.4 40.9
Allowed eccentricity during pallet clamping (mm) ±1 ±1 ±1 ±1.5 ±1 ±1 ±1 ±1.5
Lift Capacity (Tray Lift Height When Unloaded) (mm) 0.3mm
Operating Ambient Temperature (°C) 0-70℃
Weight Main Clamping Force (kg) 1.8 3.4 6.8 12 1.8 3.4 6.8 12
Pallet Adapter (kg) 0.4 0.8 1.6 3 0.4 0.8 1.6 3
