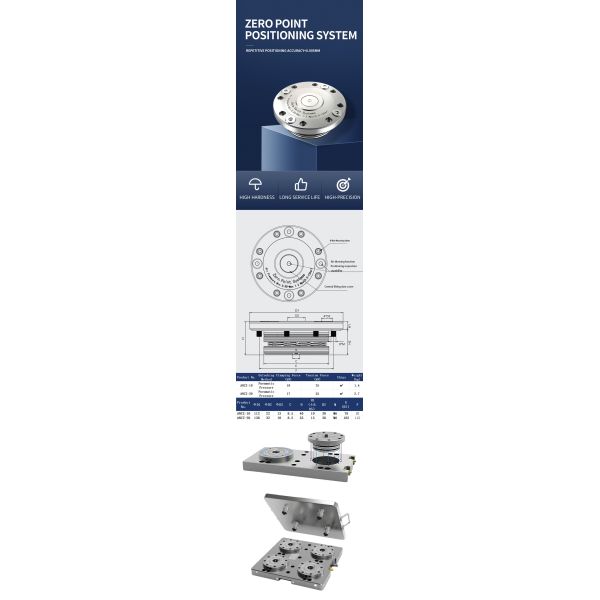

Automated Zero-Point Positioning System for CNC Machines Quick-Change Pallet System Workholding
Automated Zero-Point Positioning System for CNC Machines Quick-Change Pallet System Workholding
Specifications
Brand Name :
ADJIG
Model Number :
ANCZ-10/20
Place of Origin :
Chongqing, China
MOQ :
1
Price :
621 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
10/17
Tension Force (kN) :
25/55
Blow :
✔
Weight (kg) :
2.7/5.75
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

Automated Zero-Point Positioning System for CNC Machines Quick-Change Pallet System Workholding


Product Features:
1. Pneumatic unlocking with spring-loaded mechanical locking;

Material: Hardened stainless steel

2. Repeat positioning accuracy <0.005 mm

3. Center auto-rising dust cover prevents metal chips from entering;

Center surface and perimeter auto-diffuse chip blowing maintains cleanliness;

Features clamping, unlocking, and airtightness testing interfaces.

Applicable Industries: Suitable for automated pallet changing in flexible production lines;

Applicable to metal or non-metal cutting fields.


Model No. Size No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Chip Blowing Weight (kg)
ANCZ-10 Q10 Pneumatic 10 25 √ 1.4
ANCZ-20 Q20 Pneumatic 17 55 √ 2.7
