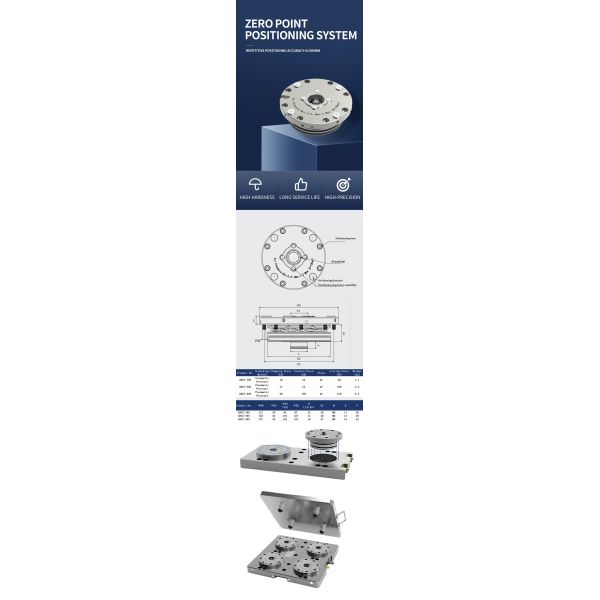

5 Axis CNC Zero Point Clamping System Workholding Positioning Mold Locating Pins
5 Axis CNC Zero Point Clamping System Workholding Positioning Mold Locating Pins
Specifications
Brand Name :
ADJIG
Model Number :
ANCZ-(10/20/40)S
Place of Origin :
Chongqing, China
MOQ :
1
Price :
690 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
10/17/40
Tension Force (kN) :
25/55/105
Blow :
✔
Weight (kg) :
1.7/2.5/4.2
Repeatability（mm） :
0.003
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

China Supplier 5-Axis CNC Automated Zero-Point Workholding Positioning System Clamping

Pneumatic unlocking, spring-loaded mechanical locking
Repeat positioning accuracy <0.003mm;
Includes surface air-blow cleaning function,
Material: Hardened stainless steel
Features lifting function, dual-sided restraint, high precision, strong rigidity
Equipped with air-tightness detection interface for positional release.

As a leading China supplier, we present this advanced 5-Axis CNC Automated Zero-Point Workholding System. Engineered for maximum efficiency, it delivers rapid, automated clamping with unparalleled precision. The system enables sub-minute fixture changes while maintaining micron-level repeatability, drastically reducing non-productive time. Its robust construction ensures vibration-free stability during complex multi-axis machining operations. Compatible with automated cells and robotic integration, this solution significantly boosts throughput and spindle utilization. Ideal for high-volume production environments, it represents the pinnacle of modern workholding technology - delivering exceptional accuracy, reliability, and productivity gains for demanding CNC machining applications worldwide.

Model No. Size No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Chip Blowing Weight (kg) Lifting Force(kN)
(at 0.6 MPa)
ANCZ-10S Q10 Pneumatic 10 25 √ 1.7 50
ANCZ-20S Q20 Pneumatic 17 55 √ 2.5 100
ANCZ-40S Q40 Pneumatic 40 105 √ 4.2 150
