Modular Manual Zero Point Clamping Workholding Platform For CNC Machines
Modular Manual Zero Point Clamping Workholding Platform For CNC Machines
Specifications
Brand Name :
ADJIG
Model Number :
ANCZ-40-K
Place of Origin :
Chongqing, China
MOQ :
1
Price :
483 - 759 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
40
Tension Force (kN) :
105
Blow :
✔
Weight (kg) :
4.2
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

Zero-Point Positioning System Advanced Modular Workholding Platform for CNC Machines

Pneumatic unlocking, spring-loaded mechanical locking;
Material: Hardened stainless steel;
Surface and piston hardened;
Repeat positioning accuracy <0.005mm;

This advanced modular workholding platform revolutionizes CNC efficiency with its zero-point positioning system. Engineered for unparalleled precision, it enables rapid fixture and vise changes in seconds while maintaining micron-level repeatability. The system's robust kinematic coupling ensures maximum rigidity during heavy machining, eliminating vibration and guaranteeing superior surface finishes. By streamlining setups and drastically reducing non-cut time, it significantly boosts spindle utilization and overall productivity. Compatible with a wide range of modular components, this versatile solution seamlessly integrates into existing workflows, providing manufacturers with a future-proof foundation for achieving ultimate precision and efficiency in all machining operations.

Model No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Weight (kg)
ANCZ-40-K Pneumatic 40 105 4.2

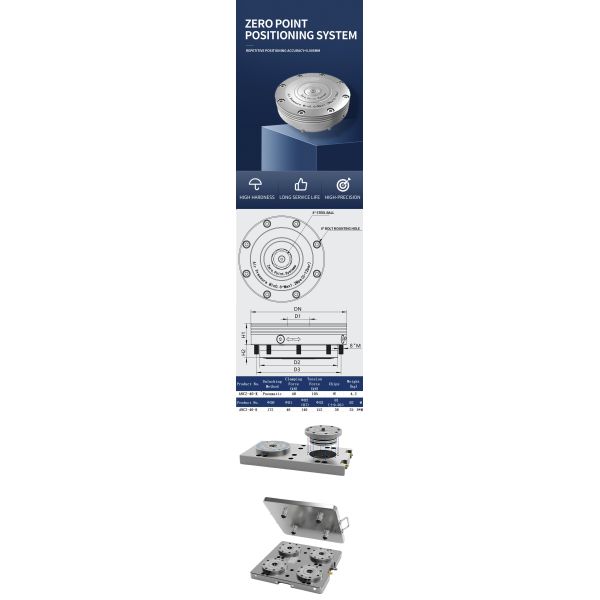

Model No. ØDN ØD1 ØD2 ØD3 H1(±0.01) H1 M
ANCZ-40-K 172 40 140 152 38 25.2 8*M8
