CNC Machining Zero Clamping For Modular Fixture Plates Quick Change Workholding
CNC Machining Zero Clamping For Modular Fixture Plates Quick Change Workholding
Specifications
Brand Name :
ADJIG
Model Number :
LQ-138M
Place of Origin :
Chongqing, China
MOQ :
1
Price :
759 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlocking Method :
Pneumatic Pressure
Clamping Force (kN) :
17
Tension Force (kN) :
55
Blow :
✔
Weight (kg) :
4.5
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

CNC Machining Zero-Point Positioning System for Modular Fixture Plates Quick Change Workholding Solution

Unlocking Method:Pneumatic Unlocking
Material:Hardened Stainless Steel
Repeatability Accuracy:<0.005mm

This CNC Machining Zero-Point Positioning System revolutionizes workholding efficiency. It enables rapid, sub-minute changeovers of modular fixture plates with exceptional, repeatable accuracy. Utilizing a secure kinematic coupling mechanism, the system guarantees micron-level repeatability while eliminating manual repositioning. Perfect for high-mix manufacturing, it dramatically reduces machine downtime and increases spindle utilization. The robust design ensures maximum rigidity for heavy-duty machining. Easily integrated with existing modular plates, this quick-change solution streamlines your workflow, boosts productivity, and delivers unparalleled precision for all your CNC workholding applications.

Model No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Weight (kg)
LQ-138M Pneumatic 17 55 4.5

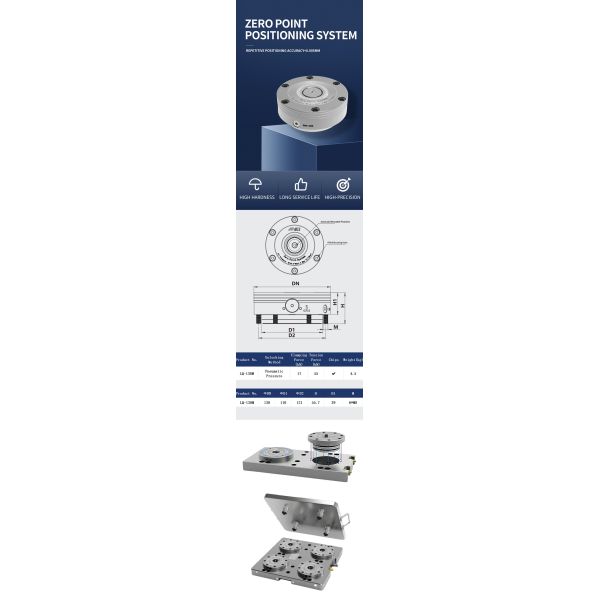

Model No. ØDN ØD1 ØD2 H H1 M
LQ-138M 138 110 121 55.7 39 6*M8
