5KN Pneumatic Zero Point Base Plate For High Precision CNC Fixture Positioning
5KN Pneumatic Zero Point Base Plate For High Precision CNC Fixture Positioning
Specifications
Brand Name :
ADJIG
Model Number :
A1GWB-5
Place of Origin :
Chongqing, China
MOQ :
1
Price :
441 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock method :
Atmospheric pressure
Dimensions :
84x84×33.5
Flatness :
≤0.01
Repeat Positioning Accuracy :
≤0.008
Clamping Force :
5KN
Weight :
2KG
Description

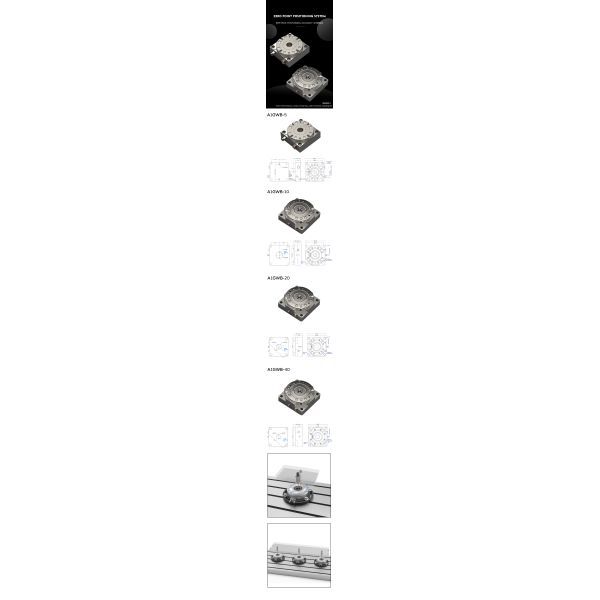

Single-Position Pneumatic Zero-Point Base Plate for High-Precision CNC Fixture Positioning

Product Features:
1. Pneumatic unlocking. Spring-loaded mechanical lock system; Material: Hardened stainless steel:
2. Surface and piston hardened treatment;
3. Repeat positioning accuracy <0.005 mm;
4. Pressure source can be disconnected during use. Clamping force remains stable.
5. The exhaust port is generally not used; it can be used for pressurization when required.
6. This model does not include airtightness testing; customization is available if airtightness testing is required.
7. This model can be directly used for three-axis, four-axis, and five-axis installations.

The unlocking port is designed for four-axis installations and does not require a rotary oil distributor.

Dimensions Flatness Repeat Positioning Accuracy Clamping Force Weight Scale
84x84×33.5 ≤0.01 ≤0.008 5KN
2KG 1:1
Body Material Locator Material Boost Function Air-tightness Test
Hardened Tool Steel Hardened Stainless Steel Built-in Customizable AIGWB-5
