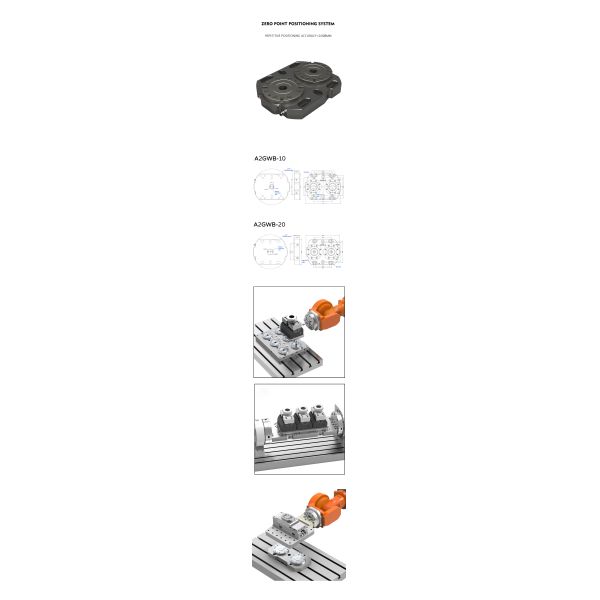

Dual Position Zero Point Clamping System Work Holding Pneumatic Base Plate For CNC
Dual Position Zero Point Clamping System Work Holding Pneumatic Base Plate For CNC
Specifications
Brand Name :
ADJIG
Model Number :
A2GWB-10/A2GWB-20
Place of Origin :
Chongqing, China
MOQ :
1
Price :
828 - 1200 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Material :
Hardened Stainless Steel
Flatness :
≤0.01
Repeat Positioning Accuracy :
≤0.005
Unlock method :
Air pressure unlocking, spring mechanical locking
Description

Dual-Position Pneumatic Zero-Point Base Plate for Multi-Fixture CNC Workholding

Product Features:

1. Pneumatic unlocking. Spring-loaded mechanical lock system; Material: Hardened stainless steel:
2. Surface and piston hardened treatment;
3. Repeat positioning accuracy <0.005 mm;
4. Pressure source can be disconnected during use. Clamping force remains stable.
5. The exhaust port is generally not used; it can be used for pressurization when required.
6. This model does not include airtightness testing; customization is available if airtightness testing is required.
7. This model can be directly used for three-axis, four-axis, and five-axis installations. The unlocking port is designed for

four-axis installations and does not require a rotary oil distributor.

Model Dimensions Flatness Repeat Positioning Accuracy Clamping Force (kN) Body Material Locator Material Boost Function Air-tightness Test Weight
(KG)
A2GWB-10 236×180×43 ≤0.01 ≤0.005 2×10 Hardened Tool Steel Hardened Stainless Steel Built-in Customizable 9
A2GWB-20 316×230×58 2×17 26
