20KN 40KN lang zero point clamping rigid construction Pneumatic Base Plate
20KN 40KN lang zero point clamping rigid construction Pneumatic Base Plate
20KN 40KN lang zero point clamping rigid construction Pneumatic Base Plate
20KN 40KN lang zero point clamping rigid construction Pneumatic Base Plate
Specifications
Brand Name :
ADJIG
Model Number :
Q2GWB-5/Q2GWB-10/Q2GWB-20
Place of Origin :
Chongqing, China
MOQ :
1
Price :
2400 - 3752 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Unlock method :
Air pressure unlocking, spring mechanical locking
Repeatability :
＜0.005mm
Clamping Force (KN) :
4×5/4×10/4×17
Tensile Force (KN) :
4×15/4×25/4×55
Weight (kg) :
7.9/28.7/46
Description

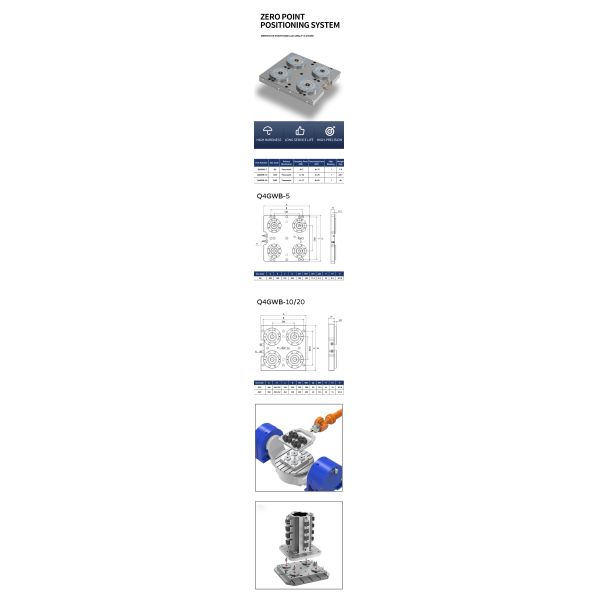

ZPS 4-Module Zero-Point Positioning Pneumatic Base Plate for CNC Fixtures Multi-Workpiece

Product Features:
Pneumatic unlocking, mechanical locking;
1. Material: Mold steel (or customer's choice); surface and piston hardened;
Repeat positioning accuracy <0.005MM:
2. Locked onto T-slot via countersunk holes on base plate for easy installation. at least two locating holes for accurate positioning.

Applicable Industries: Suitable for three-axis, non-rotating machining.

This Multi-Face CNC Fixture Block revolutionizes complex part machining through seamless integration with zero-point positioning systems. Engineered for maximum versatility, it enables complete five-axis access to workpiece multiple surfaces in a single setup. The precision-ground faces maintain exceptional perpendicularity and parallelism, while the integrated zero-point interface ensures quick changeovers with repeatable micron-level accuracy. Its rigid construction guarantees vibration-free stability during aggressive machining operations. Ideal for complex geometries requiring multiple operations, this fixture significantly reduces setup time while maintaining exceptional positioning accuracy across all machining faces, dramatically improving throughput for high-precision manufacturing applications.

Part Number Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
Q4GWB-5 Q5 Pneumatic Pressure 4×5 4×15 √ 7.9
Q4GWB-10 Q10 Pneumatic Pressure 4×10 4×25 √ 28.7
Q4GWB-20 Q20 Pneumatic Pressure 4×17 4×55 √ 46

Size Number A B C D SM SM1 ΦE1 φE2 H H1 R
Q5 200 180 150 200 100 100 11.5 6.5 25 8.5 G1/8

Size Number A B C D SM SM1 φE φE1 H H1 R
Q10 366 250-252 336 366 200 200 20 12.5 32 10 G1/8
Q20 398 250-252 364 398 200 200 20 12.5 38 15 G1/4
