4 Module Zero Point Clamping System Round Pneumatic Base Plate Mounting System
4 Module Zero Point Clamping System Round Pneumatic Base Plate Mounting System
Specifications
Brand Name :
ADJIG
Model Number :
Q4GWYB-5/Q4GWYB-10/Q4GWYB-20
Place of Origin :
Chongqing, China
MOQ :
1
Price :
359 - 2317 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock method :
Air pressure unlocking, spring mechanical locking
Repeatability :
＜0.005mm
Unlock Method :
Pneumatic
Tensile Force (KN) :
4×13/4×25/4×55
Weight (kg) :
10 /25.7/53.7
Description

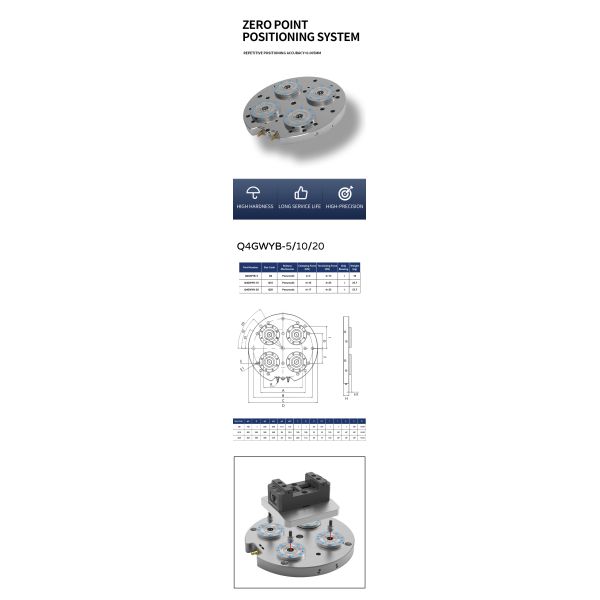

ZPS 4-Module Round Pneumatic Zero-Point Base Plate for CNC Fixtures Multi-Workpiece Positioning

Product Features:
Pneumatic unlocking, mechanical locking
Material: Mold steel (or customer's choice) Surface and piston hardened
Repeat positioning accuracy <0.005MM
Locked onto T-slot via countersunk holes on substrate for easy installation;
At least two locating holes for accurate positioning.
Applicable Industries: Suitable for metal or non-metal cutting fields Suitable for five-axis CNC machine tool processing.

Part Number Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
Q4GWYB-5 Q5 Pneumatic 4×5 4×13 √ 10
Q4GWYB-10 Q10 Pneumatic 4×10 4×25 √ 25.7
Q4GWYB-20 Q20 Pneumatic 4×17 4×55 √ 53.7

Size Number φA B φC φD φE φE1 F G H H1 l 1 2 3 R
Q5 142 / 228 250 11.5 6.5 / / 26 8.5 / / / 60° G1/8
Q10 200 300 300 360 20 12.5 100 100 32 10 150 30° 45° 60° G1/8
Q20 260 300 400 470 20 12.5 200 11.6 38 15 150 30° 45° 60° G1/4
