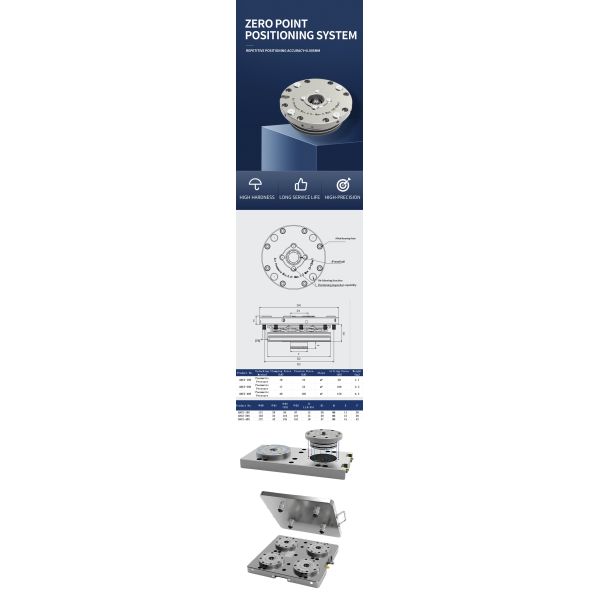

Flange Type Zero Point Clamping System Automated Zero Point Workholding For CNC Fixture
Flange Type Zero Point Clamping System Automated Zero Point Workholding For CNC Fixture
Specifications
Brand Name :
ADJIG
Model Number :
ANCD
Place of Origin :
Chongqing, China
MOQ :
1
Price :
345 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
5/10/17
Tension Force (kN) :
13/25/55
Blow :
✔
Weight (kg) :
0.5/1.4/2.6
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

Flange-Type Automated Zero-Point Positioning System for CNC Fixture Changeover

This flange-type automated zero-point positioning system revolutionizes CNC fixture changeovers. Designed for seamless integration with robotic arms and automated production lines, it enables rapid, precise fixture swaps in seconds. The robust flange connection ensures perfect alignment and exceptional rigidity, eliminating vibration during high-speed machining. Utilizing a precision-engineered coupling mechanism, the system guarantees repeatable micron-level accuracy while withstanding harsh industrial environments. By automating the clamping process, it dramatically reduces non-cutting time, maximizes spindle utilization, and enables lights-out manufacturing capabilities. This advanced solution represents the pinnacle of workholding technology, delivering unmatched efficiency and reliability for high-volume precision machining applications.

Part Number Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
ANCDZ-2S Q2S Pneumatic Pressure 1.25 5 √ 0.19

Size Number φDN φD1 φD2 φD3 H
(±0.005)		 H1 M K
Q2S 50 14 37 42 12 8 M3 7.5
