Automated Zero Point Clamping Positioning System For CNC Fixture Changeover
Automated Zero Point Clamping Positioning System For CNC Fixture Changeover
Specifications
Brand Name :
ADJIG
Model Number :
ANCDZ-2S
Place of Origin :
Chongqing, China
MOQ :
1
Price :
345 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (KN) :
17
Tensile Force (KN) :
55
Blow :
✔
Weight (kg) :
2.6
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

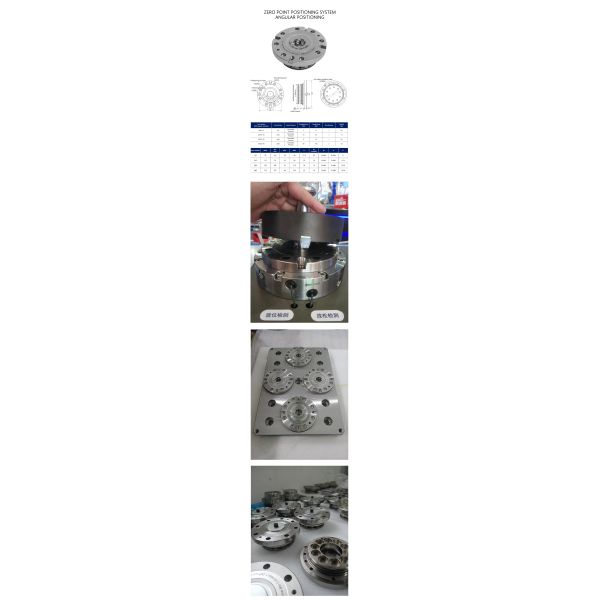

Flange-Type Automated Zero-Point Positioning System for CNC Fixture Changeover

Product Features:
1. Pneumatic unlocking, spring mechanical locking; Material: hardened stainless steel

2. Repeat positioning accuracy <0.005MM
3. Double-sided constraint, high precision
4. Includes a central air blowing interface to prevent iron filings from entering. Applicable Industries
Suitable for the automation industry

Suitable for quick-change fixtures

Part Number Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
ANCDZ-2S Q2S Pneumatic Pressure 1.25 5 √ 0.19

Size Number φDN φD1 φD2 φD3 H
(±0.005)		 H1 M K
Q2S 50 14 37 42 12 8 M3 7.5
