Multi Sided CNC Workholding Fixture For Zero-Point Clamping
Multi Sided CNC Workholding Fixture For Zero-Point Clamping
Specifications
Brand Name :
ADJIG
Model Number :
Q6LZ-10/Q6LZ-20
Place of Origin :
Chongqing, China
MOQ :
1
Price :
11255 - 12510 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (KN) :
(2×)6×10/(2×)6×17
Tensile Force (KN) :
(2×)6×25
Weight (kg) :
228/272
Description

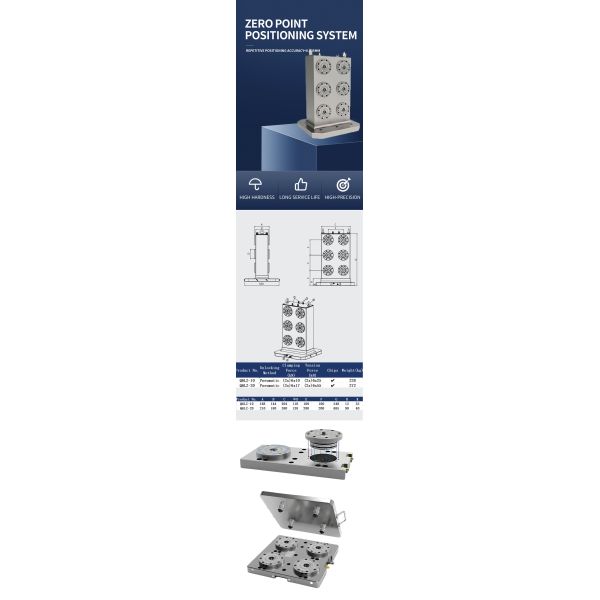

High-Precision Multi-Sided CNC Workholding Fixture for Zero-Point Clamping

Product Features:
Pneumatic unlocking, mechanical lock system;
Material: HT300: Surface and piston hardened;
Repeat positioning accuracy <0.005MM.
Applicable Industries Suitable for metal or non-metal cutting fields;

suitable for horizontal CNC machine tool processing.

This high-precision multi-sided CNC workholding fixture revolutionizes complex part machining through integrated zero-point clamping technology. Engineered for unparalleled accuracy, it enables complete five-axis access to components in a single setup while maintaining micron-level repeatability. The system's quick-change capability allows complete fixture changes in under 30 seconds, dramatically reducing non-cutting time between operations. Its robust construction ensures maximum rigidity during aggressive machining, eliminating vibration and guaranteeing superior surface finishes. Ideal for manufacturing complex geometries, this versatile solution significantly increases spindle utilization and throughput while maintaining exceptional positioning accuracy across all machining faces.

Part Number Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
Q6LZ-10 Q10 Pneumatic Pressure (2×)6×10 (2×)6×25 √ 228
Q6LZ-20 Q20 Pneumatic Pressure (2×)6×17 (2×)6×55 √ 272

Part Number A B C Φ D E F G H K
Q6LZ-10 168 144 304 110 160 160 548 72 32
Q6LZ-20 210 180 380 138 200 200 685 90 40
