Specifications
Brand Name :
ADJIG
Model Number :
ANC-2
Place of Origin :
Chongqing, China
MOQ :
1
Payment Terms :
T/T,L/C
Delivery Time :
7-10 days
Price :
166 - 215 USD per item
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
1.25
Tension Force (kN) :
5
Blow :
✔
Weight (kg) :
0.15
Repeatability（mm） :
0.005
Material :
Hardened Stainless Steel
Service Life :
One Million Times
Description

Zero Point Locator Zero Point Clamping System Quick Replacement Of Fixtures

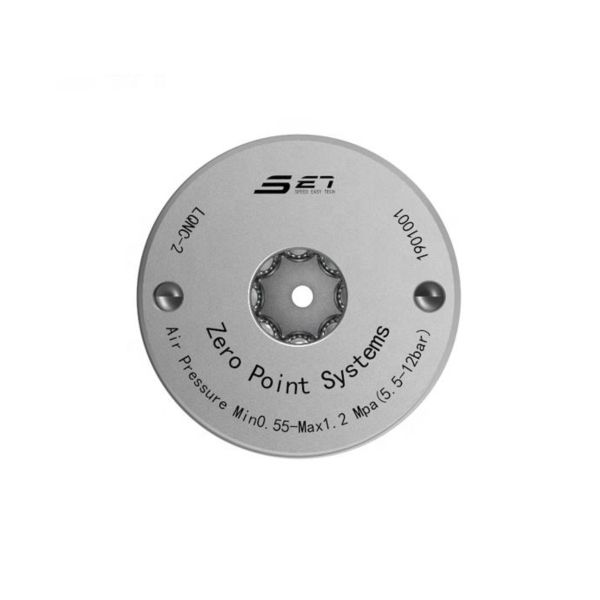

Threaded concealed installation type zero locator with a diameter of 45mm, a total thickness of 20mm, and a weight of 0.15kg;


It is a small-sized zero point locator with concealed installation by air pressure, which is unlocked by air pressure and locked by spring mechanism.


The repeated positioning accuracy is less than 0.005mm, with a clamping force of 1.25kN and a tightening force of 5kN for a single locator.


Unlike the traditional concealed installation method, this locator is installed through threaded rotation, which is more suitable for quick change of small and lightweight fixtures.

Part Number
(Standard Version)		 Part Number
(With Angular-Location)		 Size Number Unlock Method Clamping Force
(KN)		 Tensile Force
(KN)		 Chip Blowing Weight
(kg)
ANC-2
(Threaded Mounting)		 Q2 Pneumatic Pressure 1.25 5 √ 0.15
ANC-5 ANCD-5 Q5 Pneumatic Pressure 5 13 √ 0.5
ANC-10 ANCD-10 Q10 Pneumatic Pressure 10 25 √ 1.4
ANC-20 ANCD-20 Q20 Pneumatic Pressure 17 55 √ 2.6
ANC-40 ANCD-40 Q40 Pneumatic Pressure 40 105 √ 4.2

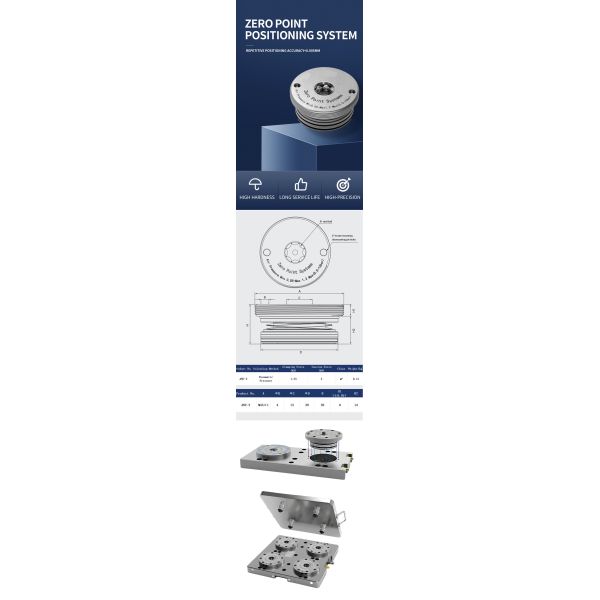

Size Number A φB φC φD H H1
(±0.005)		 H2
Q2 M45×1 4 13 39 20 6 14

Size Number φD1 φD2 φD3
(H7)		 φD4 H H1
(±0.005)		 M T
Q5 78 18 58 65 30 8.5 8×M4 21.5
Q10 112 22 78 92 35 10 8×M6 25
Q20 138 32 102 115 49 15 8×M6 34
Q40 172 40 127 143 63 18 8×M8 45
