High Precision Automated Zero Point Positioning Systems Clamping Fixture
High Precision Automated Zero Point Positioning Systems Clamping Fixture
Specifications
Brand Name :
ADJIG
Model Number :
ANCZ-20-K/ANCZ-60-K
Place of Origin :
Chongqing, China
MOQ :
1
Price :
552 - 828 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
17/52
Tension Force (kN) :
55/130
Blow :
✔
Weight (kg) :
2.7/5.75
Repeatability（mm） :
0.005
Material :
Hardened stainless steel
Service Life :
One Million Times
Description

High Precision China Supplier of Automated Zero-Point Positioning Systems Clamping Fixture

Pneumatic unlocking, spring-loaded mechanical locking,
Repeat positioning accuracy <0.005mm;
Material: Hardened stainless steel,
Includes surface air-blow cleaning function;
Features air-tight position detection and release interfaces
Includes central air-blow port to prevent metal chip ingress.

As a leading China supplier, we specialize in high-precision automated zero-point positioning systems that revolutionize CNC workholding. Our advanced clamping fixtures deliver micron-level repeatability and enable rapid, automated tool-less changeovers in seconds. Engineered for seamless integration with robotic systems and pallet changers, these robust solutions dramatically reduce non-cutting time while ensuring maximum rigidity during high-speed machining. The innovative design guarantees vibration-free performance and superior part quality, significantly boosting spindle utilization and overall productivity. This reliable, cost-effective workholding technology represents the pinnacle of manufacturing efficiency, offering unparalleled precision and automation capabilities for demanding global manufacturing operations.

Model No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Chip Blowing Weight (kg)
ANCZ-10-K Pneumatic 17 55 √ 4.25
ANCZ-60-K Pneumatic 52 130 √ 8.2

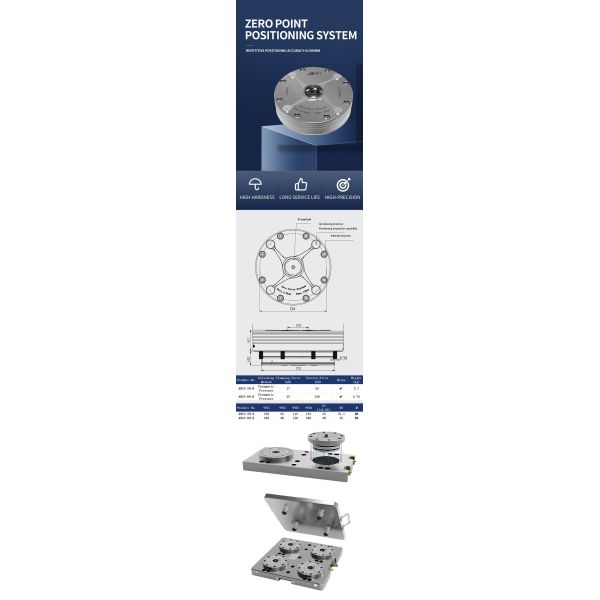

Model No. ØDN ØD(k7) ØD1 ØD2 H H1 M
ANCZ-10-K 138 112 112 122 32 32 M6
ANCZ-60-K 188 150 150 166 39 39 M8

High Precision Automated Zero Point Positioning Systems Clamping Fixture
