Automated ZeroZero Point Clamping System Positioning Pins For Modular Fixture
Automated ZeroZero Point Clamping System Positioning Pins For Modular Fixture
Specifications
Brand Name :
ADJIG
Model Number :
ANCD2-2S
Place of Origin :
Chongqing, China
MOQ :
1
Price :
483 USD per item
Payment Terms :
L/C,T/T
Supply Ability :
Less than 30 pieces, shipped within 5-7 days. More than 30 items will be shipped within 25-30 days.
Delivery Time :
7-10 days
Packaging Details :
Carton/wooden crate
Unlock Method :
Pneumatic Pressure
Clamping Force (kN) :
1.25
Tension Force (kN) :
5
Blow :
✔
Weight (kg) :
0.19
Repeatability（mm） :
0.005
Material :
Hardened stainless steel
Service Life :
One Million Times
Description

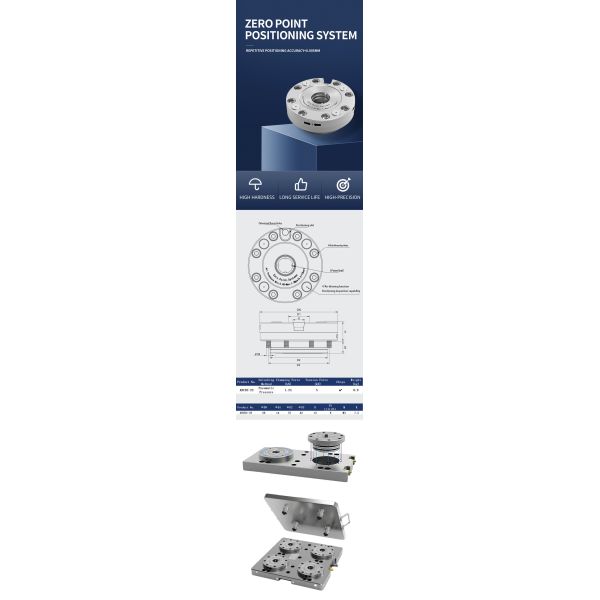

Quick-Change Automated Zero-Point Positioning System for Modular Fixture Plates Quick Change Workholding

Product Features:
1. Pneumatic unlocking with spring-loaded mechanical locking; Material: Hardened stainless steel
2. Repeat positioning accuracy <0.005MM
3. Dual-sided clamping for high precision
4. Includes central air blow port to prevent metal chip ingress
Applicable Industries: Suitable for automation industries and quick-change tooling systems

This Quick-Change Automated Zero-Point Positioning System revolutionizes modular workholding efficiency. Utilizing precision-engineered coupling technology, it enables rapid, automated fixture plate changes in seconds while maintaining repeatable micron-level accuracy. The system's robust design ensures maximum rigidity during high-speed machining operations, eliminating vibration and guaranteeing superior part quality. Perfectly integrated with automated production lines and robotic systems, it facilitates uninterrupted manufacturing cycles while dramatically reducing non-cutting time. This advanced solution significantly boosts spindle utilization and overall equipment effectiveness, delivering exceptional precision and reliability for modern manufacturing environments seeking to optimize their workflow and maximize productivity through automated, quick-change workholding technology.

Model No. Size No. Unlocking Method Clamping Force (kN) Tensioning Force (kN) Chip Blowing Weight (kg)
ANCDZ-2S Q2s Pneumatic 1.25 5 √ 0.19

Model No. ØDN ØD1 ØD2 ØD3 H
(±0.005)		 H1 M K
Q2S 50 14 37 42 12 8 M3 7.5
