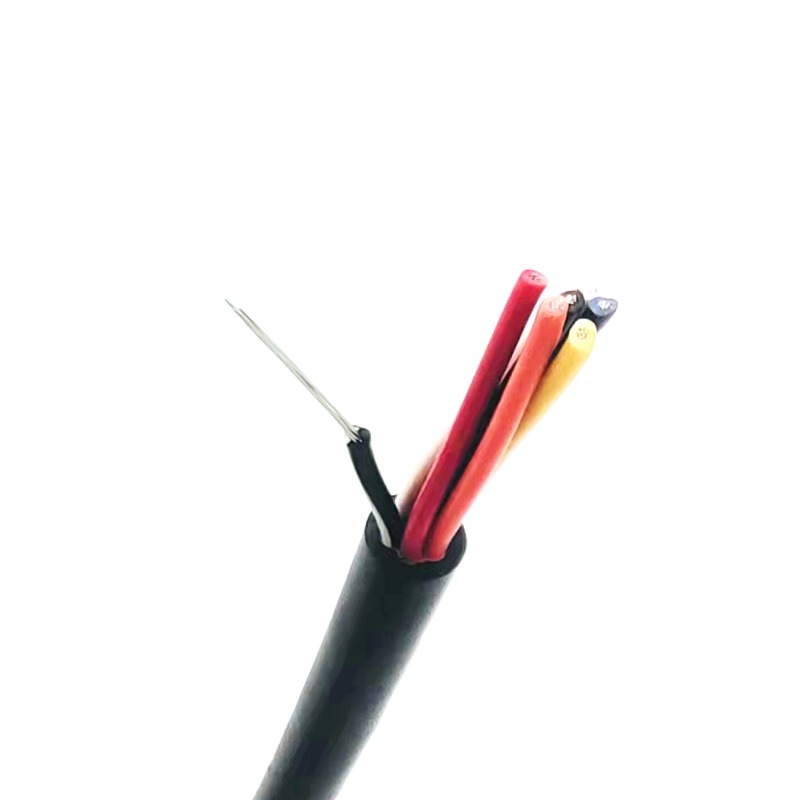

UL2464 Tinned Copper Stranded Cable 13C×26AWG+A Robot Cable With PVC Jacket PVC Insulation
UL2464 Tinned Copper Stranded Cable 13C×26AWG+A Robot Cable With PVC Jacket PVC Insulation
UL2464 Tinned Copper Stranded Cable 13C×26AWG+A Robot Cable With PVC Jacket PVC Insulation
UL2464 Tinned Copper Stranded Cable 13C×26AWG+A Robot Cable With PVC Jacket PVC Insulation
Specifications
Place of Origin :
China
MOQ :
1000m
Supply Ability :
100km per day
Conductor :
Tinned Copper Stranded
Application :
Robot
Temperature :
80℃
Packing :
Packed in rolls or reels
Name :
Tinned Copper Stranded Cable
Voltage :
300V
SP :
2506669
Model Number :
UL2464
Certification :
RoHS Reach
Price :
To be negotiated
Payment Terms :
T/T,L/C,Western Union
Delivery Time :
3-4 Weeks
Packaging Details :
Packed in rolls or reels
Insulation :
PVC
Brand Name :
Shineplus
Jacket :
PVC
Description

UL2464 Tinned Copper Stranded 13C×26AWG+A Robot Cable with PVC Jacket PVC Insulation

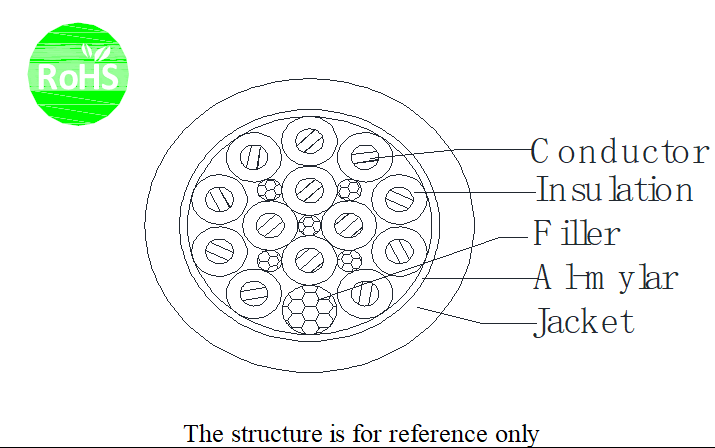

Construction
Conductor Tinned copper stranded
Cross section 26AWG
Construction 7/0.16mm
Strand Dia.(Ref.) 0.48mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.00±0.10mm
Insulation colour 1.red 2.white 3.black 4.orange 5.brown 6.yellow 7.green 8.blue 9.light purple 10.pink 11.light blue 12.gray 13.yellow/green
Filler PP rope
Material AL-mylar
Assembly 13C×26AWG+A
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
O.D. 6.20±0.30mm
Colour Per request

Application:For internal wires of industrial control equipment and robot manipulators

Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):150Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%
