UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded Cable 300V
UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded Cable 300V
UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded Cable 300V
UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded Cable 300V
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Name :
Robot Wire and Cable
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL2464
Insulation :
HDPE/SR-PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Robot Manipulator
Supply Ability :
100km per day
SP :
1504565
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Place of Origin :
China
Voltage :
300V
Packaging Details :
Packed in rolls or reels
Description

UL2464 3P×24AWG+6C×24AWG Robot Cable Bare Copper Stranded with HDPE/SR-PVC Insulation and PVC Jacket 300V

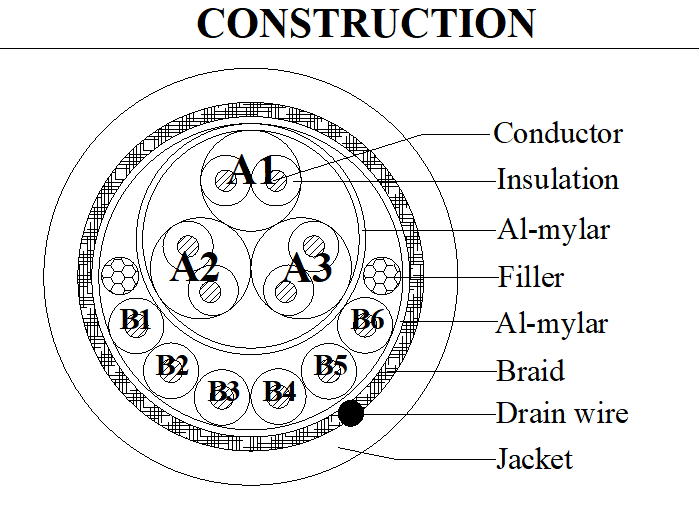

ITEM A : 3P×24AWG B : 6C×24AWG
CONDUCTOR Material Bare copper stranded
Size 19/0.127±0.008mm 19/0.127±0.008mm
O.D.(Ref) 0.64mm 0.64mm
INSULATION Material HDPE SR-PVC
Min.average thickness 0.23mm 0.23mm
Min.thickness at any point 0.18mm 0.18mm
O.D. 1.20±0.08mm 1.15±0.05mm
TWISTED O.D.(Ref) 2.40mm /
CABLING-1 Material Al-mylar(face in) /
Assembly 3P×24AWG /
CABLING Filler PP rope
Material Al-mylar(face out)
Assembly (3P×24AWG+A)+6C×24AWG
DRAIN Material Tinned copper stranded
Size 19/0.127±0.008mm
BRAID Material Tinned copper
Size 16/9/0.10mm(65% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 8.00±0.25mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):87.6Ω/km

Dielectric Strength AC:1.0kV/1min

Impedance : 100±15Ω (A)

Rated current: 2.0A

Insulation Resistance(at 20℃):100MΩ*km Min.

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test: ±90°,Speed:30cycles/min,Weight:450g,

Bending radius:50.8mm,80k

Twist test: 15K (Bending angle:±360°,Speed:30cycles/min,Weight:150g)
