UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded With PVC Insulation / TPU Jacket 300V
UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded With PVC Insulation / TPU Jacket 300V
UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded With PVC Insulation / TPU Jacket 300V
UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded With PVC Insulation / TPU Jacket 300V
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
300V
SP :
1804042
Certification :
RoHS Reach
Insulation :
PVC
Model Number :
UL20549
Conductor :
Bare Copper Stranded
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
Brand Name :
Shineplus
Name :
Robot Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Application :
Robot Manipulator
Price :
To be negotiated
Temperature :
-40~80℃
Place of Origin :
China
Jacket :
TPU
Packaging Details :
Packed in rolls or reels
Description

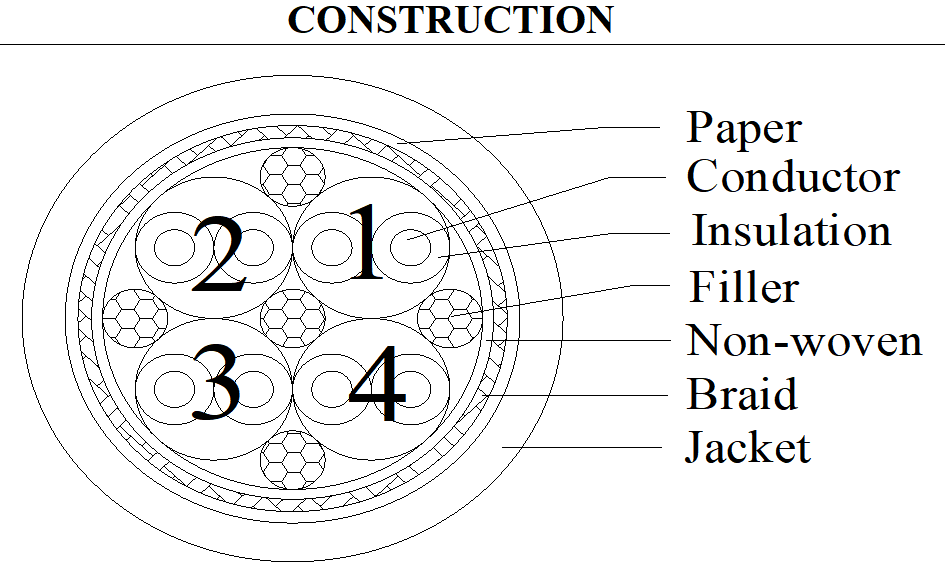

UL20549 4P×0.34mm2 Robot Cable Tinned Copper Stranded with PVC Insulation and TPU Jacket 300V

ITEM 4P×0.34mm2(65/0.08T)+WB
CONDUCTOR Material Tinned copper stranded
Size 65/0.08mm+nylon
O.D.(Ref) 0.76mm
INSULATION Material PVC
Min.average thickness 0.38mm
Min.thickness at any point 0.33mm
O.D. 1.60±0.10mm
TWIST O.D. 3.20mm
CABLING Filler Cotton
Material Non-woven tape , overlapping: 25% min.
BRAID Material Tinned copper
Size 16/12/0.10mm , 80﹪ Min.
SEPARATOR Material Paper , overlapping : 25% min.
JACKET Material TPU
Min.average thickness 1.00mm
Min.thickness at any point 0.80mm
O.D. 9.30±0.30mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):59.4Ω/km

Dielectric Strength AC:2.0kV/1min

Voltage withstand test:

Core-Core:AC 2.0kV/1min

Core-Shield:AC 1.5kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Oil Resistant Condition(IRM 902): 100℃×24hrs
Tensile strength:≥60% of original
Elongation(%):≥60% of original

Chain test: 20times/minute, distance:1.0m,
bending radius:100mm ≥2 million times
Flame test : VW-1 ,FT1
