UL2517 5C×24AWG Robot Wire And Cable With SR-PVC Insulation / PVC Jacket
UL2517 5C×24AWG Robot Wire And Cable With SR-PVC Insulation / PVC Jacket
UL2517 5C×24AWG Robot Wire And Cable With SR-PVC Insulation / PVC Jacket
UL2517 5C×24AWG Robot Wire And Cable With SR-PVC Insulation / PVC Jacket
Specifications
Brand Name :
Shineplus
Temperature :
-40℃~105℃
Name :
Robot Wire and Cable
Payment Terms :
T/T,L/C,Western Union
Price :
To be negotiated
Jacket :
PVC
Packaging Details :
Packed in rolls or reels
MOQ :
1000m
Insulation :
SR-PVC
Packing :
Packed in Rolls or Reels
Certification :
RoHS Reach
Application :
Robot Manipulator
SP :
1701604
Conductor :
Tinned Copper Stranded
Delivery Time :
3-4 Weeks
Place of Origin :
China
Voltage :
300V
Model Number :
UL2517
Supply Ability :
100km per day
Description

UL2517 5C×24AWG Tinned Copper Stranded Robot Cable with SR-PVC Insulation and PVC Jacket

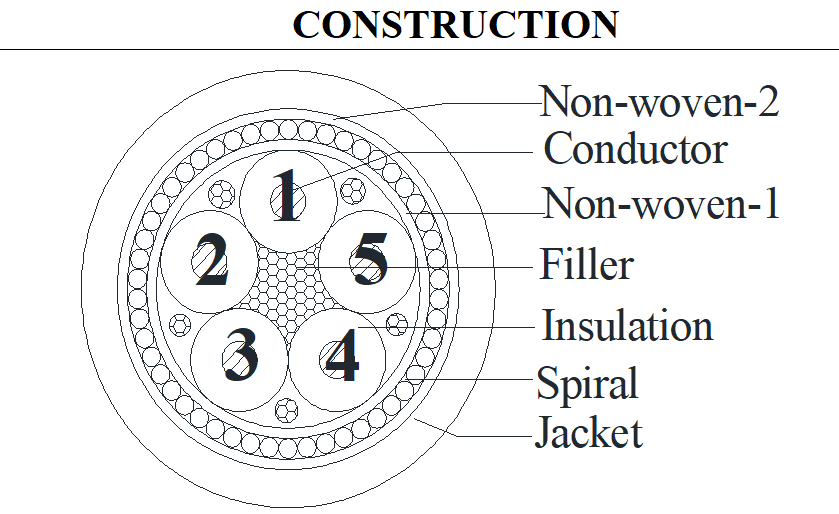

5C×24AWG(40/0.08T)+WS
CONDUCTOR Material Tinned copper stranded
Size 40/0.08±0.008mm
O.D.(Ref) 0.58mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.05±0.05mm
CABLING Filler Cotton
Material Non-woven-1
Construction 5C×24AWG(40/0.08T)+W
SPIRAL Material Tinned copper
Size 0.10mm , 90% min.
WRAP Material Non-woven-2
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 5.00±0.20mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~105℃

Voltage rating:300V

Max.conductor DC resistance(20℃):94.2Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Chain test:bending radius:50mm,60times/min.,travel 500mm,5millions cycles min.
