3C×19AWG+12C×22AWG Robot Wire and Cable UL20549 With PP Insulation / PUR Jacket
3C×19AWG+12C×22AWG Robot Wire and Cable UL20549 With PP Insulation / PUR Jacket
3C×19AWG+12C×22AWG Robot Wire and Cable UL20549 With PP Insulation / PUR Jacket
3C×19AWG+12C×22AWG Robot Wire and Cable UL20549 With PP Insulation / PUR Jacket
Specifications
Temperature :
-40~80℃
Name :
Robot Wire and Cable
Jacket :
PUR
Price :
To be negotiated
Supply Ability :
100km per day
Insulation :
PP
Conductor :
Bared Copper Stranded
Certification :
RoHS Reach
Delivery Time :
3-4 Weeks
Packing :
Packed in Rolls or Reels
Payment Terms :
T/T,L/C,Western Union
Brand Name :
Shineplus
MOQ :
1000m
Application :
Robot Manipulator
SP :
1701604
Model Number :
UL20549
Packaging Details :
Packed in rolls or reels
Voltage :
300V
Place of Origin :
China
Description

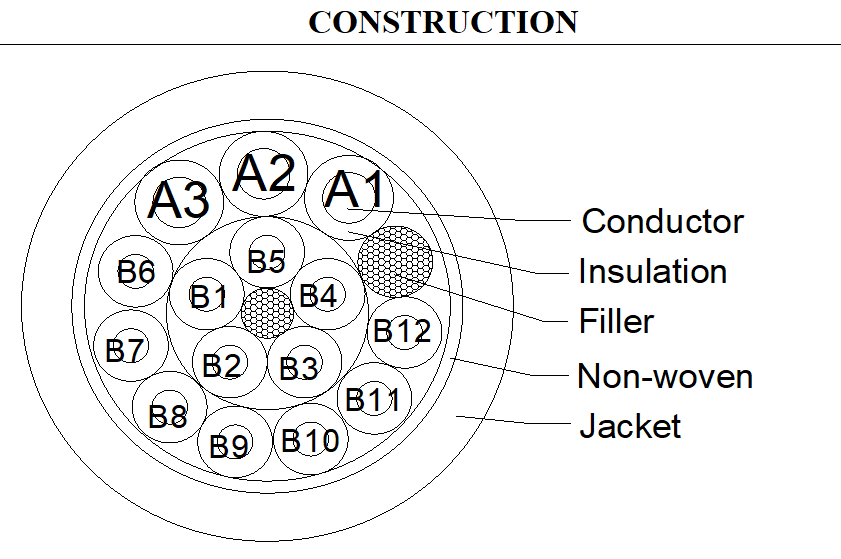

UL20549 3C×19AWG+12C×22AWG Robot Cable Bared Copper Stranded with PP Insulation and PUR Jacket

ITEM A : 3C×19AWG B:12C×22AWG
CONDUCTOR Material Bared Copper Stranded
Size 150/0.08±0.008mm 65/0.08±0.008mm
O.D.(Ref) 1.13mm 0.76mm
INSULATION Material PP PP
Min.average thickness 0.30mm 0.30mm
Min.thickness at any point 0.24mm 0.24mm
O.D. 1.90±0.10mm 1.60±0.10mm
CABLING Filler Cotton
Material Non-woven
JACKET Material PUR
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 10.00±0.40mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V

Max.conductor DC resistance(20℃): A : 27.4Ω/km B : 55.4Ω/km

Dielectric Strength AC:2.0kV/1min

Oil Resistant Condition(IRM 902): 100℃×24hrs

Tensile strength:≥60% of original

Elongation(%):≥60% of original

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Flame test: FT1, IEC 60332-1

Chain test: 20times/minute, distance:1.0m,

bending radius:100mm ≥5 million times
