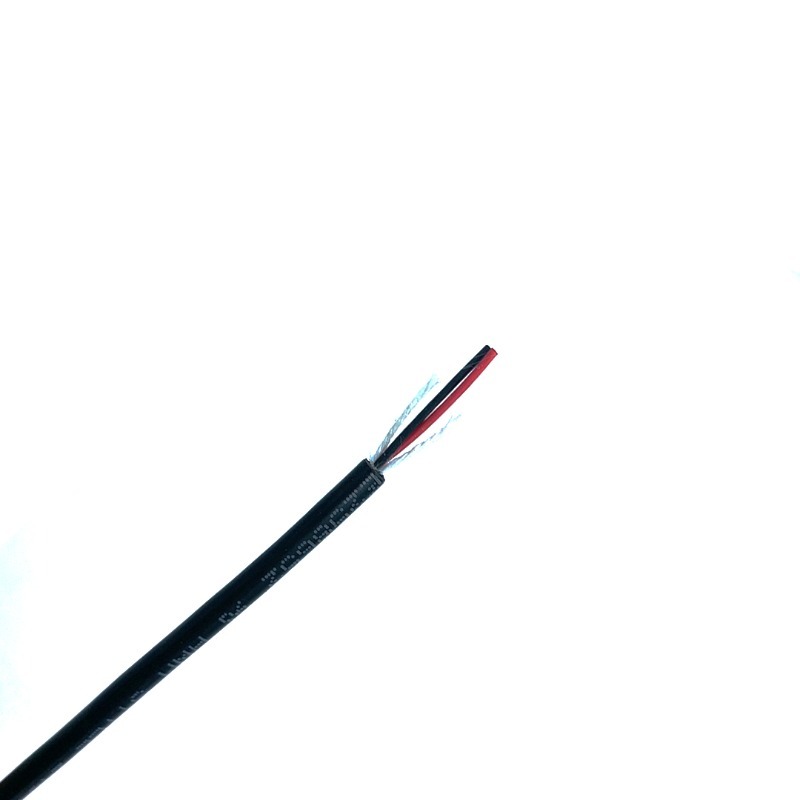

2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V
2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V
2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V
2C×0.5mm2+W Bare Copper Stranded Robot Wire and Cable 300V 500V
Specifications
Payment Terms :
T/T,L/C,Western Union
Conductor :
Bare Copper Stranded
Application :
Internal wires of industrial control equipment and robot manipulators
Name :
Robot Wire and Cable
Packing :
Packed in rolls or reels
Temperature :
-40~80℃
Packaging Details :
Packed in rolls or reels
Voltage :
300V/500V
SP :
2003813
Model Number :
NOUL
Delivery Time :
3-4 Weeks
MOQ :
1000m
Brand Name :
Shineplus
Insulation :
PVC
Place of Origin :
China
Price :
To be negotiated
Jacket :
PVC
Certification :
RoHS Reach
Supply Ability :
100km per day
Description

2C×0.5mm2+W Bare copper stranded Robot Cable with PVC Jacket and PVC Insulation

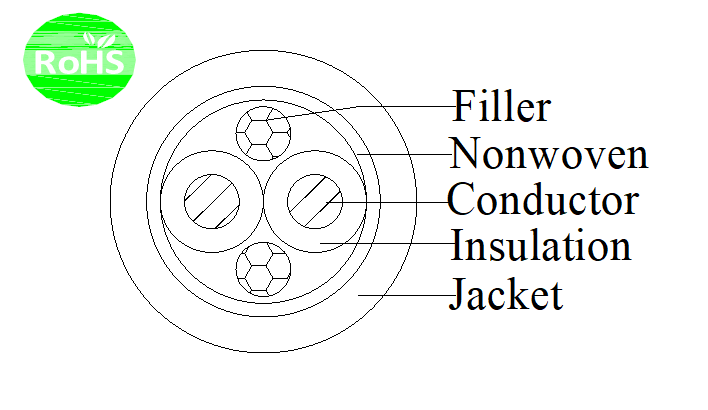

Construction
2C×0.5mm2+W
Conductor Bare copper stranded
Cross section 0.5mm2
Construction 65/0.10mm
Strand Dia. 0.93mm
Insulation PVC
Nom.Thickness 0.38mm
Min.Thickness 0.33mm
Insulation Dia. 1.80±0.10mm
Insulation colour 1~2.black printing the number of 1~2
Filler Optional
Material Nonwoven tape,25% min.
Assembly 2C×0.50mm2+W
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 5.40±0.20mm
Colour Gray Ral 7001

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strerngth applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:-40~80℃

Voltage rating:300V/500V

Max.conductor DC resistance(20℃):39Ω/km

Dielectric Strength AC:4.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Oil resistance(IRM902) Reference standard:UL758 100℃/96h

Torsion test ≧5000 cycles@≧+5℃,±150°,1rotation/min

Chain test:20times/min bending radius:15×OD ,distance:1m,≥1 million times
