300V Bare Copper Stranded Cable UL20549 3P×0.25mm2 Robot Cable
300V Bare Copper Stranded Cable UL20549 3P×0.25mm2 Robot Cable
300V Bare Copper Stranded Cable UL20549 3P×0.25mm2 Robot Cable
300V Bare Copper Stranded Cable UL20549 3P×0.25mm2 Robot Cable
Specifications
Voltage :
300V
SP :
1903428
Price :
To be negotiated
Insulation :
PP
Certification :
RoHS Reach
Supply Ability :
100km per day
Place of Origin :
China
Delivery Time :
3-4 Weeks
Conductor :
Bare Copper Stranded
Brand Name :
Shineplus
Application :
Robot Manipulator
Payment Terms :
T/T,L/C,Western Union
Temperature :
80℃
Packing :
Packed in Rolls or Reels
Model Number :
UL20549
Name :
Copper Stranded Cable
Packaging Details :
Packed in rolls or reels
MOQ :
1000m
Jacket :
TPU
Description

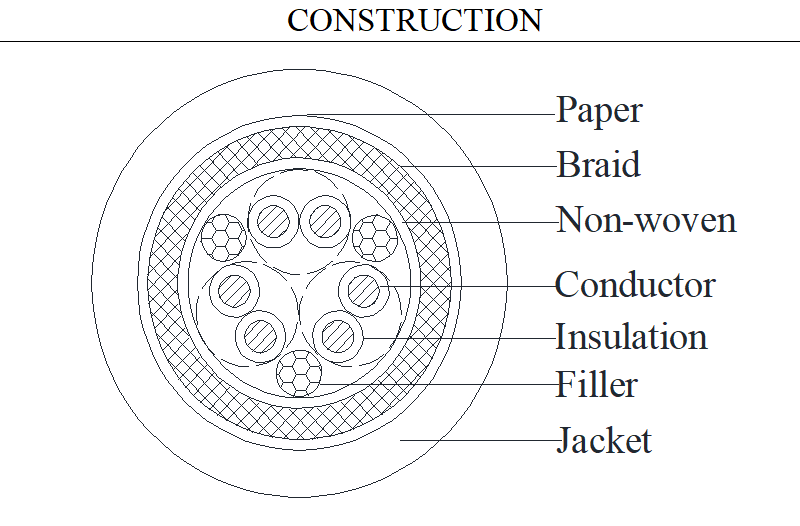

UL20549 3P×0.25mm2 Robot Cable Bare Copper Stranded with PP Insulation and TPU Jacket

CONDUCTOR Material Bare copper stranded
Size 44/0.08mm
O.D.(Ref) 0.61mm
INSULATION Material PP
Min.average thickness 0.20mm
Min.thickness at any point 0.16mm
O.D. 1.10±0.10mm
Twisted Outer Diameter 2.20mm
CABLING Filler Cotton
Material Non-woven
Braid Material Tinner copper
Size 0.10mm,≥80%
JACKET Material Paper
Material TPU
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 6.70±0.30mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):87.6Ω/km

Dielectric Strength AC:2.0kV/1min

Min. insulation Resistance at 20°C:5000MΩ*km
Min. insulation Resistance at 20°C:50000MΩ*100m(nom.)
Flame test: FT2

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Chain test: 20times/minute, distance:1.0m,bending radius:100mm , 5 million cycles
