UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V
UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V
UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V
UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Temperature :
80℃
Name :
Robot Wire and Cable
Certification :
RoHS Reach
Jacket :
PVC
Model Number :
UL2464
Insulation :
PVC
Payment Terms :
T/T,L/C,Western Union
Packing :
Packed in Rolls or Reels
Price :
To be negotiated
Application :
Robot Manipulator
Supply Ability :
100km per day
SP :
1702190
Brand Name :
Shineplus
Conductor :
Bare Copper Stranded
Packaging Details :
Packed in rolls or reels
Place of Origin :
China
Voltage :
300V
Description

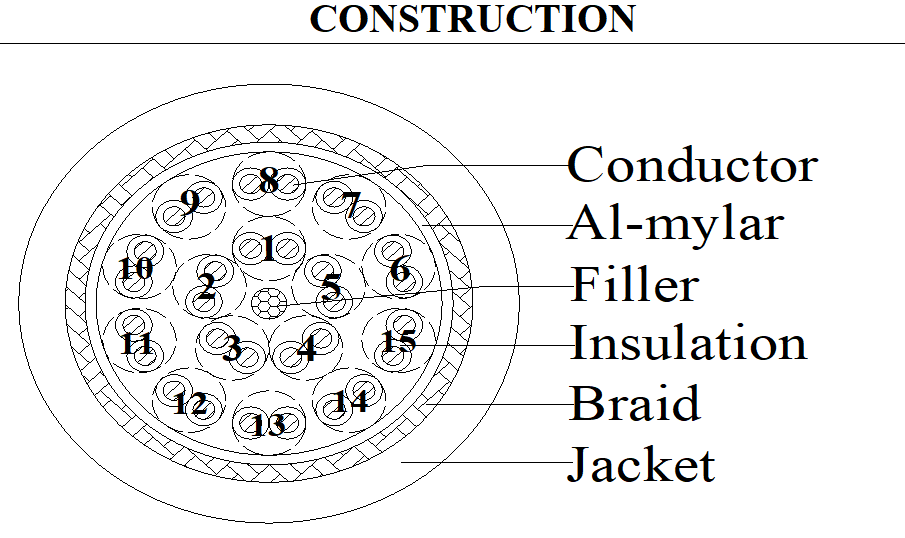

UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded with PVC Insulation and PVC Jacket 300V

ITEM 15P×0.22mm2(32/0.10B)+AB
CONDUCTOR Material Bare copper stranded
Size 32/0.10±0.008mm
O.D.(Ref) 0.65mm
INSULATION Material PVC
Min.average thickness 0.40mm
Min.thickness at any point 0.36mm
O.D. 1.45±0.08mm
TWISTED O.D.(Ref) 2.90mm
CABLING Filler cotton
Material Al-mylar(face out)
Assembly 15P×0.22mm2(32/0.10B)+A
BRAID Material Tinned copper
Size 0.12mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 13.00±0.35mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):223Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test: bending radius:75mm,20times/min,400000 cycles min

Rotation :20times/min.,torsion +/- 130° @1000mm, 400000 cycles min.
