NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded With ETFE Insulation / TPU Jacket 80℃ 30V
NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded With ETFE Insulation / TPU Jacket 80℃ 30V
NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded With ETFE Insulation / TPU Jacket 80℃ 30V
NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded With ETFE Insulation / TPU Jacket 80℃ 30V
Specifications
MOQ :
1000m
Delivery Time :
3-4 Weeks
Voltage :
300V
SP :
1903061
Certification :
RoHS Reach
Insulation :
ETFE
Model Number :
NOUL
Conductor :
Tinned Copper Alloy Stranded
Brand Name :
Shineplus
Name :
ETFE Insulation
Payment Terms :
T/T,L/C,Western Union
Application :
Robot Manipulator
Price :
To be negotiated
Temperature :
80℃
Supply Ability :
100km per day
Packing :
Packed in Rolls or Reels
Place of Origin :
China
Jacket :
TPU
Packaging Details :
Packed in rolls or reels
Description

NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded with ETFE Insulation and TPU Jacket 80℃ 30V

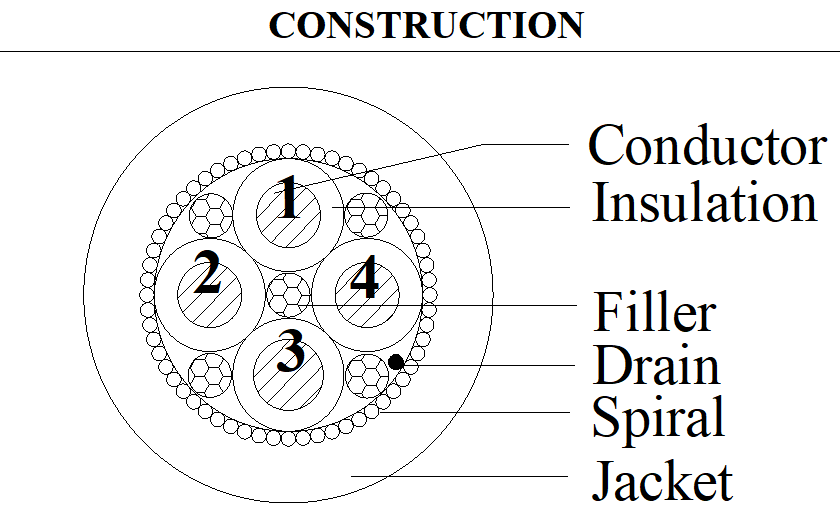

ITEM 4C×28AWG(44/0.05TCA)+ES
CONDUCTOR Material Tinned copper alloy stranded
Size 44/0.05mm
O.D.(Ref) 0.45mm
INSULATION Material ETFE
Min.average thickness 0.15mm
Min.thickness at any point 0.12mm
O.D. 0.81±0.10mm
CABLING Filler Nylon yarn
Material /
Assembly 4C×28AWG(44/0.05TCA)+ES
DRAIN Material Tinned copper stranded
Size 40/0.05mm
SPIRAL Material Tinned copper alloy
Size 0.08mm,≥90%
JACKET Material TPU
Min.average thickness 0.40mm
Min.thickness at any point 0.32mm
O.D. 3.20±0.15mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:80℃

Voltage rating:30V

Max.conductor DC resistance(20℃):360Ω/km

Dielectric Strength AC:1.0kV/1min

Min. insulation resistance(20℃):10MΩ·km

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Chain test: 12 times/min., distance:500mm,

bending radius : 100mm, ≥20million times

NOUL 4C×28AWG Robot Cable Tinned Copper Alloy Stranded With ETFE Insulation / TPU Jacket 80℃ 30V
