IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Specifications
Outline :
118.5×84.7×5.2 mm
Payment Terms :
T/T
Supply Ability :
5K/month
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Model Number :
PC173H
Name :
Industrial Panel PC
Brand Name :
XXT
Packaging Details :
590×445×100mm(5.7KG)
Color Gamut :
72 % of NTSC(Typ.)
MOQ :
300
Price :
$248-288/pieces
Place of Origin :
Guangdong, China
Drive System :
a-Si TFT active matrix
Delivery Time :
15 work days
Description
PC173H 17.3 Inch H Type Industrial Panel PC with IP65 Fanless Design and Wide Temperature Range for HMI Applications
Product Overview

PC173H 17.3 Inch H Type Industrial Panel PC - Embedded Touch IP65 Fanless HMI Industrial Computer designed for robust performance in demanding industrial environments.

IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Key Features
Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC)
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available
24/7 Operation: Designed for continuous use with robust performance and long service life

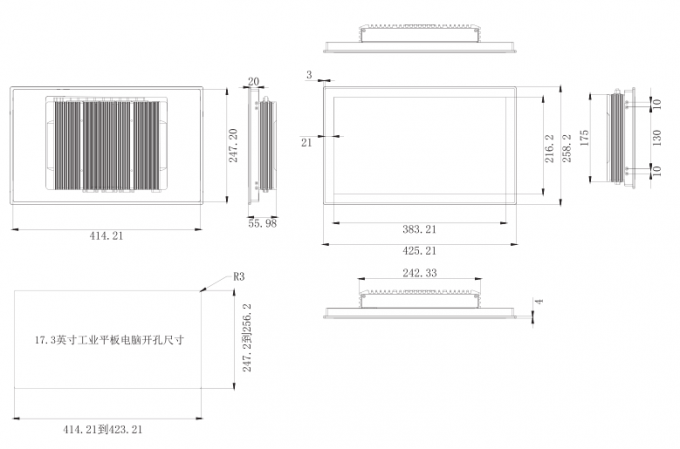

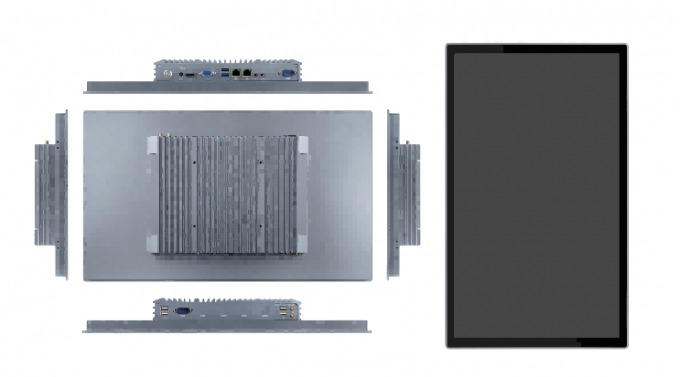

Product Views & Dimensions
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Interface Configuration
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Technical Specifications
  • CPU: J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
  • Memory: 4G/8G/16G/32G/64G
  • Storage: 64G/128G/256G/512G/1TB/2TB
  • Touch Type: Multi-point Capacitive / 5-Wire Resistive
  • Touch Driver Support: Windows 7/8/10, Linux, Android
  • LCD Display: 17.3" XGA TFT (1024*768)
  • Active Area: 383.21mm*216.2mm
  • Viewing Angle: 89° (L/R/T/B)
  • Brightness: 350 cd/m²
  • I/O Interfaces: 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
  • Dimensions: 425.21*258.2*55.98mm
  • Power Input: DC 12V (9-30V optional)
  • Operating Temp: -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods
Embedded Snap-In Mounting
  1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
  2. Tighten the long screws and nuts onto the snap fasteners.
  3. Four clips are fixed at the threaded hole positions on both sides.
  4. Tighten the long screws to secure the equipment in place.
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Desktop Mounting
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Cantilever Mounting
IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications
Packing List
No. Item QTY
1 Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
