Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Specifications
Outline :
118.5×84.7×5.2 mm
MOQ :
300
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Delivery Time :
15 work days
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Price :
$214-232/pieces
Payment Terms :
T/T
Response Time :
6ms
Display Color :
Monochrome Black and White
Brand Name :
XXT
Operating_Temperature :
-20°C to 70°C
Place of Origin :
GuangDong, China
Supply Ability :
5K/month
Model Number :
PC133M
Color Gamut :
72 % of NTSC(Typ.)
Packaging Details :
460 ×445 × 100mm/4.2KG
Drive System :
a-Si TFT active matrix
Name :
Industrial Computer Monitor
Viewing Area :
116.2mm×87.1mm
Description
PC133M 13.3 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC
Product Overview

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

Place of Origin Guangdong, China
Brand Name XXT
Certification CE/Rohs
Model Number PC133M
Document PC133M Datasheet.pdf
Type Industrial Computer
Display Size 13.3 Inch
Supplier Type Factory
Mounting Type Embedded
Packing Dimensions 460 * 445 * 100mm
Net Weight 3.6KG
Gross Weight 4.2KG
Key Design Features
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

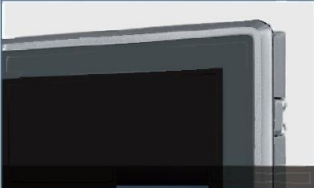

Thickened Frame Design
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

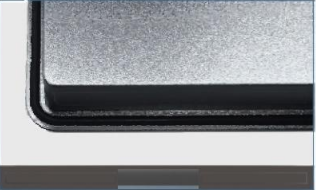

Waterproof Trough Design
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

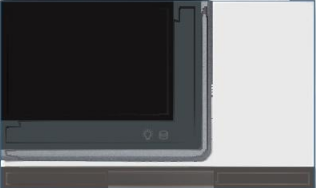

Pre-installed Hidden Indicator Light
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

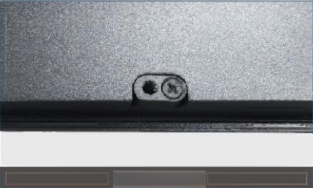

Integrated Molding Snap-on Connector
Product Features
  • Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
  • Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
  • Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
  • Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
  • Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
  • Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
  • I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
  • Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
  • Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
  • 24/7 Operation: Designed for continuous use with robust performance and long service life.
Product Views & Dimensions
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

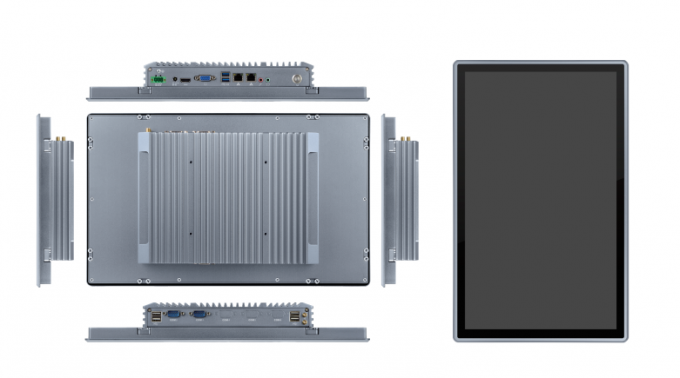

Product Six Views
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

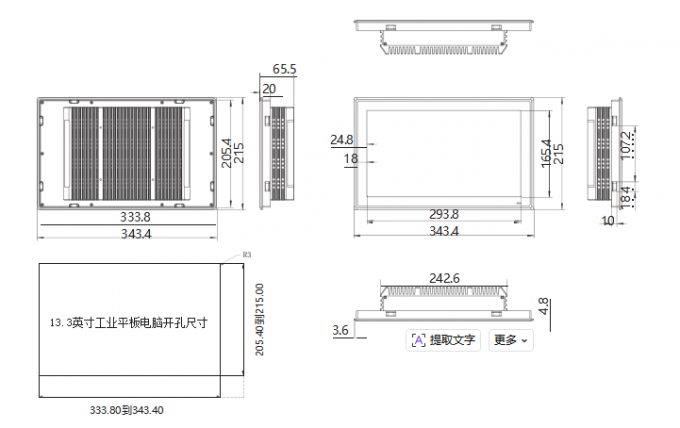

Product Dimensions
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

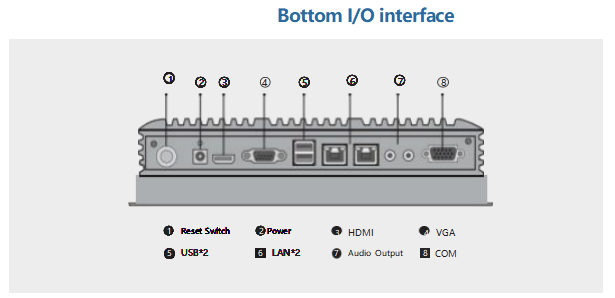

I/O Interface Configuration
Technical Specifications
CPU J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory 4G/8G/16G/32G/64G
Storage 64G/128G/256G/512G/1TB/2TB
Touch Type Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support Windows 7/8/10, Linux, Android
LCD Display 13.3" XGA TFT (1280*800)
Active Area 293.8mm * 165.4mm
Viewing Angle 89° (L/R/T/B)
Brightness 350 cd/m²
I/O Interfaces 2*RJ-45, 2*USB3.0, 2*USB2.0, 1*RS232/485, 5*RS232, Mini-PCIe slot
Dimensions 335.80 * 207.40 * 55.98mm
Power Input DC 12V (9-30V optional)
Operating Temperature -20°C to 60°C (expandable to -40°C to 80°C)
Installation Methods

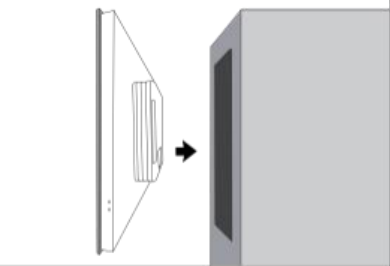

Embedded Snap-In Mounting
1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
2. Tighten the long screws and nuts onto the snap fasteners.
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
3. Four clips are fixed at the threaded hole positions on both sides.
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
4. Tighten the long screws to secure the equipment in place.
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

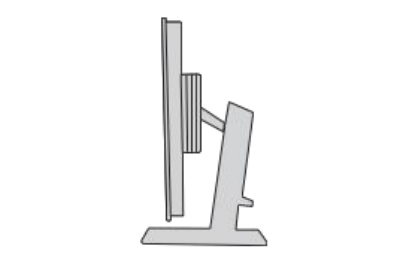

Desktop Mounting
Robust Industrial Computer Monitor 13.3 Inch Embedded Touch Panel PC

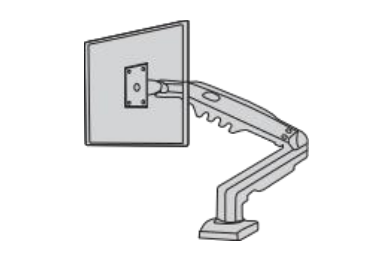

Cantilever Mounting
Packing List
No. Item QTY
1 13.3 Inch Industrial Panel PC 1 unit
2 Power Adapter 1 unit
3 3-pin 5.08 Power Terminal Plug (optional) 1 unit
4 Embedded Snap-In Kit (optional) 1 set
5 Wall-Mount Bracket (Optional) 1 unit
6 Certificate of Conformity 1 sheet
7 Warranty Card 1 sheet
8 User Manual 1 copy
Ordering Information
No. Name Description
1 Ethernet Port Default single port; optional dual or quad ports
2 Serial Port Default 2 * RS232; optional 6 * RS232/RS485
3 USB Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4 GPIO Optional 4 input / 4 output
Safety Warnings
  • This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
  • Do not place in humid environments to prevent condensation and component damage.
  • Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
  • Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
  • Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
